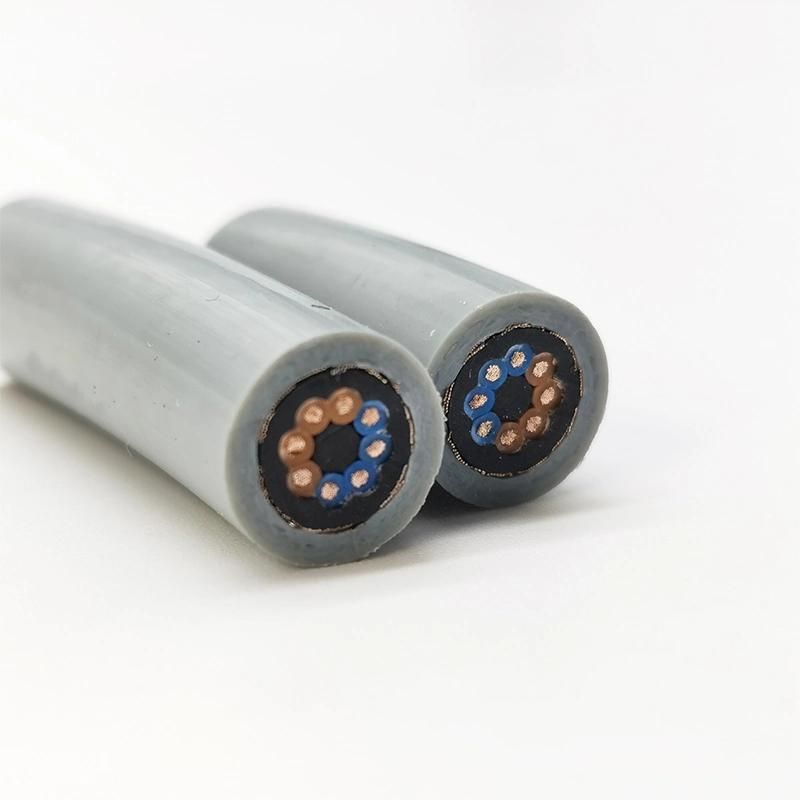

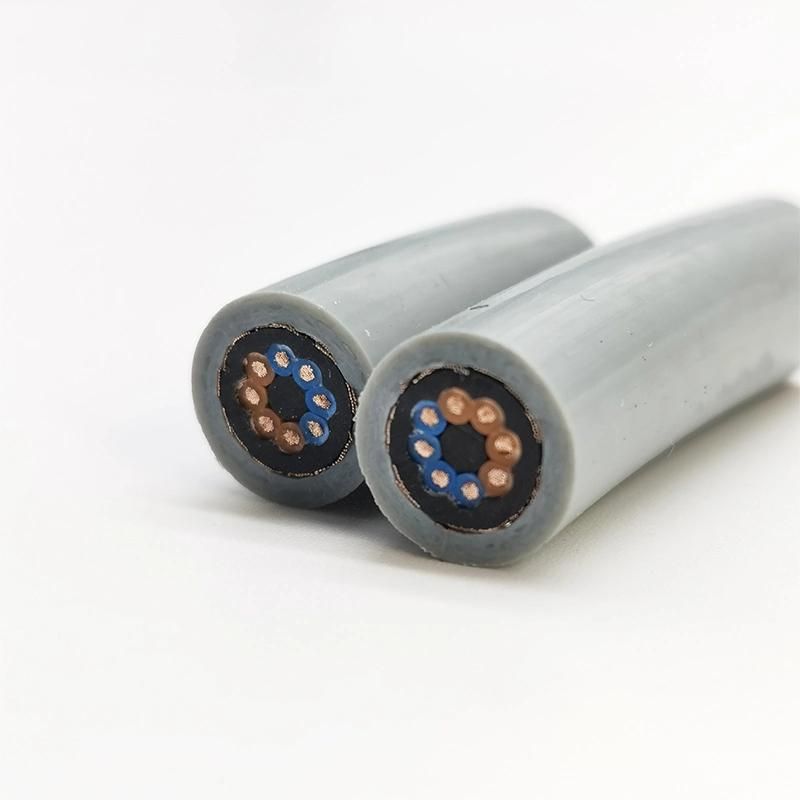

CE Certified 05vvc4V5-K PVC Connection Cable Helukabel Alternative

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：05VVC4V5-K
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item05VVC4V5-K PVC Connection Cable ConductorCopper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5InsulationPVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)Outer SheathOil-resistant special PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM5)Nominal voltageAC U0/U 300/500 VTest voltage core/core2000 VTest voltage core/screen2000 VBreakdown voltage4000 VTemperature RangeFlexible -5°C to +70°C
Fixed -40°C to +70°CColorOptionalCertificationCE

Properties

· Resistant to: oil· The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquersApplicationUsed for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use as a connection cable in machine and machine tool construction, assembly lines, conveyers and production lines. Even various chemical compounds cannot harm the cable. As a cable suitable for damp rooms, it is also preferred for the operation of machines in breweries, bottling plants and car washes.
