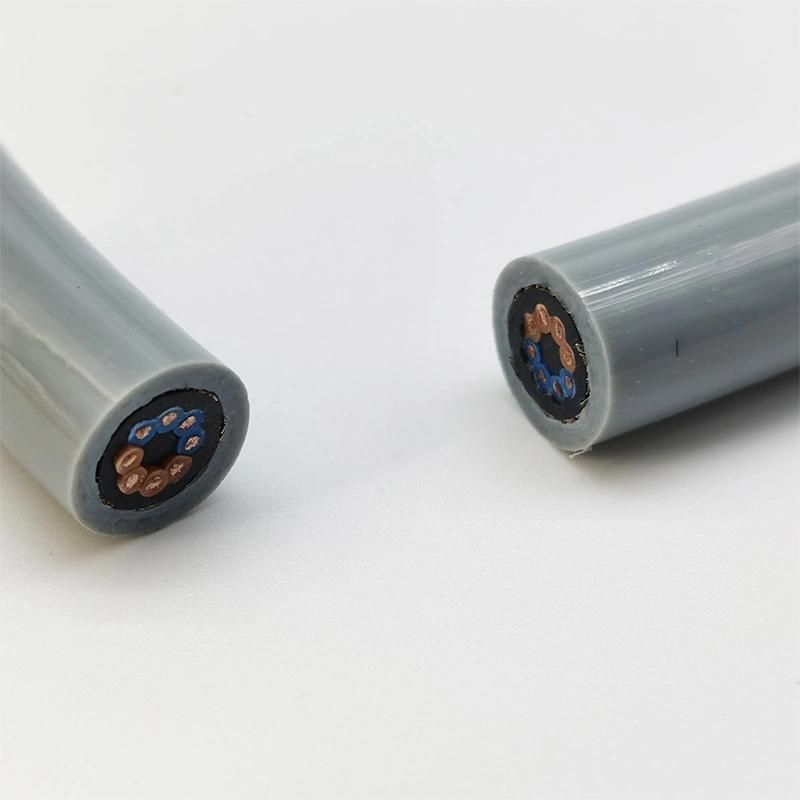

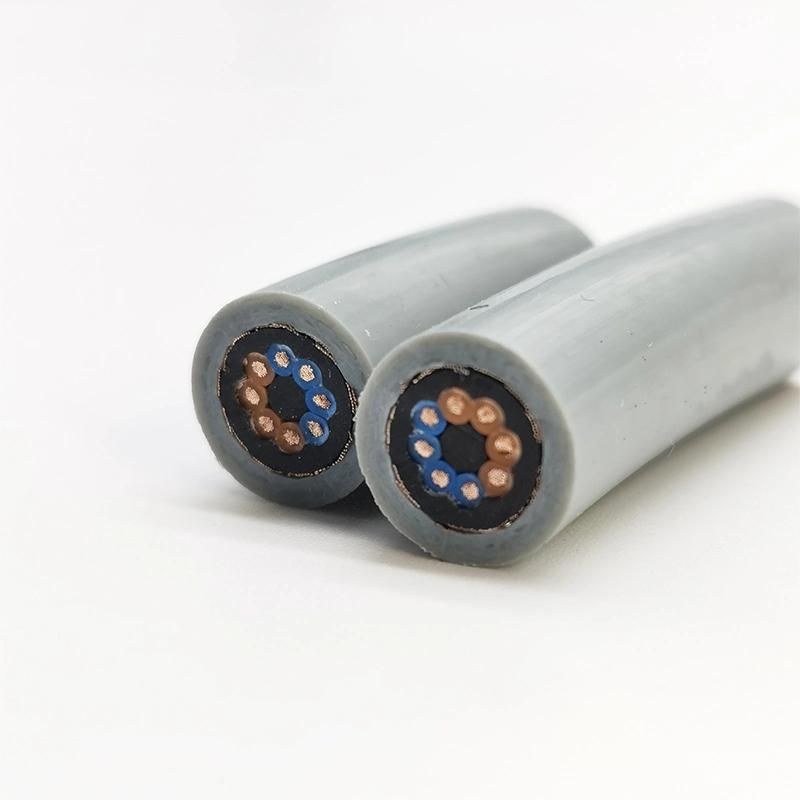

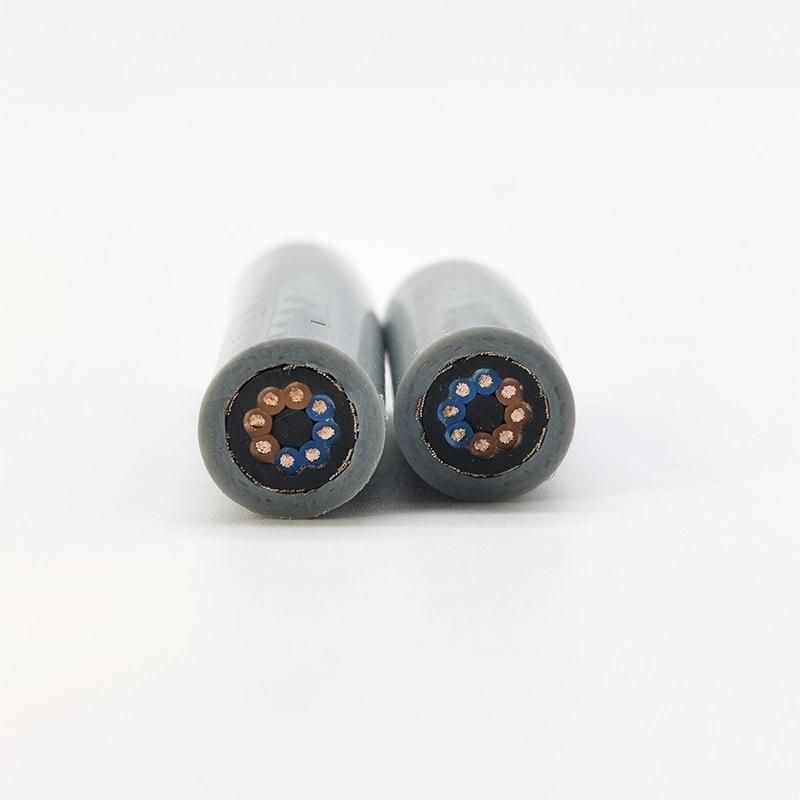

Helukabel Alternative Jz-602-RC-C-PUR PUR Drag Chain Cable 600 V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：JZ-602-RC-C-PUR
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemJZ-602-RC-C-PUR PUR Drag Chain CableConductorCopper wire bare, extra finely stranded acc. to DIN VDE 0295 Class 6 / IEC 60228 Class 6InsulationSpecial-PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2), UL-Std. 1581WrippingFleeceScreenBraided screen of tinned copper wires, approx. coverage 85%Inner SheathPVCOuter SheathSpecial grade of full polyurethane acc. to DIN VDE 0207-363-10-2 / DIN EN 50363-10-2 (compound type TMPU)Nominal voltageUL (AWM) AC 600 VTest voltage core/core4000 VBreakdown voltage8000 VTemperature RangeFlexible -5°C to +80°C
Fixed -40°C to +80°CColorOptionalCertificationCE

Properties


·Resistant to: oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater·Highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion·For outdoor use
·Suitable for use in drag chains·The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquersApplicationFor installation in dry, damp and wet rooms, as well as outdoors with free movement, without tensile stress and without forced motion control. Suitable for frequent lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. Due to the high screening density, interference-free transmission of signals or pulses is ensured.
