• Model NO.：drop cable
• Fiber Color：Blue, Orange, Green, Brown
• Operation Temperature：-20~+60
• Messenger：Steel Wire
• Number of Conductors：1
• Fiber Type：9,125 (G657A2)
• Material of Jacket：MDPE,HDPE
• Fiber Optic Cable Tube：Central Loose Tube
• Transport Package：Standard Export Package
• Trademark：Softel
• Origin：Hangzhou, Zhejiang, China
• HS Code：85176229

Item

Technology parameter

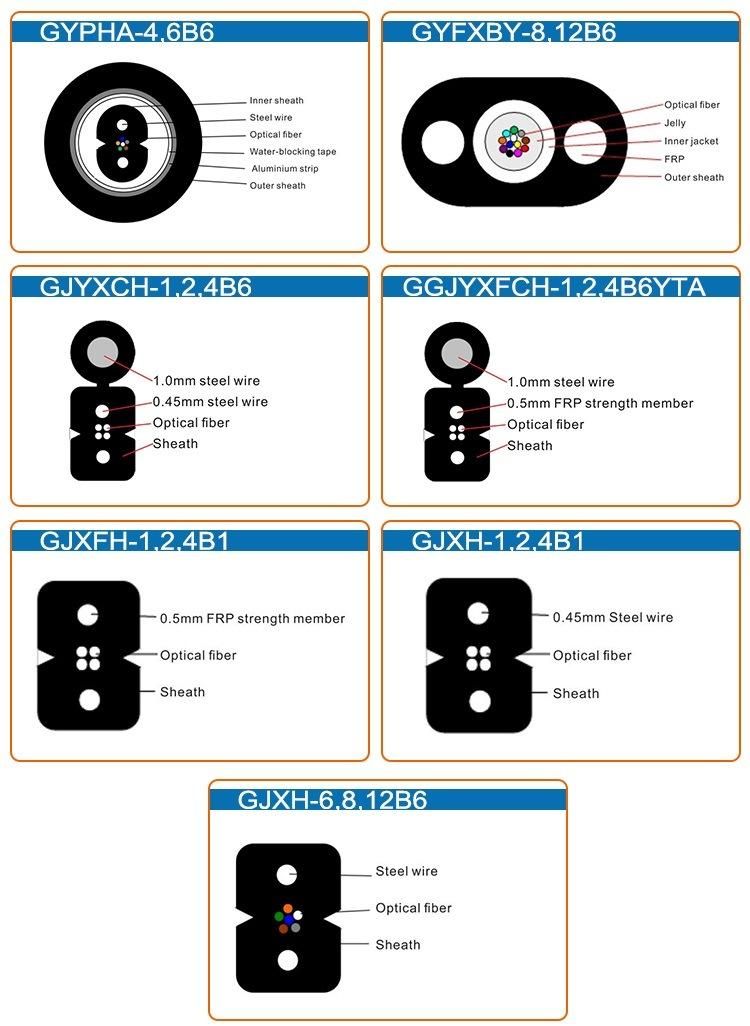

Cable type

GJYXCH-1B6

GJYXCH-2B6

GJYXCH-4B6

Cable specification

5.2×2.0

Fiber type

9/125 (G.657A2)

Fiber counts

1

2

4

Fiber color

Red

Blue, orange

Blue, orange, green, brown

Sheath color

Black

Sheath material

LSZH

Cable dimension   mm

5.2(±0.2)*2.0(±0.2)

Cable weight   Kg/km

Approx. 19.5

Min. bending radius mm

120

Min. bending radius mm

(Excluding messenger wire)

10 (Static)

25 (Dynamic)

Attenuation   dB/km

≤ 0.4 at 1310nm, ≤0.3 at 1550nm

Short term tensile   N

600

Long term tensile   N

300

Short term crush N/100mm

2200

Long term crush N/100mm

1100

Operation temperature   ºC

-20~+60
