• Model NO.：SFTP Cat5e
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：SFTP Cat5e
• Brand：Risun or OEM
• Insulation Material：HDPE
• Ripcord：500d
• No.of Conductor：8 Core, 4pairs
• Color：Gery, White or According Customer Requirement
• Drain Wire：26 AWG Tinner Copper
• UV：Available
• Waterproof：Available
• Frame Returdant：Available
• Conduct Material：Bare Copper

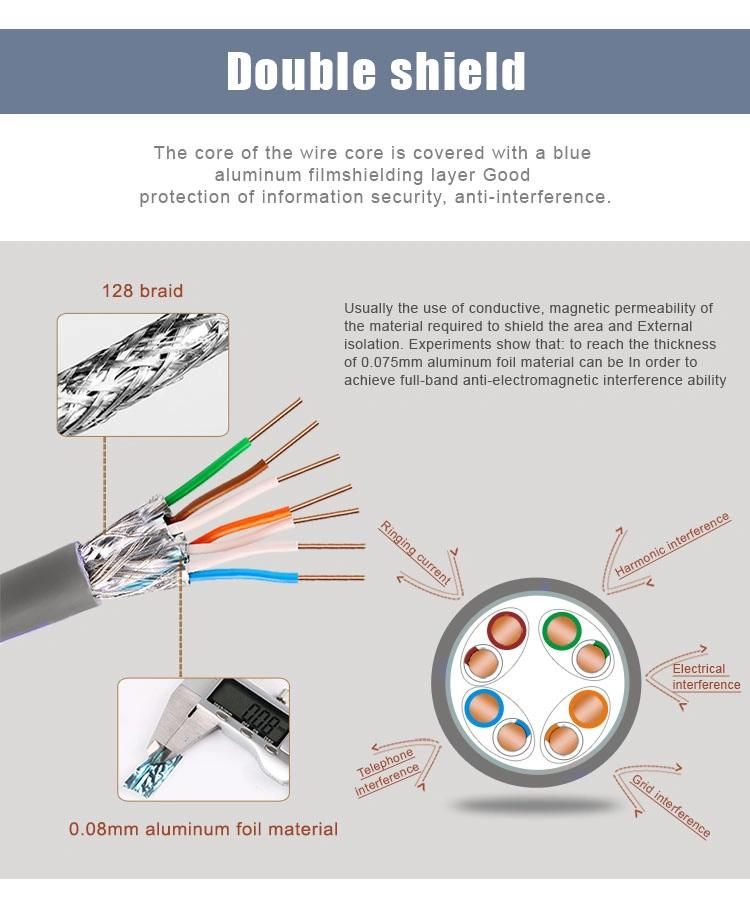

• 1st Shield Material：Polyester Tape+Aluminum Foil

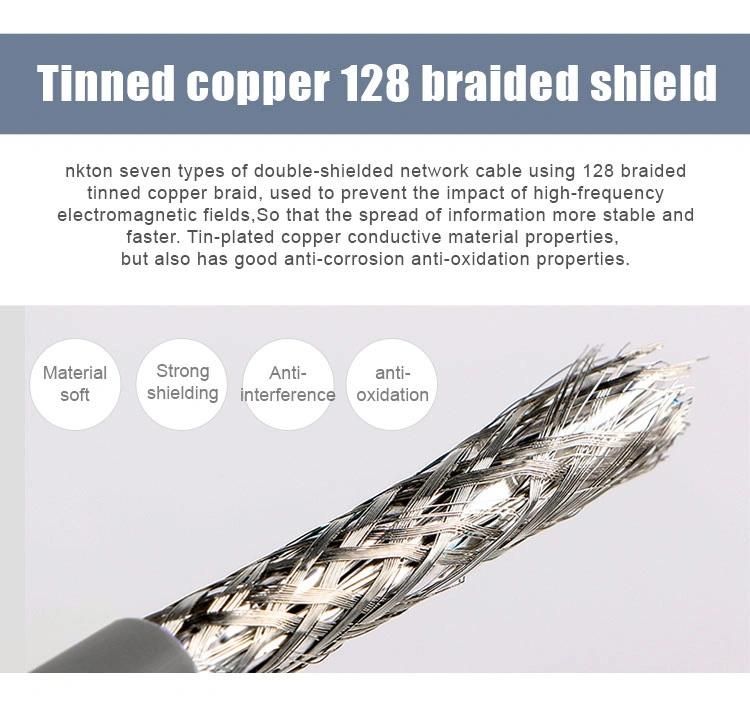

• 2ND Shield Material：40% Tinner Copper
• Sheath Material：PVC,PE,LSZH
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：CE, ISO, RoHS, ETL SGS CPR ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

SFTP CAT5E solidConductor Size24AWGConductor MaterialSolid Bare CopperInsulation MaterialHigh Density Polyethylene (HDPE)Insulation Diameter1.00 ± 0.03mmNumber of Conductors8 ConductorsNumber of Pairs4 PairsOuter Shield MaterialAluminum FoilBraid ShieldingTinned Copper 0.10mmDrain WireYesOuter Jacket MaterialPVC,PE,LSZHOuter Jacket Diameter6.8mm ± 0.5mmOuter Jacket Rip CordYesPackage305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.ApplicationEthernet cables and telephone wires in the computer and telecommunications industry
Electrical Performance:Nominal Mutual CapacitanceN/ANominal Velocity of PropagationN/AMaximum Delay538 @ 100MHz (ns/100m)538 @ 100MHz (ns/100m)≤ 45 (ns/100m)Maximum Conductor DC Resistance5.0 (@ 20°C OHm/100m)Maximum Operating Voltage - ULN/AMaximum DCR Unbalanced9.5 (@ 20°C)Attenuation (Maximum)32.0dB/100m (328.1ft.) @ 100MHz
63.13dB/100m (328.1ft.) @ 350MHz1.0 - 100MHz Impedance100Ω ± 15%NEXT (Minimum)35.3dB/100m (328.1ft.) @ 100MHz
27.1dB/100m (328.1ft.) @ 350MHzPS-NEXT (Minimum)32.3dB/100m (328.1ft.) @ 100MHz
24.1dB/100m (328.1ft.) @ 350MHzReturn Loss (Minimum)20.1dB/100m (328.1ft.) @ 100MHz
14.3dB/100m (328.1ft.) @ 350MHz

Pair Color Code Chart:Pair 1White/Blue Stripe & BluePair 2White/Orange Stripe & OrangePair 3White/Green Stripe & GreenPair 4White/Brown Stripe & Brown

White/Brown Stripe & Brown:Storage Temperature Range -20°C to +50°CInstallation Temperature Range-30°C to +50°COperating Temperature Range-20°C to +50°CBulk Cable Weight34lbs. / 1000FTMax. Recommended Pulling Tension75lbs.Min. Bend Radius/Minor Axis1.320 in.Min. Bend/InstallationN/ATest ObjectJacketTest MaterialPVCBefore Tensile Strength≥10.0Aging Elongation≥350Aging Condition100°C x 24hrs x 10DaysAfter Tensile StrengthN/AAging Elongation≥300Cold BendNo Visible Cracks (-40°C ± 2°C x 4h)
Details Images:








Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.



Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
