Cable & Wire

Home > Product > Communication Cable

Cat. 6 U/UTP, 4p, 250 MHz, LSZH, Dca Network Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable, Network Cable Ethernet Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：LSZH
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：Network Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CCC, ETL,CPR
  • Model：UTP CAT6 Network Cable
  • Brand：Risun or OEM
  • Insulation：HDPE
  • Inner Conductor：23 AWG
  • Transport Package：305m,Pull Box, 2box,Carton
  • Origin：Hangzhou, Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

Basic Info.

Model NO. Network Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model UTP CAT6 Network Cable Brand Risun or OEM Insulation HDPE Inner Conductor 23 AWG Transport Package 305m/Pull Box, 2box/Carton Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

Cat. 6 U/UTP, 4p, 250 MHz, LSZH, Dca Network Cable
construction:
conductor23awg (solid or strand) cu/cca/ccs
insulationHDPE 1.04±0.02mm
sheath6.2±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs8/4

mechanical properties:
elongationmin. 300%
temperature range-20 up to +75° c
tensile strengthmin 1.68kg/mm²

electrical properties:
resistancemax. 9.38 ohm/100m
resistance unbalancemax. 2%
insulation resistance150 ohm/km
mutual capacitancemax. 5600pf/100m
capacitance unbalancemax. 330pf/100m
impedance100+/-15 ohm
spark test2000v
velocity of propagation67%

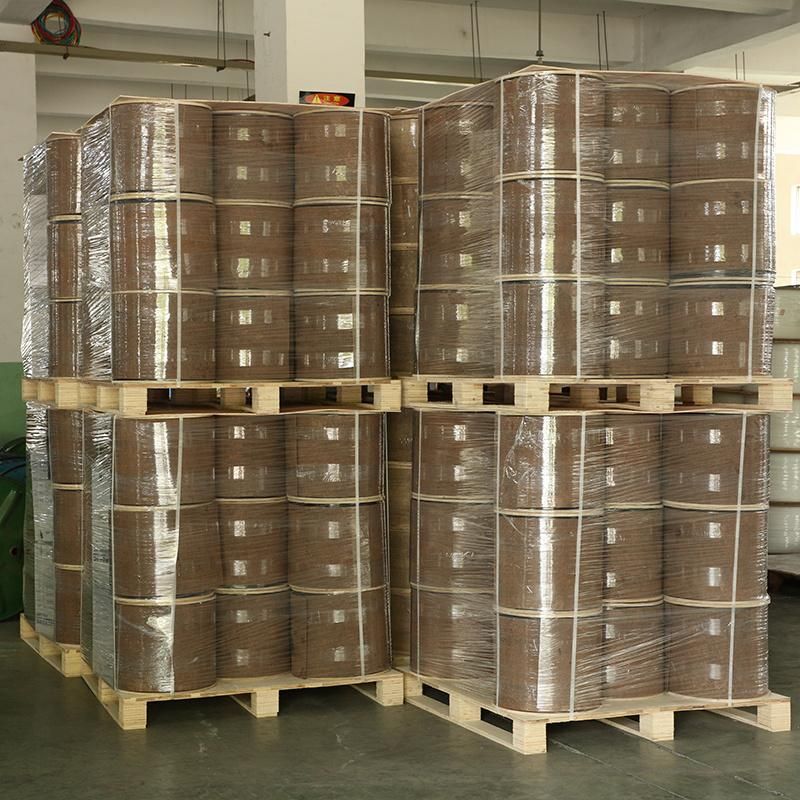

 Packing

1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

Cat. 6 U/UTP, 4p, 250 MHz, LSZH, Dca Network Cable

Cat. 6 U/UTP, 4p, 250 MHz, LSZH, Dca Network Cable

Cat. 6 U/UTP, 4p, 250 MHz, LSZH, Dca Network Cable

Company Profile

RISUN is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.

in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
Cat. 6 U/UTP, 4p, 250 MHz, LSZH, Dca Network Cable

process of production: Cat. 6 U/UTP, 4p, 250 MHz, LSZH, Dca Network Cable
Welcome to RISUN,we will be happy to serve you!
