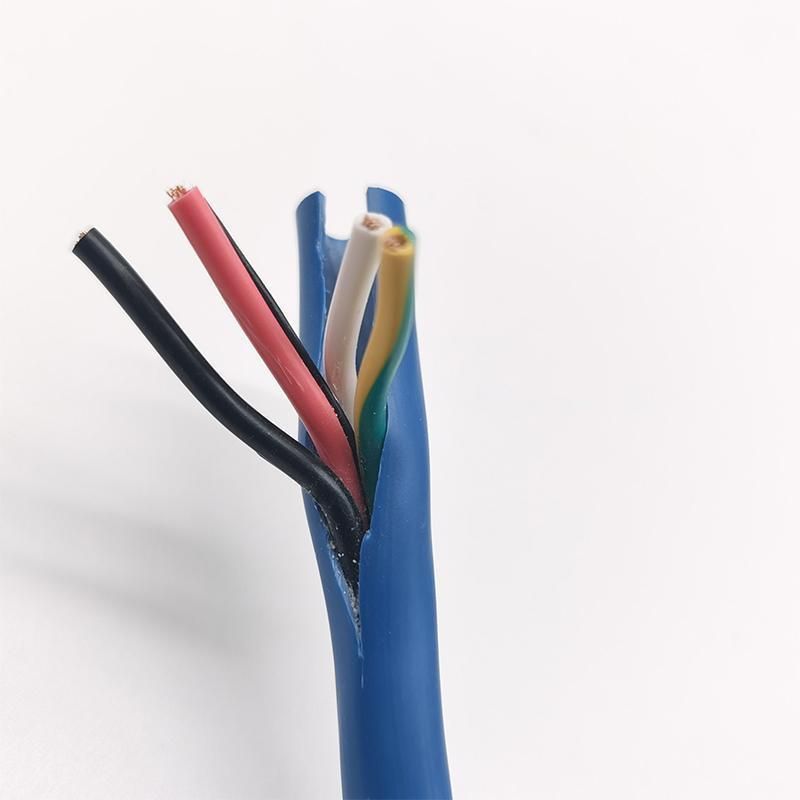

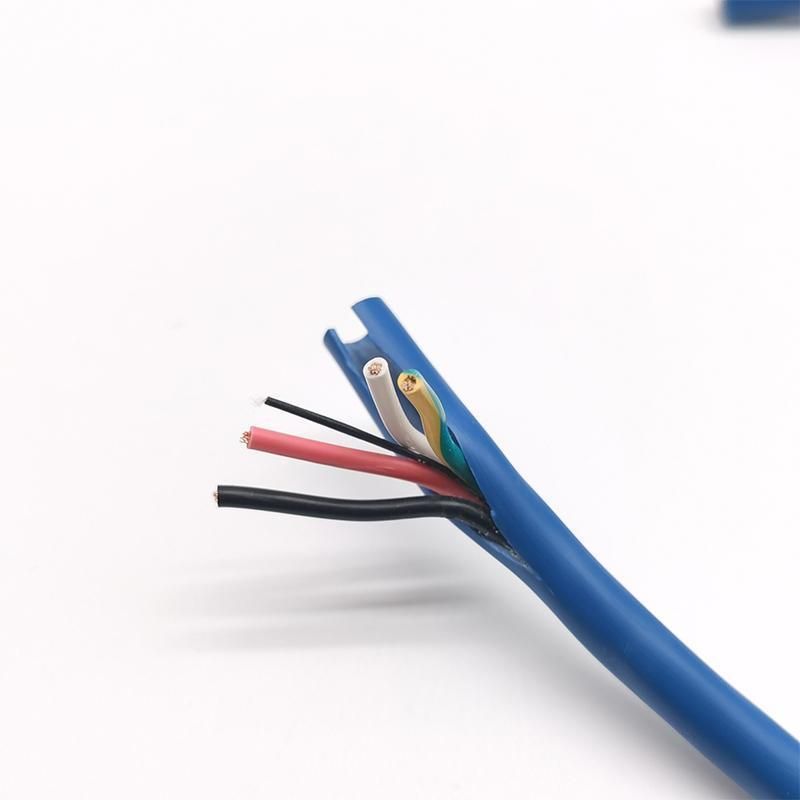

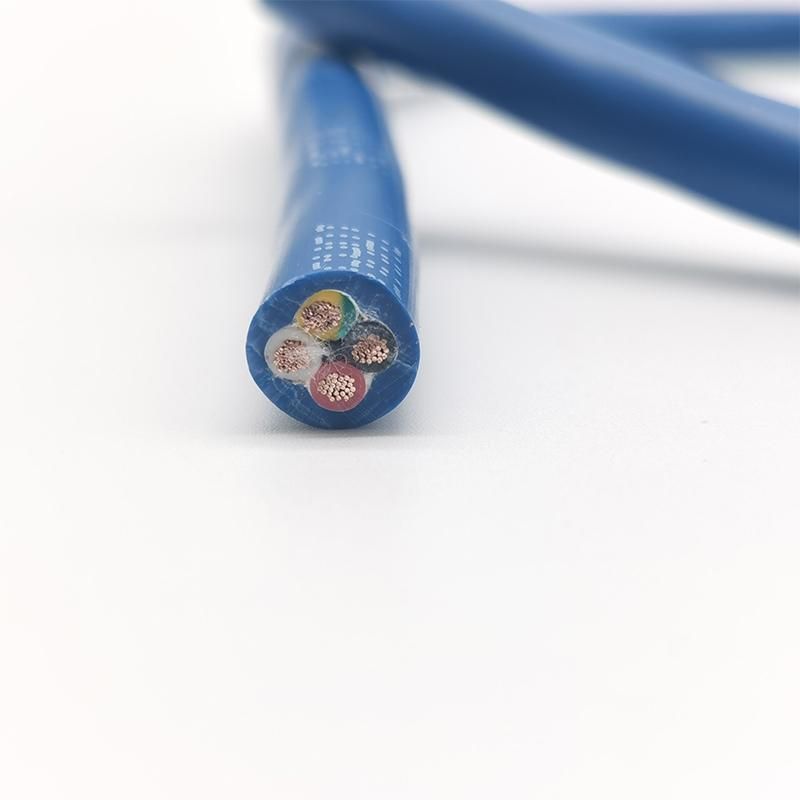

2ysl (St) Cy-J Cable 0, 6/1 Kv for Drive Systems with Frequency Converter Techno-Logy

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：2YSL(St)CY-J Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item2YSL(St)CY-J Cable ConductorCopper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5InsulationPEScreenTinned copper braid shield, weave density of greater than 85%Outer sheathPVCCore NumberMulticores (As client's requirement)Rated voltageUo/U: 600/1000 VTest Voltage4000VTemperatureoperat. temp. fixed min/max -40 °C / +80 °C
operat. temp. moved min/max -5 °C / +70 °CColorOptionalApplicationPower, control and connecting cable for drive systems with frequency converter technology, for fixed laying and casually movement without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use (black colour), but no laying underground.
