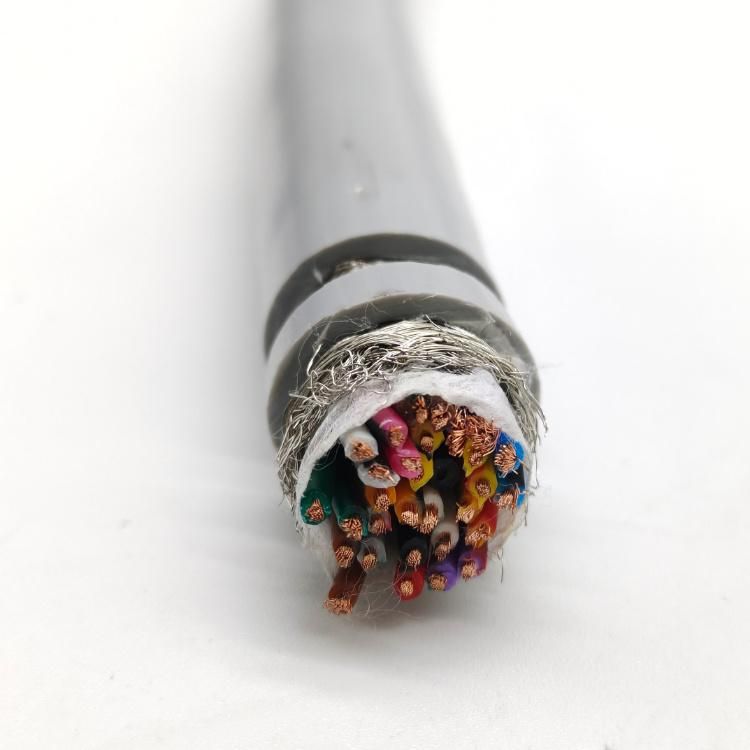

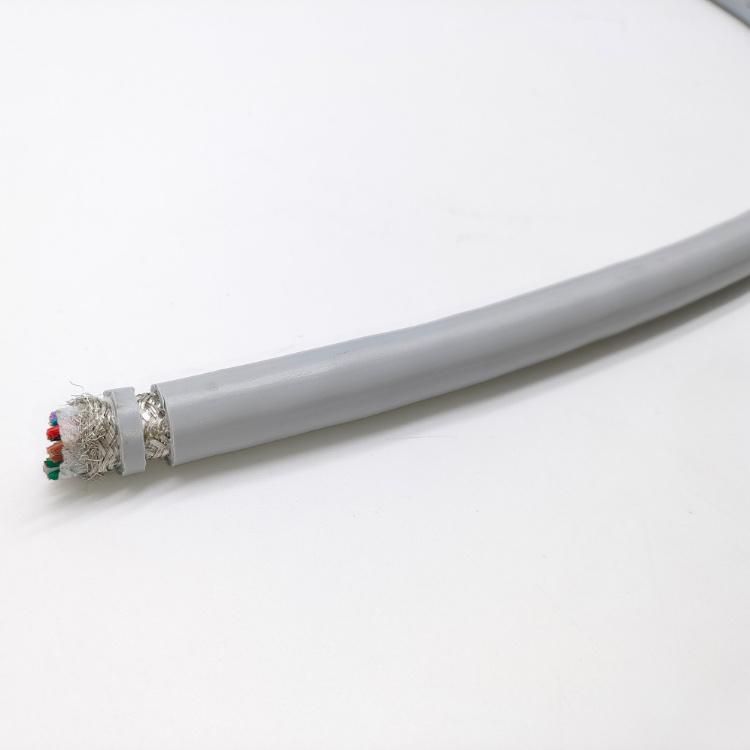

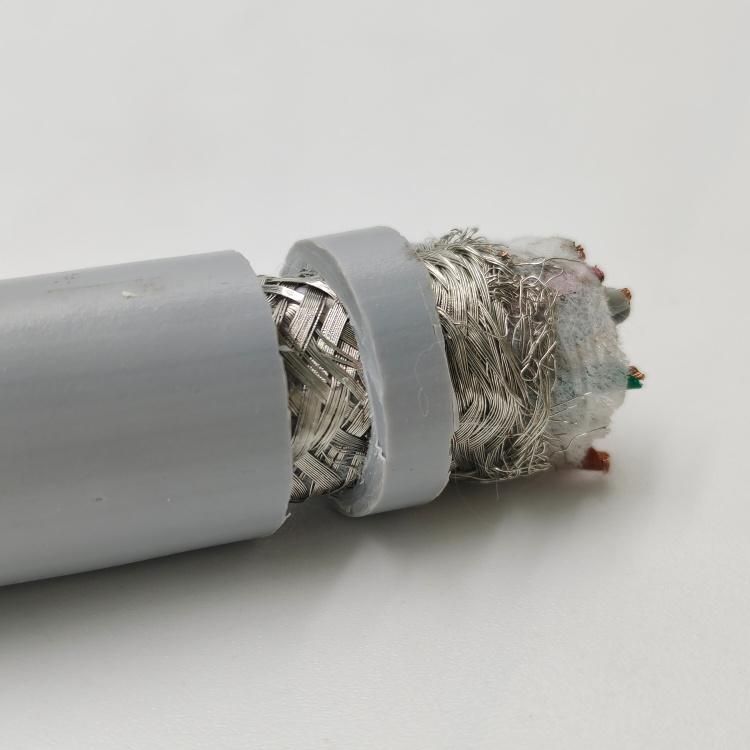

Oz-Cy Cable Tkd Alternative Cable Highly Flexible Cable 2X0.5 2X1.5 3G0.5 4G1.5mm

Shanghai Aein Wire & Cable Co., Ltd.

Type：Insulated
Conductor Type：Stranded
Conductor Material：Copper
Sheath Material：PVC
Insulation Material：PVC
Material Shape：Round Wire

Base Info

Model NO.：OZ-CY Cable
Range of Application：Electrical Facilities
Certification：ISO9001, CE, UL, RoHS
Brand：Aein
Transport Package：Optional
Specification：Multicore
Trademark：AEIN
Origin：Shanghai
HS Code：8544492100

Description

ItemOZ-CY Cable ConductorCopper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5InsulationPVCScreenTinned copper braid shield, weave density of greater than 85%Outer sheathPVCCore NumberMulticores (As client's requirement)Rated voltageUo/U: 300/500VTest Voltage2000VTemperatureoperat. temp. fixed min/max -40 °C / +80 °C
operat. temp. moved min/max -15 °C / +70 °CColorOptionalApplicationpower, control and connecting cable in electrical facilities for lossless data and signal transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection, no laying underground.
