Coaxial Cable Trunk Cable 412jca

ZHEJIANG LIBO INDUSTRIAL CO., LTD.
  • Application：Coaxial Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PE
  • Type：CATV Coaxial Cable
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：412
  • Wire Core Material：Steel
  • Certification：CE, ISO, ETL
  • Model：Rg412
  • Brand：Libo
  • Seamless Tube：Yes

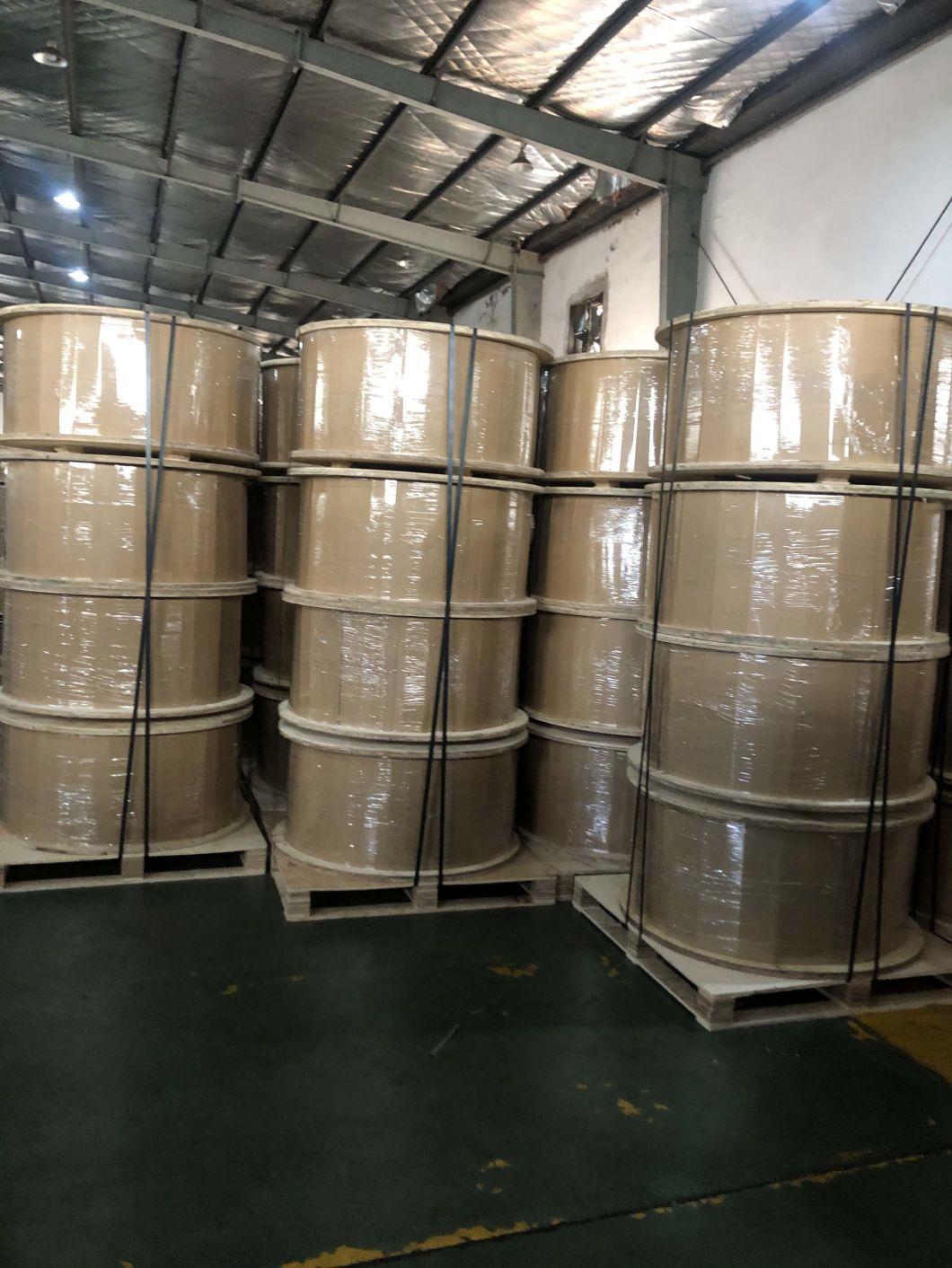

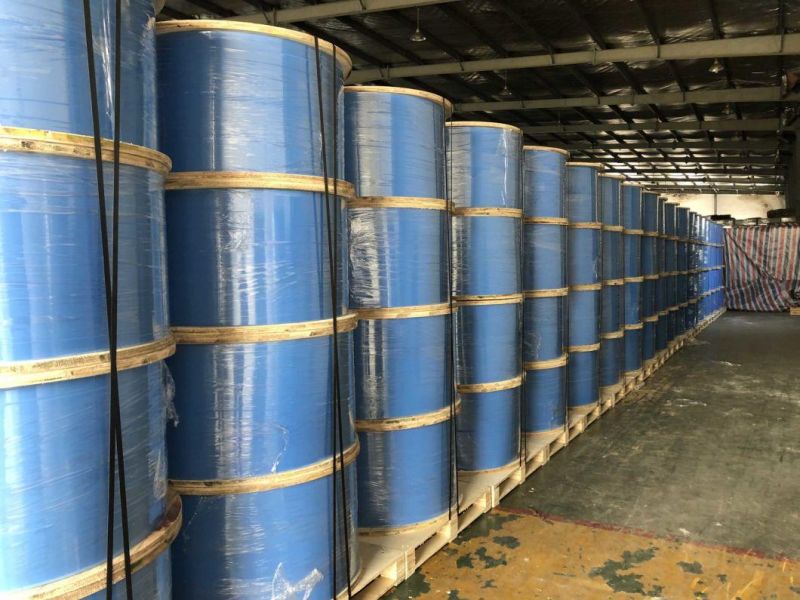

  • Transport Package：500m,Drum or 750m,Drum or Others
  • Specification：PIII 412JCA
  • Trademark：LIBO or OEM
  • Origin：China
  • HS Code：854420000
  • Production Capacity：1000km Per Month

Description

Coaxial Cable Trunk Cable 412jcaSeamless Aluminum Tube  Trunk Cable 412JCA  Distribution Cable For CATV Networks

Quick Details:



  • Physical dimensions

                          component

                   inches

                  mm

    Inner conductor

    0.089

    2.26

    Diameter over dielectric

    0.362

    9.19

    Diameter over outer conductor

    0.411

    10.46

    Outer conductor thickness

    0.024

    0.61

    Diameter over jacket

    0.475

    12.07

    Jacket wall thickness

    0.0315

    0.80



    Packing:



    Buyer's labels and cartons OEM/ODM desgin service is available.


    Mechanical performance:
    Minimum bending radius: 6.0 inches/15.2cm
    Maximum pulling tension: 150lbs /68kgf

    Electrical characteristics:
    Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
    Impedance: 75±2 ohms
    Velocity of propagation: 87% nominal
    Nominal DC loop resistance@68OF: 2.57 ohms/1000ft (8.43 ohms/km)

    Attenuation@ 68OF(20oC):

    @Frequency MHZ

    dB/100ft. (MAX.)

    dB/100 meters(MAX.)

    5MHZ

    0.20

    0.65

    55MHZ

    0.69

    2.26

    83MHZ

    0.86

    2.82

    211MHZ

    1.41

    4.62

    250MHZ

    1.54

    5.05

    300MHZ

    1.70

    5.57

    350MHZ

    1.87

    6.13

    400MHZ

    1.97

    6.46

    450MHZ

    2.11

    6.92

    500MHZ

    2.24

    7.34

    550MHZ

    2.35

    7.71

    600MHZ

    2.47

    8.10

    750MHZ

    2.78

    9.12

    865MHZ

    3.01

    9.87

    1000MHZ

    3.27

    10.73

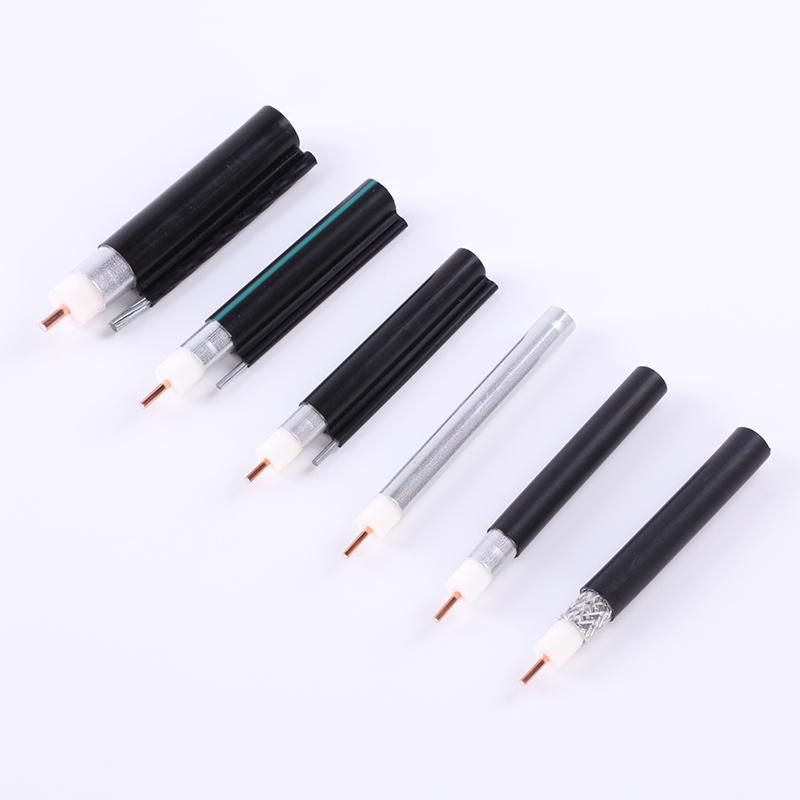

    Coaxial Cable Trunk Cable 412jcaCoaxial Cable Trunk Cable 412jcaCoaxial Cable Trunk Cable 412jca



    Competitive Advantage:

    • The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
    • To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
    • Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
    • Libo cable developed the world's first conforming seamless aluminum tube trunk cable.
    • Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
    • Libo cable is equipped with a Provincial-level Research and Development Center.
