• Model NO.：SLYWV-75-10
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Model：75-10
• Brand：Libo or OEM
• Msha Certificate：Yes
• Transport Package：350m,500m,1000m, According to Client′s Request
• Specification：Coal mine leaky feeder cable
• Trademark：LIBO or OEM
• Origin：China
• HS Code：854420000
• Production Capacity：1000km Per Month

Our Leaky feeder cable is widely used in mines, tunnels of Unites States, Canada, Australia, and Chile. We also have Low Samoke Zero Halogan jacket for this leaky feeder cable.



MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

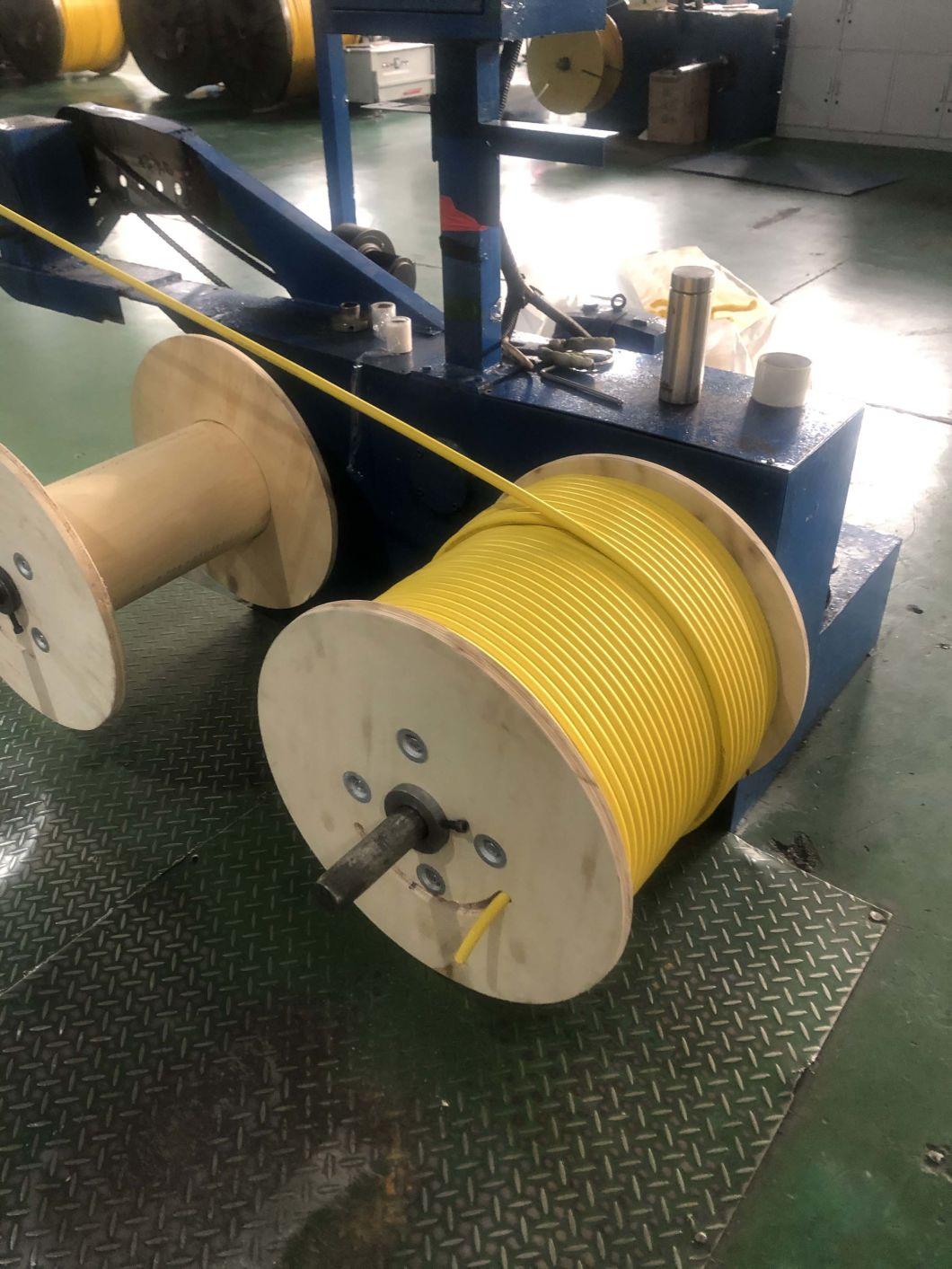

The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.



As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available



Quick Details:



• MSHA Certificate
• Solid Oxygen Free Copper Inner Conductor
• Bare Copper Wire Braiding
• Low Smoke Halogen Free Jacket or Fire Retardant Jacket
• VHF Leaky Feeder Cable
• 75 Ohm Leaky Feeder Cable



The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.

As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.

Coal Mine Leaky Feeder Cable, 75 Ohm SLYWV-75-10 Leaky Feeder Cable For Tunnels, Ships



Applications:

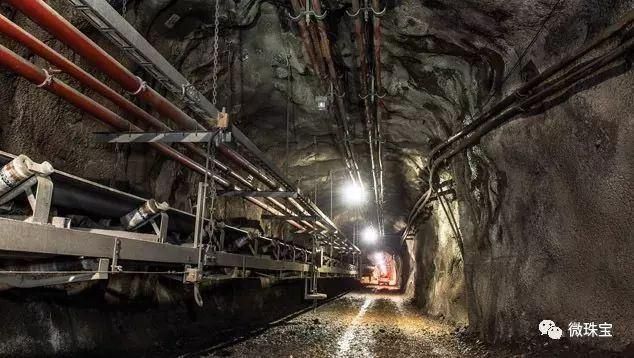

• Mines underground communication system
• metro stations
• tunnels
• ships
• In-building wireless systems.
• perimeter detection



Specification:



Inner conductor

2.31mm bare copper

Dielectric

9.50mm

Outer conductor

16x0.6 bare copper wire

Outer jacket

15.0mm+/-0.2mm

Frequency

5 to 500MHZ

impedance

75 ohms

Attenuation @160 MHZ

4.2dB/100m

DC resistance inner conductor

<4.5 ohm/km

DC resistance outer conductor

<4.1 ohm/km

capacitance

54 pF/m

Insulation resistance

>10.4m ohm/km

MIN. bend radius

150mm

Operating temperature

-40 to +70 centigrade

FAQQ: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available.

Q: May I visit your factory?
A: Sure, welcome any time with prior notice.

Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us.

Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity.

Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you.

Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.

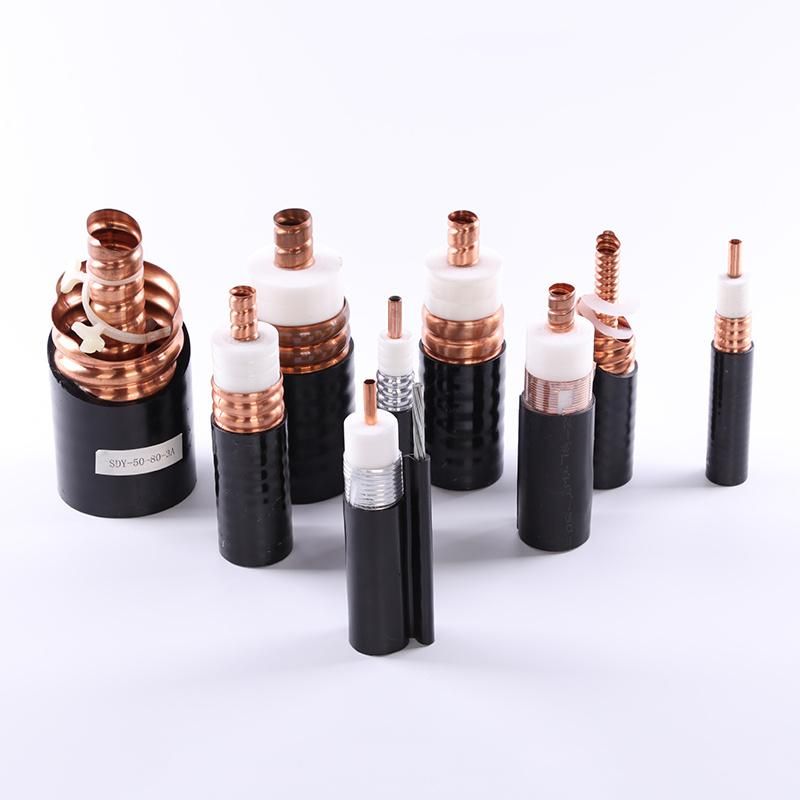

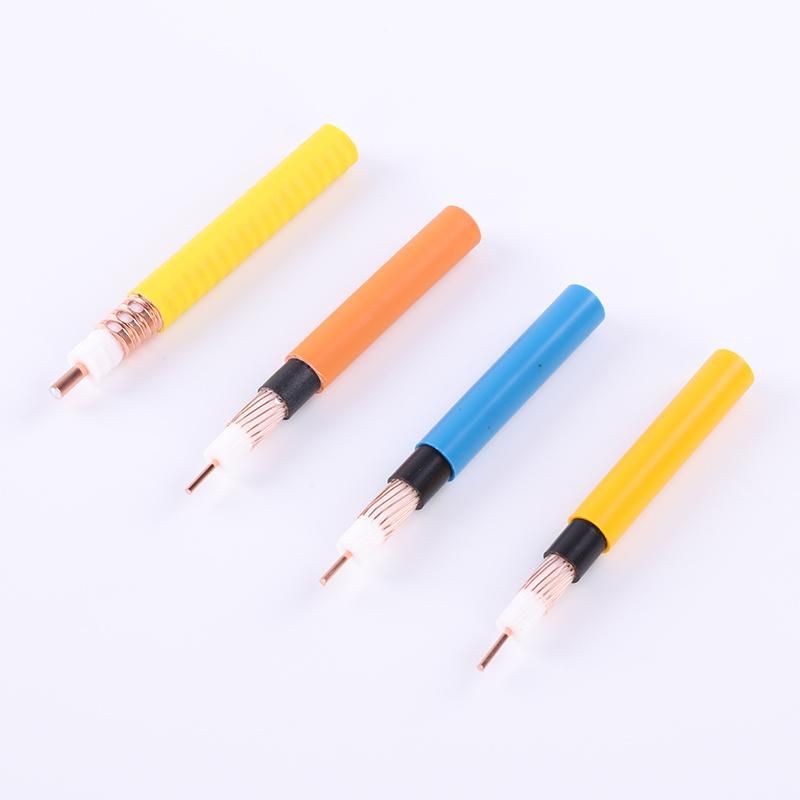

MORE PRODUCTS OF OUR COMPANY :
