• Model NO.：ayy-0 ayy-j
• Wire Core Material：Aluminum
• Certification：ISO, CCC
• Model：Yky
• Brand：OEM
• Product Name：PVC Insulated and Sheathed Power Cable Cu,PVC,PVC
• Conductor：Aluminum
• Packaging：Wooden Drum
• Transport Package：Wooden Drum
• Specification：Kablo e-ayy 1.5 - 400mm2
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：20 Kilometer,Month

Basic Info.

Model NO. ayy-0 ayy-j Wire Core Material Aluminum Certification ISO, CCC Model Yky Brand OEM Product Name PVC Insulated and Sheathed Power Cable Cu/PVC/PVC Conductor Aluminum Packaging Wooden Drum Transport Package Wooden Drum Specification Kablo e-ayy 1.5 - 400mm2 Trademark OEM Origin China(Mainland) HS Code 8544492100 Production Capacity 20 Kilometer/Month

Product Description

600 / 1000 volt E-AYY PVC Insulated Cable with Aluminium Conductor

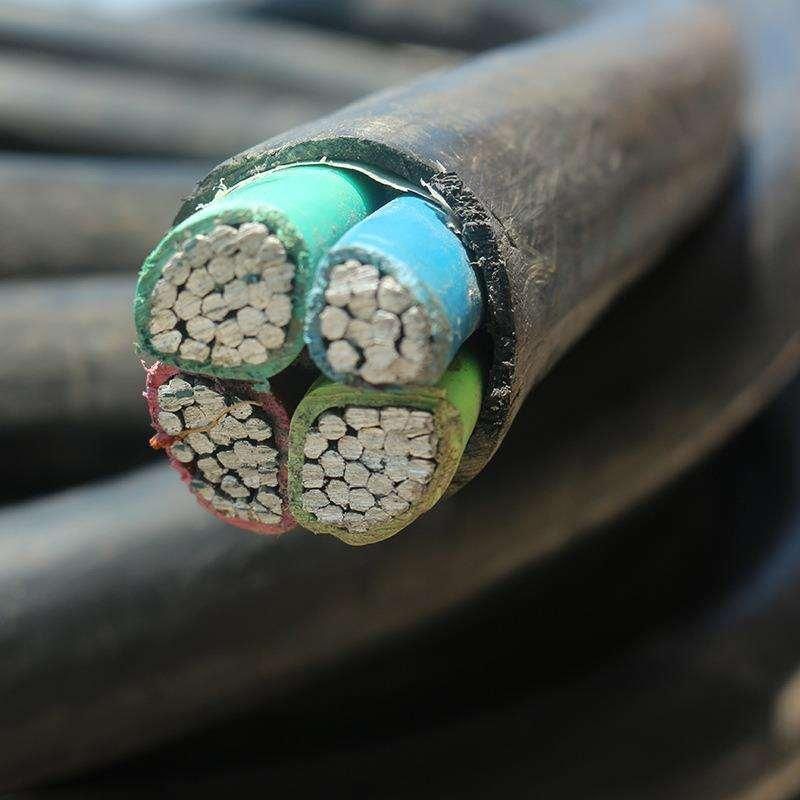

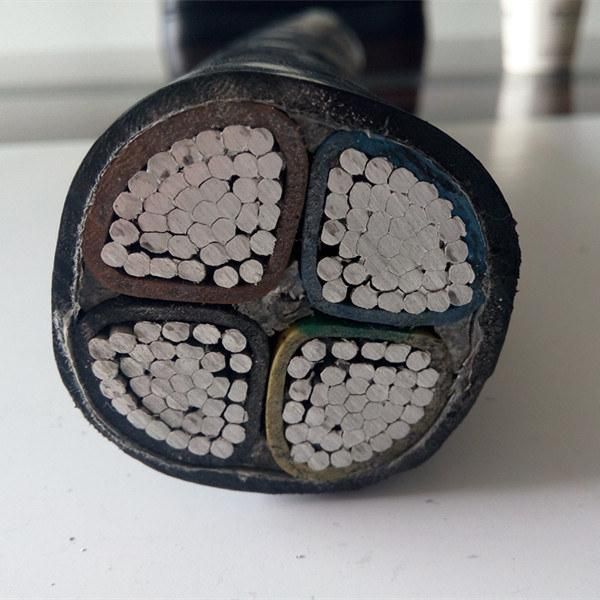

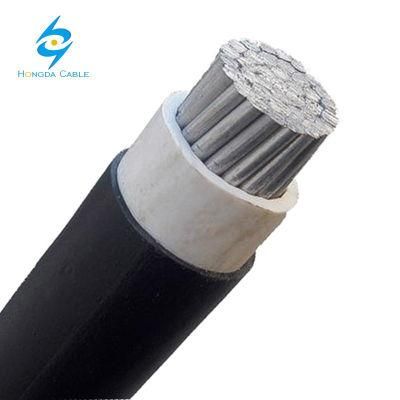

DESIGN
1 | Aluminum conductor, round solid (RE), round stranded (RM), resp. sector-shaped stranded (SM)
2 | Core insulation (PVC)
3 | PVC core covering or taping
4 | outer sheath of polyvinylchloride (PVC), black

APPLICATION
Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains. For fi xed installation underground, in interior premises, cable ducts, in the open air, in water - as permitted by the local building regulations - if no risk of any mechanical damage is to be expected.

TECHNICAL DATA
Standard: IEC 60502-1
Rated voltage: 0.6/1 kV
Test voltage: 3.5 kV/50 Hz
Temperature range: laying temperature: min. -5 °C operating temperature: -30 °C up to +70 °C conductor temperature: max. +70 °C short-circuit temperature: max. +160 °C/5 s
Bending radius (min.): 15 x ? of cable (single core) 12 x ? of cable (multi-core)
Core identifi cation: HD 308 S2
Fire properties: flame retardant: EN 60332-1-2



E-AYY

PVC Insulated Cable with Aluminium Conductor

Number of cores and nominal cross section mm2	Aluminium figure kg/km	Overall diameter appr. mm	Weight appr. kg/km	Current carrying capacity ground A	Current carrying capacity air A
1 x 25 RM	74,0	11	174,0	106	87
1 x 35 RM	103,0	12	209,0	127	107
1 x 50 RM	147,0	14	282,0	151	131
1 x 70 RM	206,0	16	363,0	185	166
1 x 95 RM	279,0	18	520,0	222	205
1 x 120 RM	353,0	19	557,0	253	239
1 x 150 RM	441,0	21	674,0	284	273
1 x 185 RM	544,0	24	826,0	322	314
1 x 240 RM	706,0	26	1052,0	375	378
1 x 300 RM	882,0	29	1282,0	425	437
1 x 400 RM	1.200,0	32	1598,0	487	513
1 x 500 RM	1.510,0	36	2022,0	558	600
1 x 630 RM	1.900,0	40	2200,0	635	701
3 x 240/120 SM	2.470,0	55	4215.0	364	338
4 x 25 RM	294,0	25	887,0	102	82
4 x 35 SM	412,0	26	796,0	123	100
4 x 50 SM	588,0	27	1017,0	144	119
4 x 70 SM	823,0	30	1312,0	179	152
4 x 95 SM	1.117,0	34	1698,0	215	186
4 x 120 SM	1.411,0	40	2459,0	245	216
4 x 150 SM	1.764,0	43	2594,0	275	246
4 x 185 SM	2.176,0	50	3777,0	313	285
4 x 240 SM	2.822,0	54	4106,0	364	338
4 x 150 SE	1.764,0	45	2594,0	275	246
5 x 25 RM	368,0	26	1018,0	102	81
5 x 35 RM	515,0	30	1316,0	121	99
5 x 50 SM	781,0	32	1549,0	144	119
5 x 70 SM	1.071,0	37	2021,0	179	152
5 x 95 SM	1.484,0	41	2598,0	215	186
5 x 120 SM	1.875,0	47	3201,0	245	216

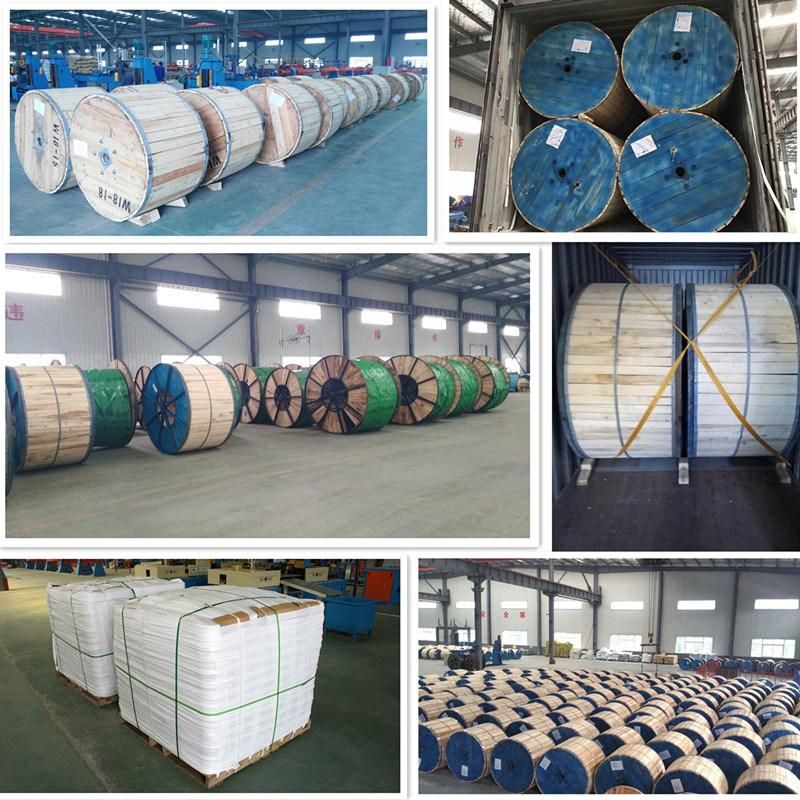

Packing shipping

Why Choose Us ?

Quality And Safety

• Hongda Cable was founded in 1999 with almost 17 years of experience in the cable industry.

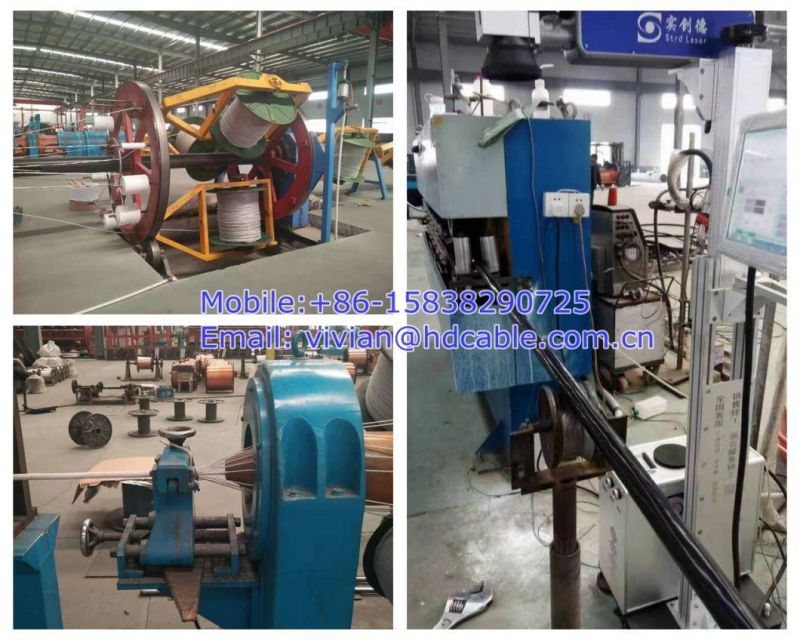

• Our manufacturing facilities are equipped with state-of-the-art technology, so we are able to meet our customers' needs for a wide range of industrial cables.
