35 Kv 90oc Sac Cable Spaced Aerial Cable

YIFANG ELECTRIC GROUP INC.
  • Type:Insulated
  • Conductor Type:Stranded
  • Application:Overhead
  • Conductor Material:Aluminum
  • Sheath Material:Crosslinking
  • Insulation Material:XLPE

Base Info

  • Model NO.:SAC
  • Material Shape:Round Wire
  • Range of Application:for Aerial Power Transmission and Distribution L
  • Certification:ISO9001, CE, UL, CCC
  • Transport Package:Drums
  • Specification:1000meter per drum
  • Trademark:Yifang
  • Origin:China
  • HS Code:8544601200
  • Production Capacity:500km Per Month

Description

Basic Info.

Model NO. SAC Material Shape Round Wire Range of Application for Aerial Power Transmission and Distribution L Certification ISO9001, CE, UL, CCC Transport Package Drums Specification 1000meter per drum Trademark Yifang Origin China HS Code 8544601200 Production Capacity 500km Per Month

Product Description

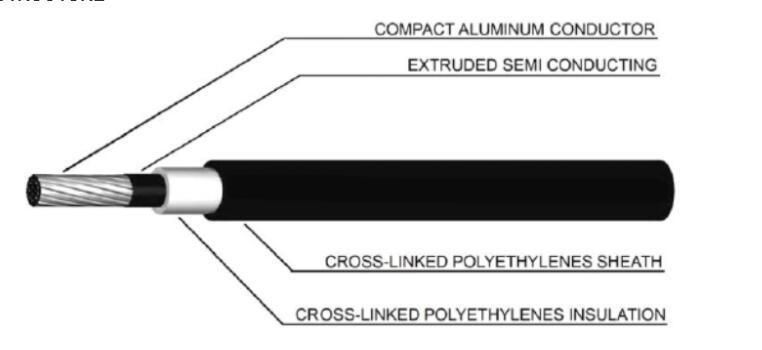

SAC Single Core Cable Aluminum XLPE HDPE Cable

APPLICATION

Spacer Cable - Installed with other spacer cables and a supporting messenger through a series of space-maintainingdevices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation particularly useful in congested areas.


Number of core: single core

Conductor: Compact stranded hard drawn aluminum wire conductor sizes 35mm2 up to 240mm2.

Conductor Shield: Semi conductor

Insulation: cross-linked polyethylene colour: Natural

Sheathed: Track resistant cross-linked polyethylene   Colour: Black

Classification  : Normal operation 90 C

                      Emergency overload conditions 130C

                        Short circuit conditions 250C

                         Voltage rating 35KV

Testing Voltage: 49KV for 5minutes

Reference: ICEA S-66-524
