Aluminum Conductor XLPE Insulated 4X10mm2 0.6/1kV LXS ABC Aerial Bundled Cable
Jiangsu Grand Cable Co., Ltd.- Application：Construction, Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：N,A
- Material Shape：Round Wire
Base Info
- Model NO.：LXS
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE
- Model：XS
- Brand：Grandcable
- Transport Package：Fumigated Drums
- Trademark：Grandcable
- Origin：Jiangsu, China
- HS Code：8544492100
- Production Capacity：78000 Km Per Year
Description
Assembly of cores2.3.1 Lay type ( helically) Y/N Y 2.3.2 Lay direction - Right 2.3.3 Maximum length of lay mm 350 3.1 Material (detailed description) - copper 3.2 Shape and compaction - Circular compact 3.3 Cross sectional area mm2 10 3.4 Class (IEC 60228) # 2 3.5 Number of wires # 7 3.6 Stranding lay direction - left 3.7 Conductor diameter mm 3.8 3.8 Lay length (outer layer) mm 76 3.9 Breaking force DaN 2100 3.10 Conductor resistance Ω/km 1.83 4.1 Material (detailed description) - Copper 4.2 Shape and compaction - Circular compact 4.3 Cross sectional area mm2 10 4.4 Class (IEC 60228) 2 4.5 Number of wires # 7 4.6 Stranding lay direction - left 4.7 Conductor diameter mm 3.8 4.8 Lay length (outer layer) mm 76 4.9 Breaking force DaN 2100 4.10 Conductor resistance Ω/km 1.83 5.1 Material (detailed description) - XLPE 5.2 Colour - BLACK 5.3 Thickness 5.3.1 Nominal value mm 1.2 5.3.2 Mean value mm ≥1.2 5.3.3 Minimum value mm ≥0.98 6.1 Material - Iron wooden drum
(1120*630*800) 6.2 Weight kg 80 6.3 Cable length per drum m 2000

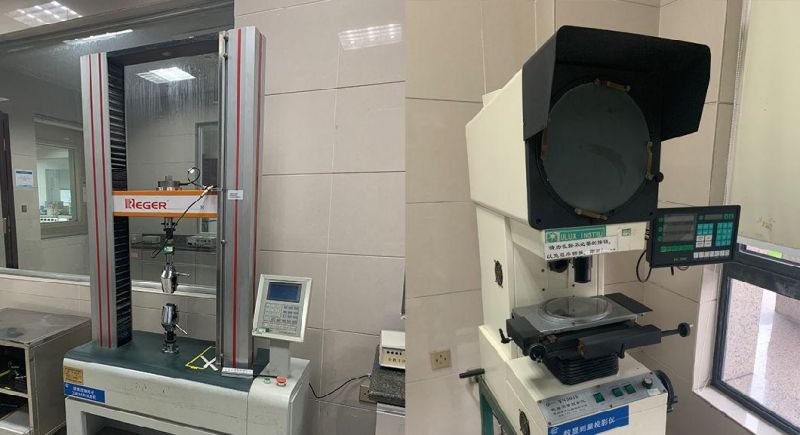

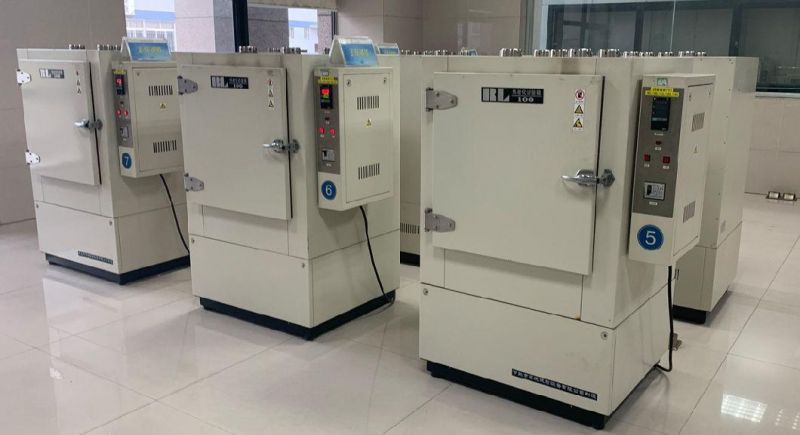

Testing Facilities:

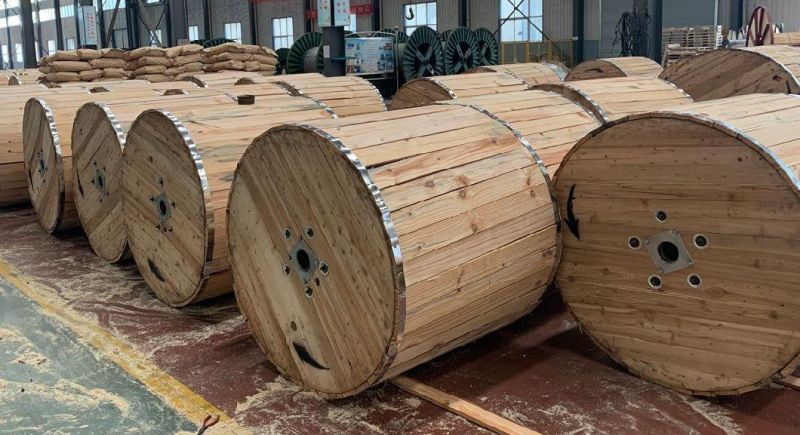

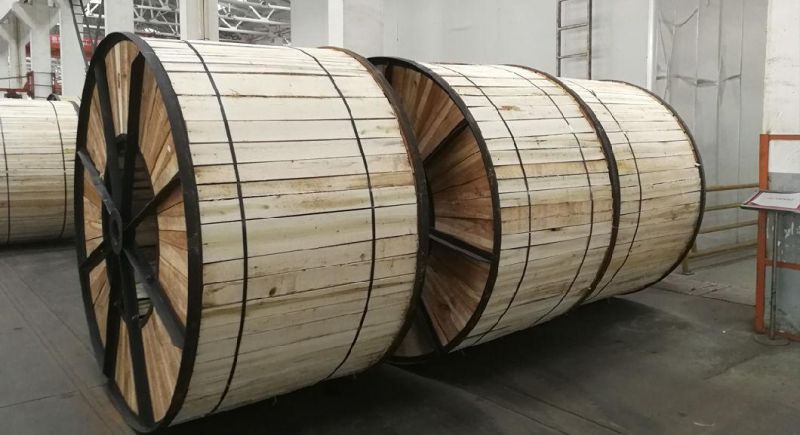

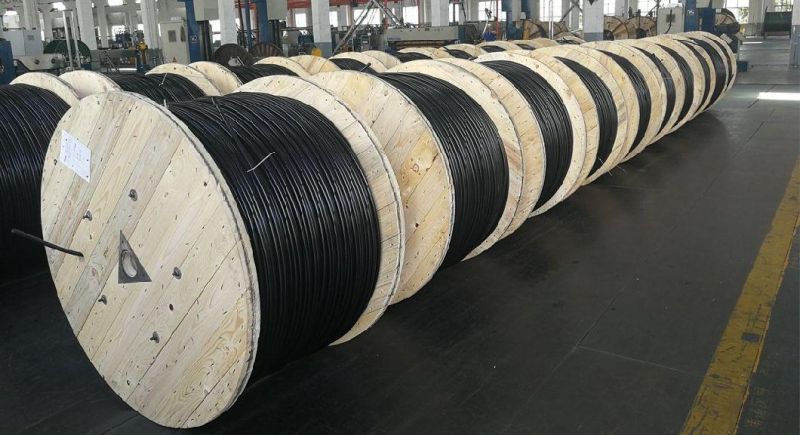

Packaing Photos:

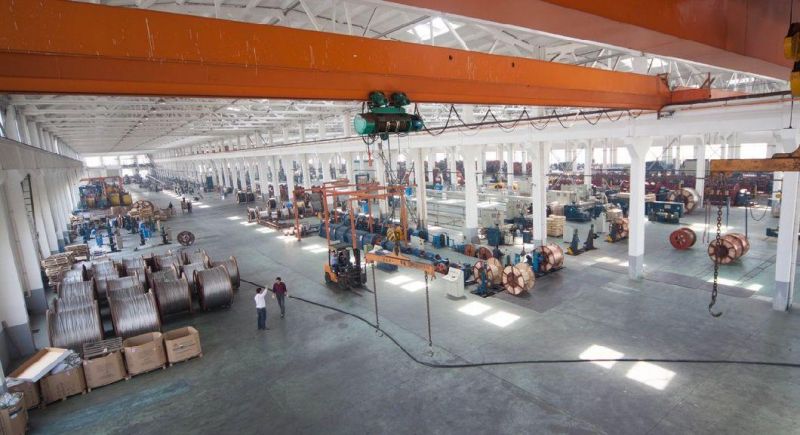

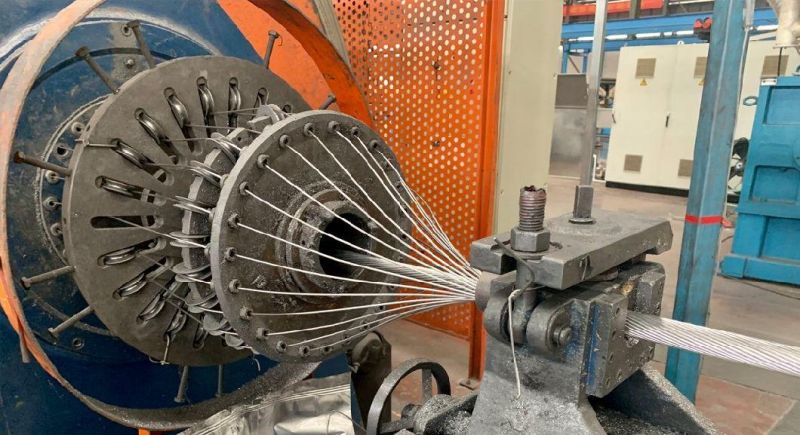

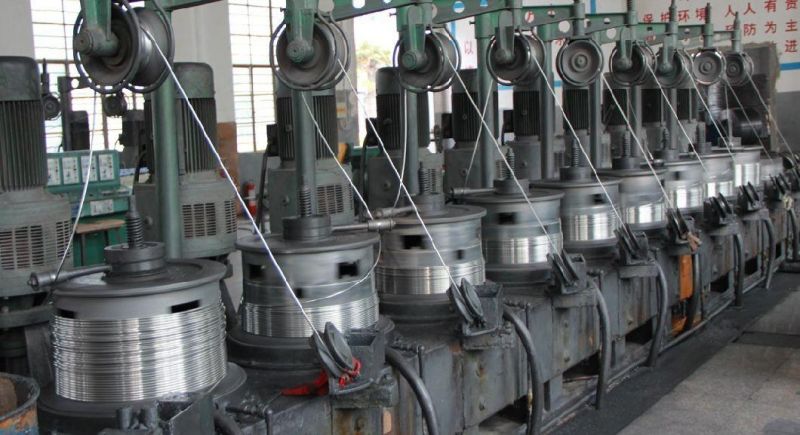

Workshop Views:
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.
With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.
FAQ:
(1120*630*800)
Testing Facilities:
Packaing Photos:
Workshop Views:
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.
With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.
FAQ:
Q: How long does it take get my inquiry replied?
A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order?
A: You will get a sample for free if we have the storage of that cable.
Q: What's the MOQ of your product?
A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.
Fore More Information, Please do feel free to contact us!
