• Model NO.：ABC
• Wire Core Material：Aluminium
• Certification：ISO, CCC, CE
• Model：ABC
• Brand：Grandcable
• Transport Package：Drums
• Trademark：Grandcable
• Origin：Jiangsu, China
• HS Code：8544601200
• Production Capacity：12000 Km Per Year

RefDescriptionUnit3Cx150 mm2 + 50 mm21Voltage (U0/U)kV19/332Number of cores 33Conductor
-Material
-Cross sectional area
-Number of strands
-Conductor Shape
-Nominal Diameter

mm2



Al
150
Min.15
Compact round stranded
14.3±0.24Conductor Screen
-Material
-Minimum thickness
-Method of application

mm
mm
Semi-con XLPE
0.5
Extrusion5Insulation
-Material
-Nominal thickness
-Minimum thickness
-Method od application

mm
mm

XLPE
8.00
7.10
Extrusion6Insulation Screen
-Material
-Minimum thickness
-Method of application
-Core diameter of insulation screen

mm
mm
mm
Semi-con XLPE
0.5
Extrusion
33.87Metallic Screen
-Material
-Nominal thickness

mm
Cu tape
0.1 x 2 pcs.8Binder tape
-Material
-Nominal thickness

mm
Polyester Tape
0.2 x 1 pc.9Outer sheath
-Material
-min.thickness
-Approx. overall diameter

mm
mm
PVC ST2
2.30
39.9910Messenger
-Material
-Nominal wire diameter
-Number of wires
-Total cross sectional area
-Overall diameter
-Final modulus of elasticity
-Coefficient of linear expansion
-Ultimate breaking strength

mm

mm2
mm
N/mm2
/°C
kN
Galvanized Steel Wire
3.15
7
54.6
9.45
190000
1.15E-005
62.711Completed Cable
-Approx. overall diameter
-Approx. weight per kilometer
-Approx. Cable length per drum
mm
kg
m
87.01
5853.18
50012Cable Drum
-Drum Material
-Approx. overall diameter (external)
-Approx. width (external)

mm
mm
WOOD
2650
1440

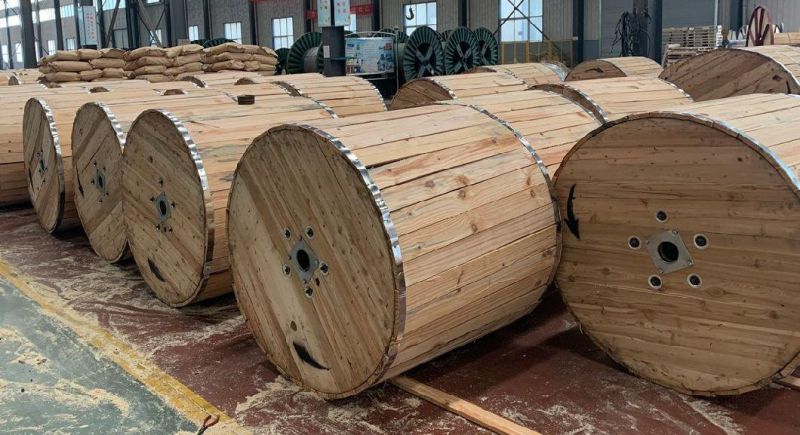

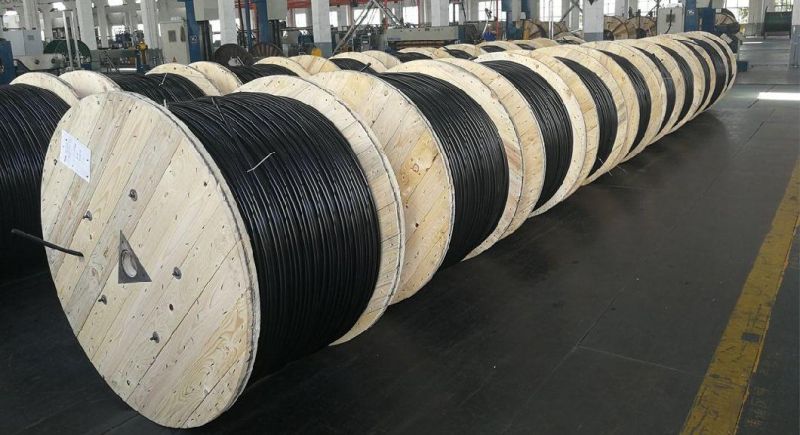

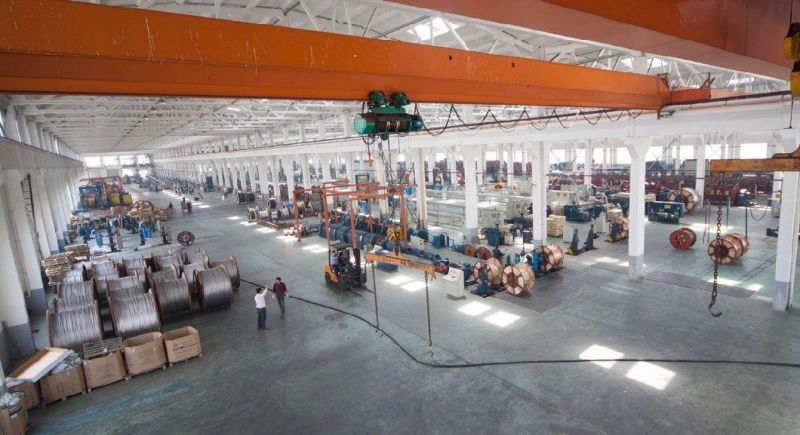

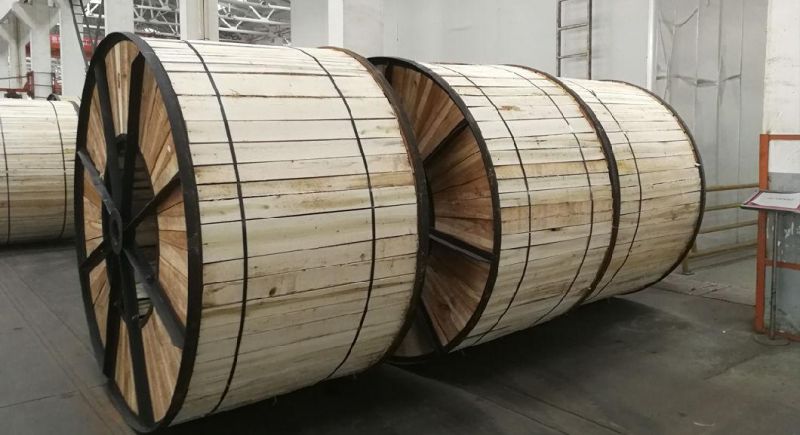

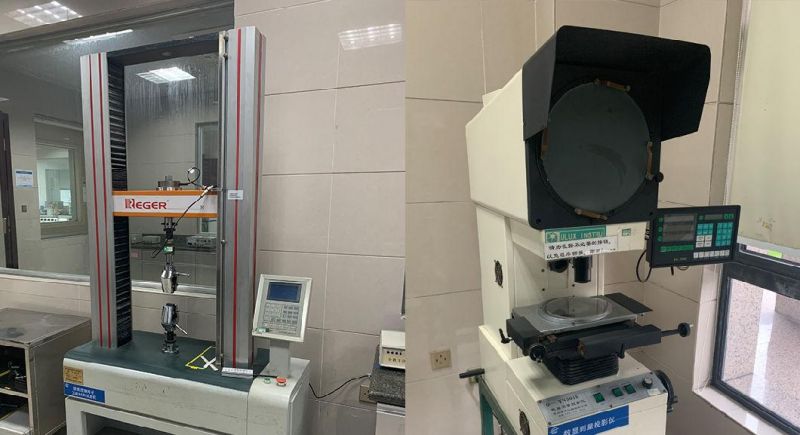

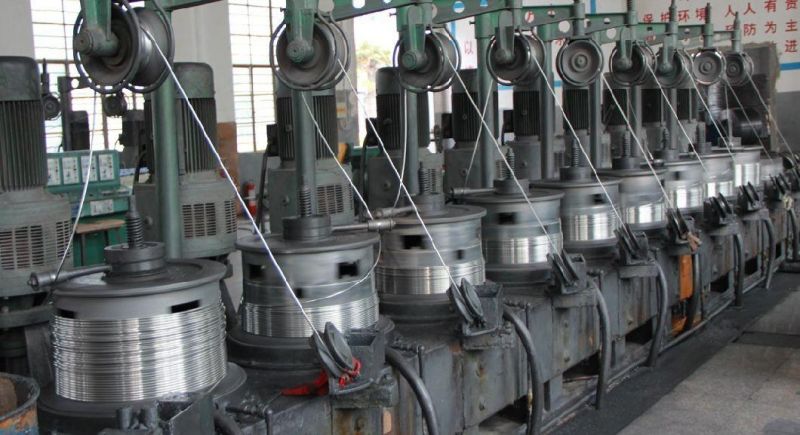

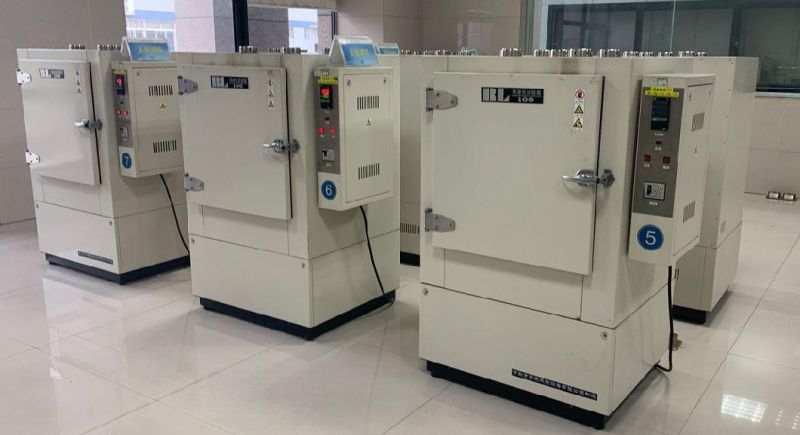

Packaging Photos:Workshop View:

About us:

Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.

With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.

FAQ:

Q:  How long does it take get my inquiry replied?

A:  Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.

Q:  Can I get samples before placing the order?

A:  You will get a sample for free if we have the storage of that cable.

Q:  What's the MOQ of your product?

A:  The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.

Fore More Information, Please do feel free to contact us!
