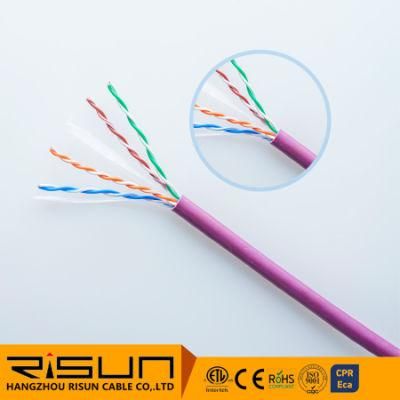

23AWG UTP 4 Pairs LAN Cable

Hangzhou Risun Cable Co., Ltd.

Application：Local Communication Cable, LAN Cable
Conductor Material：Copper
Cover Material：PVC, PE, Lszh
Type：Cat 6
Certification：CE, ISO, RoHS
23AWG：305m

Base Info

Model NO.：UTP Cat6
LAN Cavi：Network Cavi
UTP CAT6：Patch Cord
Transport Package：305m,Pull Box, 2boxes,CTN.
Specification：ETL, CE, RoHS, SGS, ISO9001
Trademark：RISUN
Origin：Hangzhou, Zhejiang, China(Mainland)
HS Code：8544491100
Production Capacity：20000 Boxes , Month

Description

ConstructionConductor23AWG (Solid or Strand) CU/CCAInsulationHDPE 1.04 ± 0.06mmCores/Pairs8/4Drain wire26AWG Tinned CopperShieldPolyester Tape / Al FoilSheath6.30+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE

Mechanical Properties
Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile strength	Min. 1.68Kg/mm2

Electrical Properties (at 20°C)
Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Cpacitance Unbalance	Max. 330pF/100m
Impendance	100+/-15 ohm
Spark Test	2000V
Velocity Propagation	67%

	Attenuation	RL	Next	PS Next
(MHz)	(db/100m)	(db)	(db)	(db/100m)
1MHz	2.0	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43.0	41.8
62.5MHz	17.0	21	39.2	37.2
100MHz	22.0	20	36.3	34.4
155MHz	28.1	19	35.5	33.6
200MHz	32.4	19	31.8	29.9
240MHz	36.0	18	30.6	28.7
300MHz	41.0	18	29.2	27
350MHz	44.9	17	28.0	25.6

Category

Audio & Video Cable

Communication Cable

Electric Wire & Cable

Other Wire & Cable

Power Cord & Extension Cord

Recommended

Waterproof Outdoor FTP Cat5e LAN Cable with Messenger
ConstructionConductor24AWG7/0.20±0.01mmBC/CU/CCA/CCSInsulationHDPE 0.96±0.02mmCores/Pairs8/4Sheath5.60±0.1mm PVC (FR,RoHS,UV)/ LSOH / PEConstructionConductor24AWG(Solidor Strand) CU/TC/CCA/CCSInsulationHDPE 0.90±0.06mmCores/Pairs8/4Drain Wire26AWG Tinned CopperShieldPolye

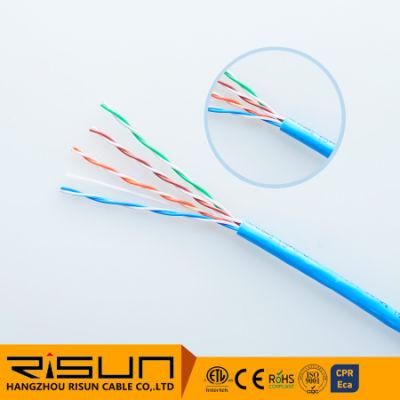

Ushielded Twisted Pair CAT6 Ethernet Cable Jelly Compound
ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²Electrical Properties:Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohm

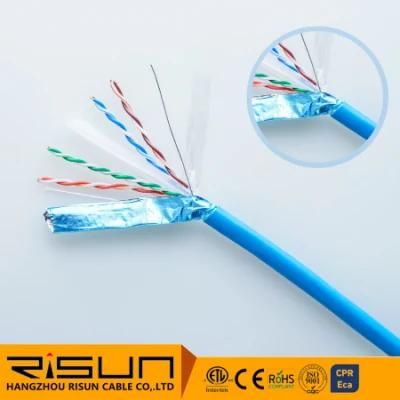

Tc Braid Double Shielded 23AWG SFTP CAT6 Network Cable
ConstructionConductor23AWG(SolidorStrand)CU/CCA/CCS/TCInsulationHDPE1.1±0.02mmCores/Pairs8/4DrainWire26AWGTinnedCopperShieldPolyesterTape +AlFoil + Tinned Copper braidSheath7.8±0.1mmPVC(FR,RoHS,UV)/LSOH/PEMechanicalPropertiesElongationMin.300%TemperatureRange-20upto+75°CTensilestre
Jelly Compound Waterproof Enhanced UTP Cat5e Network Cable
ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²Electrical Properties:Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohm
Fluke Tested UTP CAT6 Network Cable with CPR Approved
Elongation≥125%Temperature Range-30 up to +50 °CTensile Strength≥10 MPaElectrical Properties:Conductor Resistance≤7.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%Technical Perfo
High Quality Cat5e LAN Cable with Messenger Double Jacket
ConstructionConductor24AWG(SolidorStrand)CU/CCA/CCSInsulationHDPE0.90±0.03mmCores/Pairs8/4DrainWire26AWGTinnedCopperShieldPolyesterTape/AlFoilSheath5.20±0.1mmPVC(FR,RoHS,UV)/LSOH/PEMechanicalPropertiesElongationMin.300%TemperatureRange-20upto+75°CTensilestrengthMin.1.68Kg/mm2Electr
Outdoor Cat5e Network Cable with Double Jacket
ConstructionConductor24AWG(Solidor Strand) CU/TC/CCA/CCSInsulationHDPE 1.00±0.02mmCores/Pairs8/4Drain Wire26AWG Tinned CopperShieldPolyester Tape/ Al FoilSheath6.20±0.1mm PVC+PE (FR,RoHS,UV)/ LSOHMessenger1.16±0.1mm steelMechanical PropertiesElongationMin. 300%Temperature Range-

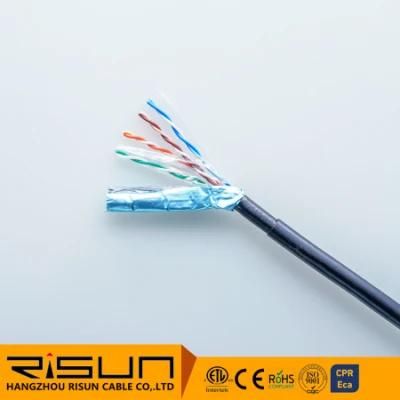

Factory Price Bare Copper FTP CAT6 Network Cable
