SFTP Cat5e Solid 305m Cu (Bulk Network Cable)
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, ETL
- Model：Cat5
- Brand：Risun
- Color：Gray, White, Black
- Inner Conductor：24 AWG Bc,CCA
- Nom. Thick：0.55mm
- Export Length：100m,Roll, 200m,Roll, 305m,Roll
- Pairs：4 Pairs
- Transport Package：Pull out Box, Carton Box, Pallet
- Specification：0.50cu, 0.90HDPE, 5.0PVC, LSZH, PE
- Trademark：Risun
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：30000boxes,Month
Description
Basic Info.
Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, ETL Model Cat5 Brand Risun Color Gray, White, Black Inner Conductor 24 AWG Bc/CCA Nom. Thick 0.55mm Export Length 100m/Roll, 200m/Roll, 305m/Roll Pairs 4 Pairs Transport Package Pull out Box, Carton Box, Pallet Specification 0.50cu, 0.90HDPE, 5.0PVC, LSZH, PE Trademark Risun Origin Zhejiang, China HS Code 8544491100 Production Capacity 30000boxes/MonthProduct Description

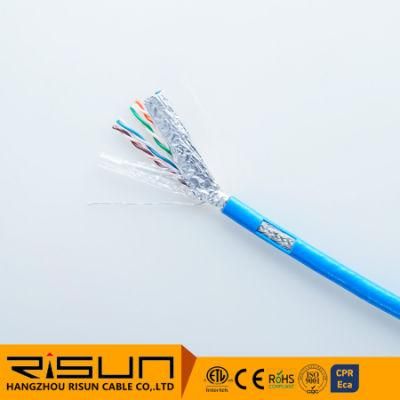

SFTP CAT5e solid 305M cu (Bulk Network Cable)Configuration:
1. Conductor: 0.51±0.01mm(24AWG) Bare copper
2. Insulation: 0.97±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Shield: Al/Pet Foil
5. Braid: 48*0.12TC/CCA
5. Drain: 0.4mm TC
4. Sheath: 6.8±0.3mm PVC (PE, LSZH)
Options: Jelly Compound, Jacket: UV, FR, RoHS complied.
Mechanical Properties:
Elongation | Min. 300% |
| Temperature Range | -20 up to +75° C |
| Tensile Strength | Min 1.68kg/mm² |
Electrical Properties:
Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Capacitance Unbalance | Max. 330pF/100m |
| Impedance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity of Propagation | 67% |
Technical Performance:
Attenuation | RL | Next | PS Next | |
| (Mhz) | (dB/100M) | (dB) | (dB) | (dB/100m) |
| 1MHz | 2.0 | 20 | 65.3 | 63.5 |
| 4MHz | 4.1 | 23 | 56.3 | 54.2 |
| 8MHz | 5.8 | 24.5 | 52.4 | 50.5 |
| 10MHz | 6.6 | 25 | 51.3 | 49.2 |
| 16MHz | 8.2 | 25 | 49.3 | 47.4 |
| 20MHz | 9.3 | 25 | 48.8 | 46.9 |
| 25MHz | 10.4 | 24 | 45.3 | 43.4 |
| 31.25MHz | 11.7 | 23 | 43.0 | 41.8 |
| 62.5MHz | 17.0 | 21 | 39.2 | 37.2 |
| 100MHz | 22.0 | 20 | 36.3 | 34.4 |

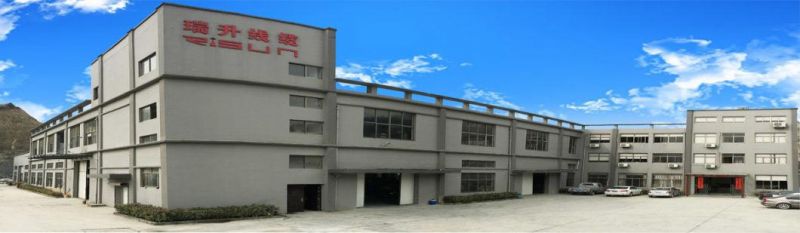

Company Introduction
RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 15 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
Packing:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
