• Model NO.：Electric wire-B-111
• Material Shape：Round Wire
• Range of Application：Equipment or Heating or Underground
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Yifang
• Conductor：Class1, Class 2
• Cores Number：1
• Colour：Black
• Transport Package：Coil, Drum, Pallet
• Specification：0.75mm2~630mm2
• Trademark：Yifang cable
• Origin：Zhengzhou, Henan, China
• HS Code：854492100
• Production Capacity：5000km Per Month

Basic Info.

Model NO. Electric wire-B-111 Material Shape Round Wire Range of Application Equipment or Heating or Underground Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Yifang Conductor Class1/ Class 2 Cores Number 1 Colour Black Transport Package Coil, Drum, Pallet Specification 0.75mm2~630mm2 Trademark Yifang cable Origin Zhengzhou, Henan, China HS Code 854492100 Production Capacity 5000km Per Month

Product Description

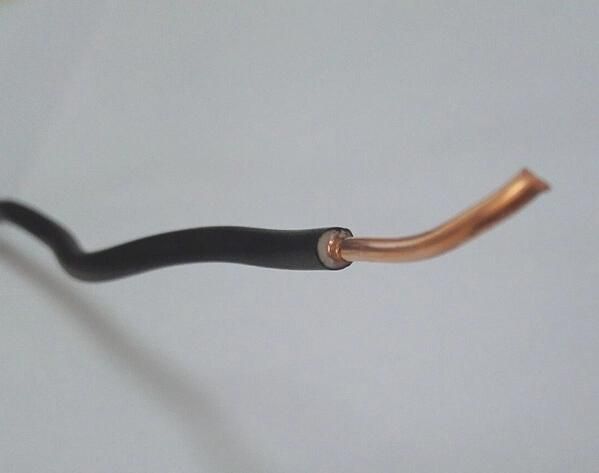

THW Cable Electric cable

1. Applications
THW cables and wires are used generally in building wiring, feeder and branch circuits, and internal secondary industrial distribution.

2. Construction
Conductor: Soft Copper, Solid or stranded compacted/compressed
Insulation: PVC 75 degree

3. Options
Available upon request, THW-LS (Low Smoke emission), THW-SR, (Sunlight Resistant) and with insulation Gasoline and Oil resistant, G&O (different types and grades of resistance to oil and gasoline)

4. Characteristics
Operating Temperature Dry Locations 75° C. Wet Locations 75° C
Operating Voltage 600 V.

5. Standards
ASTM B3, ASTM B8, ASTM B787, UL1581, UL83

6. Colors
Sizes 14 to 6 AWG: Black, white, red, green, yellow, blue. Sizes 4 AWG and greater: Black

7. Packaging
Roll / Wooden drum / Iron-wooden drum

Note: Other configurations, sizes, colors and length not specified herein are available upon request.

For further information, pls contact us directly.
