• Model NO.：YJLV72
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：YJV
• Brand：OEM,Hongda
• Color：as Your Need

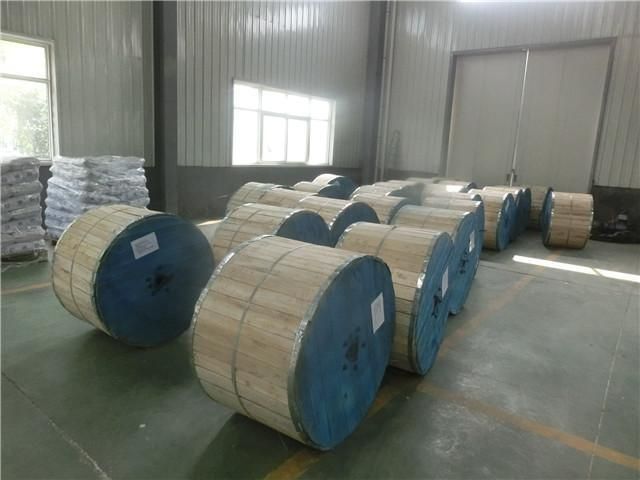

• Transport Package：in Drum or in Coil
• Specification：16
• Trademark：OEM
• Origin：Henan
• HS Code：8544492100
• Production Capacity：10000 M Per Day

Basic Info.

Model NO. YJLV72 Wire Core Material Bare Copper Wire Certification ISO, CCC Model YJV Brand OEM/Hongda Color as Your Need Transport Package in Drum or in Coil Specification 16 Trademark OEM Origin Henan HS Code 8544492100 Production Capacity 10000 M Per Day

Product Description

ITEM	SPECIFICATION (PARTICULARS	UNIT	Data
1	Insulation Voltage	V	600/1000
2	Conductor size	mm²	16
3	Phase Conductor material	N/A	Hard drawn Aluminium conductor -Single core
4	Insulation Material	N/A	XLPE
5	Earth wire material type	N/A	Bare Aluminium conductor
6	Rip Chord	N/A	Nylon
7	Reference Standards	N/A	SANS 1507, NRS 063, IEC 60502/228 ESI 09-7
8	Phase conductor Insulation thickness	mm	1.0
	Construction (Phase conductor)
9	Structure	mm	Single core
10	Insulation Thickness	mm	1.0
11	Reference Insulation O.D	mm	7.1
	Construction (Earth Wire)
12	Structure	Numbers	12
13	Wire structure	N/A	12/1.7
	Construction (Pilot/Communication Wires)
14	Structure	mm²	4X0.5
15	Reference Insulation O.D	mm	1.13
16	Conductor material	N/A	Copper
17	Insulation Material	N/A	LLPDE/XLPE
18	Number of conductors	Numbers	4
	Construction (Sheath)
19	Nominal Thickness	mm	1.6
20	Reference Insulation O.D	mm	14.5
21	Sheath Material	N/A	LLPE Black UV stable/HQ PVC
	Insulation material colours
22	Phase conductor	N/A	Red
23	Pilot wires (04)	N/A	Red, Green, White, Blue
24	Sheath	N/A	Black
	Performance (Electrical Characteristics)
25	Phase Conductor - Maximum resistance at		≤1.91
26	Earth Wires - - Maximum resistance at		≤7.40
27	Pilot Wires - Maximum resistance at 20		≤36

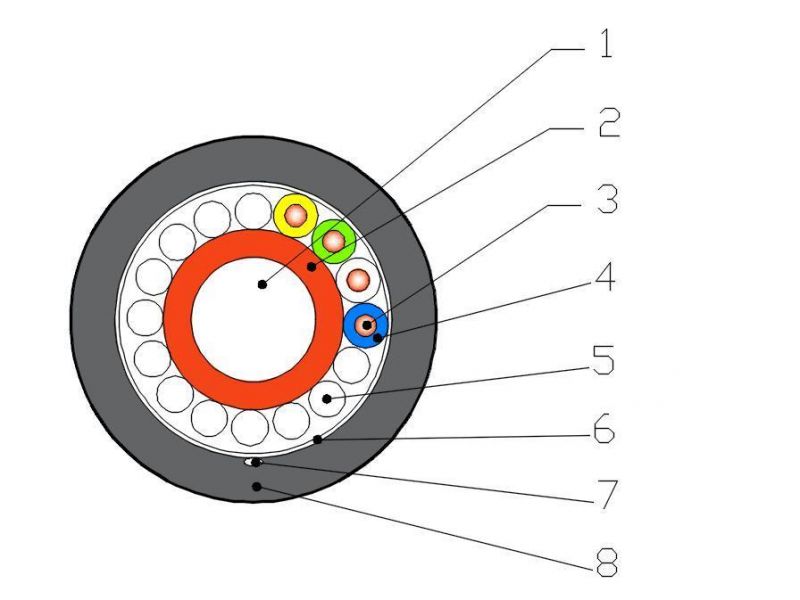

1.Phase conductor:Solidal  16sqm aluminum wire (diameter 4.50mm)
2.Insulation :XLPE (nominal thickness :1.0mm,color :red)
3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )
4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE
5.Neutral conductor :solidal aluminum wire (12/1.31)
6.Binder tape :non-hygroscopic tape
7.Ripcord
8.Sheathed:LLDPE (nominal thickness :1.6mm, color black  )
