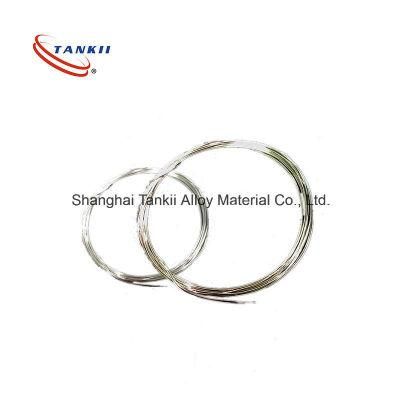

24AWG Chromel Alumel Bare wire Thermocouple Wire (K Type)

Shanghai Tankii Alloy Material Co., Ltd.
  • Type：Bare
  • Conductor Type：Solid
  • Application：Heating
  • Conductor Material：NiCr-NiSi
  • Sheath Material：Bare
  • Insulation Material：Bare

Base Info

  • Model NO.：K
  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：ISO9001, RoHS
  • Brand：Tankii
  • Dia：0.3,0.5,0.8,1.0,1.2,1.6,2.0,2.5,3.2mmm
  • Surface：Bright, oxidized
  • Grade：I,II,III
  • Tensile strength：390
  • Item：Bare wire Thermocouple Wire (K Type)
  • Transport Package：Spool, Carton, Wooden Case
  • Specification：IEC 584-1, IEC 581-2, ASTM E 230,American standard
  • Trademark：TANKII
  • Origin：TANKII, CHINA
  • HS Code：7505220000
  • Production Capacity：5000 tons,year

Description


Chemical Composition
Conductor Name
Polarity
Code
Nominal Chemical Composition /%
Ni
Cr
Si
Ni-Cr
Positive
KP
90
10
--
Ni- Si
Negative
KN
97
--
3 Working Temperature
Diameter/mm
Long time Working temperature /ºC
Short period Working temperature /ºC
0.3
700
800
0.5
800
900
0.8,1.0
900
1000
1.2,1.6
1000
1100
2.0,2.5
1100
1200
3.2
1200
1300
