Low Loss Shielded Coaxial Cable RG6 for CCTV/CATV

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Coaxial Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PE
  • Type：Coaxial Cable
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CCC
  • Model：RG6
  • Brand：Hanli
  • Color：Black
  • Shield：Al Foil+Braiding
  • Length：305m
  • Transport Package：100m,200m,305m Per Roll
  • Specification：32.5*32.5*33.5cm
  • Trademark：Hanli
  • Origin：Zhejiang
  • Production Capacity：1500km,Week

Description

@ Frequency MHzdB/100 ft. (MAX.)dB/100 meters (MAX.)5 MHz0.58 dB2.65 dB55 MHz1.60 dB5.25 dB83 MHz1.95 dB6.40 dB187 MHz2.85 dB9.35 dB211 MHz3.05 dB10.00 dB250 MHz3.30 dB10.82 dB300 MHz3.55 dB11.64 dB350 MHz3.85 dB12.63 dB400 MHz4.15 dB13.61 dB450 MHz4.40 dB14.43 dB500 MHz4.66 dB15.29 dB550 MHz4.90 dB16.08 dB600 MHz5.10 dB16.73 dB750 MHz5.65 dB18.54 dB865 MHz6.10 dB20.01 dB1000 MHz6.55 dB21.49 dB

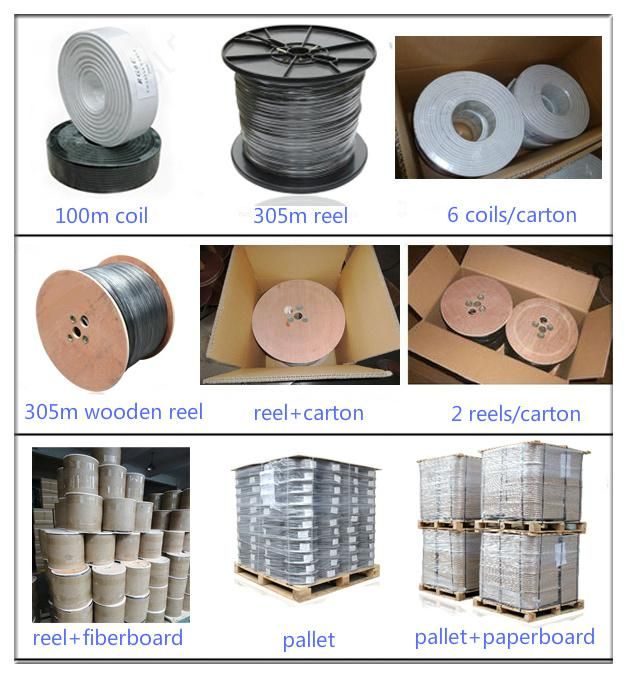

Packing
Low Loss Shielded Coaxial Cable RG6 for CCTV/CATV
1)     Packing Lengths:100/roll,200m/roll,300m/roll.305m/roll
2)     Inner Packing:Wooden reel,plastic reel,and paper reel
3)     Outer Packing:Carton box,pull out box,pallet available
4)     Other packing available according to clients'request

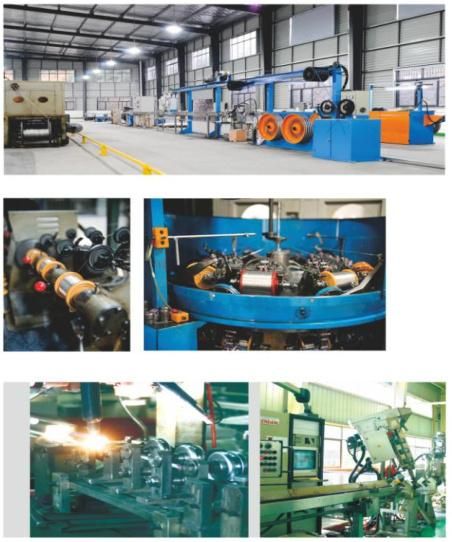

Company Information
Low Loss Shielded Coaxial Cable RG6 for CCTV/CATV
Certification
Low Loss Shielded Coaxial Cable RG6 for CCTV/CATV
