24 AWG FTP Cat5e LAN Cable Network Cable
Zhejiang Kuayue Cable Co., Ltd.- Application：LAN Cable
- Conductor Material：Copper
- Cover Material：PE
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：cat5e
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC
- Model：Cat5e
- Brand：Kuayue
- Color：Optional
- Length：305m
- MOQ：15km
- Conductor：4*2*0.52mm Bare Copper
- Insulation：0.92mm HDPE
- Jacket：5.1mm PE
- Transport Package：Any Packing Is Available as Your Request.
- Specification：wooden reel, carton, pallet
- Trademark：Hanli
- Origin：Zhejiang
- HS Code：8544491100
- Production Capacity：1400km,Week
Description
Impedance(Ohm)100±15 100±15 Velocity of propagation 70 70 Minimum Return Loss(dB) ≥23 ≥23 Frequency Attenuation(dB/100m) NEXT PS-NEXT ELFEXT PS-ELFEXT 1MHz 2.0 62.3 65.3 63.8 60.8 4MHz 4.1 53.3 56.3 51.7 48.7 10MHz 6.5 47.3 50.3 43.8 40.8 16MHz 8.2 44.3 47.3 39.7 36.7 20MHz 9.3 42.8 45.8 37.7 34.7 31.25MHz 11.7 39.9 42.9 33.9 30.9 62.5MHz 17.0 35.4 38.4 27.8 24.8 100MHz 22.0 32.3 35.3 23.8 20.8 Application: 100 Base-T4 100 Base-TX 100VG - AnyLAN 1000 Base-T (Gigabit Ethernet) 155 Mbps ATM 622 Mbps ATM
Company Information

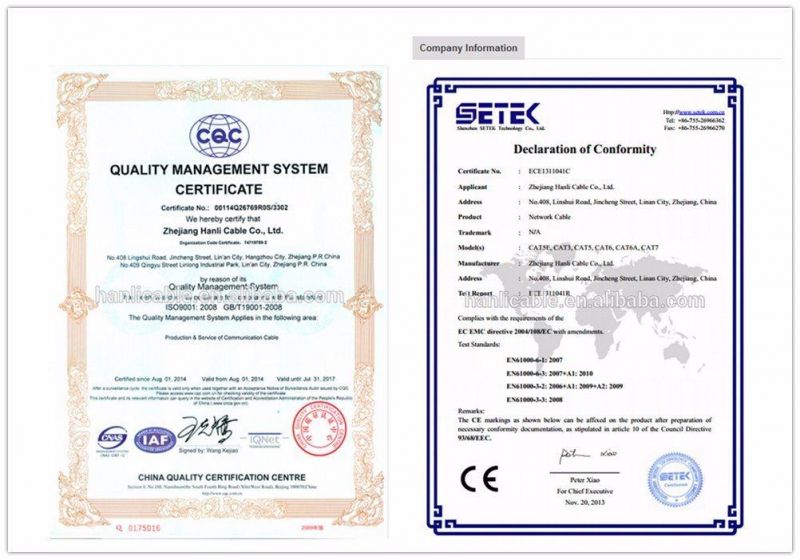

Certification
