• Model NO.：FTL-16
• Material Shape：Round Wire
• Range of Application：Cold-Resistant
• Certification：ISO9001, CE, UL, CCC, RoHS
• Brand：Optelec
• Cable Dia.：14.31~19.30mm
• Length：1580mm
• Transport Package：Wooden Case
• Specification：CE, SGS, ISO9001
• Trademark：Powtech
• Origin：China
• HS Code：7316
• Production Capacity：100000PCS,Month

ModelCable dia(mm)Gripping Length L1(mm)Total Length L(mm)Weight(kg)FTL-118.30~11.7025013000.28FTL-1411.71~14.3025013500.30FTL-1614.31~19.3035016500.66

Application Guide:

1.    Select the Specification Model according to cable diameter.

2.    Installed Spiral Vibration Damper may be several along the cable or at the same point. Gripping section is close to pole or tower and the length from Damping Section to Inner Protection Rods end of Tension Set or Suspension Set is 12 cm.

3.    The quantity of damper per span is confirmed according to cable stress and span length. The normal specification is followed:

Span LengthQuantity<100m0100-250m2250-400m4400-800m6

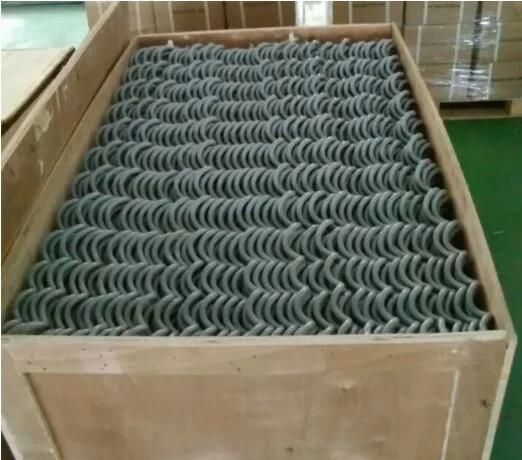

Packing:
