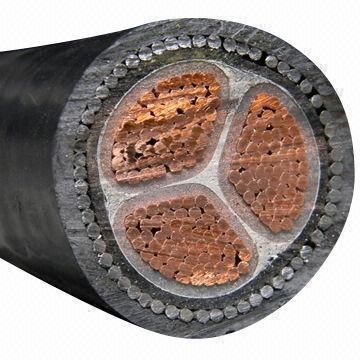

0.6/1kv 600/1000V Underground Electrical Power Cable PVC/XLPE Insulated Steel Wire Armored Swa
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground
- Conductor Material：Copper
- Sheath Material：PVC or PE
- Insulation Material：PVC or XLPE
Base Info
- Model NO.：SWA
- Material Shape：Round Wire
- Range of Application：Underground
- Certification：ISO9001, CE, CCC
- Brand：Yifang
- Product Name：XLPE Insulated Steel Wire Armoured Power Cable
- Transport Package：Drums
- Specification：1.5 - 1000mm2 1-5 cores
- Trademark：Yifang
- Origin：Zhengzhou
- HS Code：8544492100
- Production Capacity：1, 000 Kilometers Per Month
Description
Cu(AL)/XLPE/SWA/PVC(PE)
Cross-section area of neutral conductor
In 3+1cores and 3+2cores should conform to specification of following table:
D.C Resistance of finished cable at 20ºC per km is not more than the following:
Each drum of finished cable should withstand power frequency voltage 3.5kV for 5 minutes,the insulation is not breakdown.
Service conditions and operation parameters of Cable:
The cable is applied to fixed installation for rated voltage 0.6/1kV of power transportation and distribution line.
Max. rated temperature of conductor. nominal operating 90ºC
Short circuit: max. for 5 sec.250ºC
The cable can be laid without drop restriction, and the environment temperature shall not be lower than 0ºC.
4.Standard
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754.
Some indexes are superior to above international standard.
