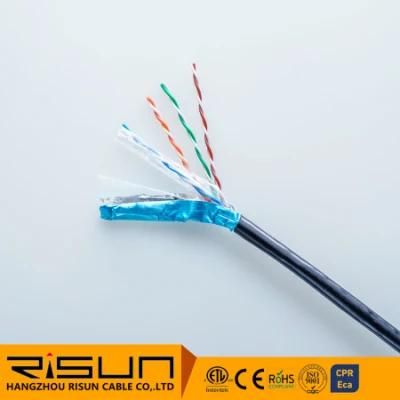

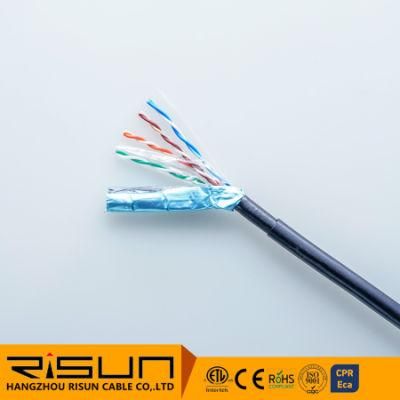

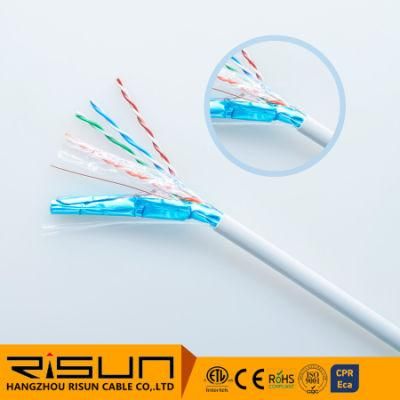

China Hot Sale High Performance SFTP Cat5e Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Cu,CCA,Tc,CCS
- Cover Material：PVC,PE,LSZH
- Type：Cat5e
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：SFTP Cat5e Cable
- Wire Core Material：CCA
- Certification：CE, ISO, RoHS, CCC, ETL SGS CPR
- Model：FTP Cat5e
- Brand：Risun or OEM
- Insulation：HDPE
- Jacket：PE,PVC,LSZH,Cm,Cmr,Reach
- Ripcord：500d,1000d
- UV, Jelly, Fr：Available
- Briad：40% Tinned Copper
- Transport Package：100m,200m,300m,Roll
- Specification：ETL, CE, ROHS, ISO9001
- Trademark：RISUN or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
ConstructionConductor 24AWG (Solid or Strand) CU/TC/CCA/CCS Insulation HDPE 1.0±0.02mm Cores/Pairs 8/4 Drain Wire 26AWG Tinned Copper Shield Polyester Tape/ Al Foil/Tinned Copper Braid Sheath 6.80±0.1mm PVC (FR,RoHS,UV)/ LSOH / PE
Mechanical Properties
ElongationMin. 300% Temperature Range -20 up to +75° C Tensile Strength Min 1.68kg/mm²
Electrical Properties:
Conductor ResistanceMax. 9.38 ohm/100m Resistance Unbalance Max. 2% Insulation Resistance 150 ohm/KM Mutual Capacitance Max. 5600pF/100m Capacitance Unbalance Max. 330pF/100m Impedance 100+/-15 ohm Spark Test 2000V Velocity of Propagation 67%
Technical Performance:
FAQ
Q1: What is the MOQ order ?
A1: MOQ is 10000meters.
If you have different and special demands, please contact with us, we'll provide the best solutions to you.
Q2: How to shipping? Is there cheap shipping cost to import to our country ?
A2:The best choice is shipping By sea. Because network cable is very heavy, it's too expensive by air.
By Sea: If you have freight forwarder, they can handle shipping for you. If you don't have it, we can provide the cheapest shipping cost to you, or send our freight forwarder information to you contact directly.
Q3. How to know recycle and new jacket materials ?
A3: Except for conductor price, the jacket materials is the main factors affecting price. Some supplier's price is crazy, because they use recycle materials in production.
Recycle material: The jacket will have bubble, especially tenacity is very bad, it's easy to tear. So the cable's lifetime is short, fire retardant & cold resistance is bad too.
New material: Tenacity is very good, it's hard to tear, and with good fire retardant & cold resistance.
Q4: Can you make OEM ?
Yes, we can supply OEM service to our international clients. It can be marking your brand or any printing that you want. Except for international famous brand.
Mechanical Properties
Elongation
Electrical Properties:
Conductor Resistance
Technical Performance:
Attenuation | RL | Next | PS Next | |
| (MHZ) | (dB/100m) | (dB) | (dB) | (dB) |
| 1MHZ | 2.6 | 12 | 41.3 | 41.3 |
| 4MHZ | 5.6 | 12 | 32.3 | 32.3 |
| 8MHZ | 8.5 | 12 | 27.8 | 27.8 |
| 10MHZ | 9.7 | 12 | 26.3 | 26.3 |
| 16MHZ | 13.1 | 12 | 23.3 | 23.3 |
FAQ
Q1: What is the MOQ order ?
A1: MOQ is 10000meters.
If you have different and special demands, please contact with us, we'll provide the best solutions to you.
Q2: How to shipping? Is there cheap shipping cost to import to our country ?
A2:The best choice is shipping By sea. Because network cable is very heavy, it's too expensive by air.
By Sea: If you have freight forwarder, they can handle shipping for you. If you don't have it, we can provide the cheapest shipping cost to you, or send our freight forwarder information to you contact directly.
Q3. How to know recycle and new jacket materials ?
A3: Except for conductor price, the jacket materials is the main factors affecting price. Some supplier's price is crazy, because they use recycle materials in production.
Recycle material: The jacket will have bubble, especially tenacity is very bad, it's easy to tear. So the cable's lifetime is short, fire retardant & cold resistance is bad too.
New material: Tenacity is very good, it's hard to tear, and with good fire retardant & cold resistance.
Q4: Can you make OEM ?
Yes, we can supply OEM service to our international clients. It can be marking your brand or any printing that you want. Except for international famous brand.
