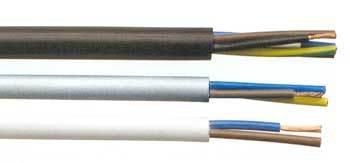

318b Lshf Flexible Control Cable

YIFANG ELECTRIC GROUP INC.
  • Option Conductor：Aluminum
  • Insulation：Lshf
  • Sheath：Lshf
  • Sheath Color：Available in White, Grey or Black
  • Transport Package：Wooden or Wooden-Steel Drum
  • Specification：mullti cores

Base Info

  • Model NO.：318B LSHF BM64
  • Trademark：Yifang Cable
  • Origin：Zhengzhou, China
  • HS Code：8544601200
  • Production Capacity：300km,Month

Description

Working voltage :300 / 500VOperating Temperature Range :+ 5°C + 90°C flexing -20°C to 90°C fixedMinimum Bending Radius :15 x overall diameter for flexing applications 7.5 x overall diameter for fixed applicationsNominal Cross Sectional Area of Conductor (mm2)Nominal No. & Diameter of Strands (mm)Nominal Overall Diameter (mm)Conductor Resistance @ 20°c (ohms / km)Approx Weight3182B 2 Core    0.7524 / 0.206.5026.00531.0032 / 0.206.8019.50611.5030 / 0.257.8013.30733183B 3 Core    0.7524 / 0.206.7026.00631.0032 / 0.207.0519.50721.5030 / 0.258.2513.301012.5050 / 0.2510.207.981534.0056 / 0.3011.254.6532203184B - 4 Core    0.7524 / 0.207.6026.00801.0032 / 0.208.1519.50841.5030 / 0.259.6013.301312.5050 / 0.2511.307.981833185B - 5 Core    0.7524 / 0.208.6026.001041.0032 / 0.209.4019.501091.5030 / 0.2510.6013.301812.5050 / 0.2512.507.725250318b Lshf Flexible Control Cable318b Lshf Flexible Control Cable
