• Model NO.：1.9,3.3kv BM55
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：YJV
• Brand：Yifang
• Option Conductor：Aluminum
• Transport Package：Wooden or Wooden-Steel Drum
• Specification：multicores
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544601200
• Production Capacity：300km,Month

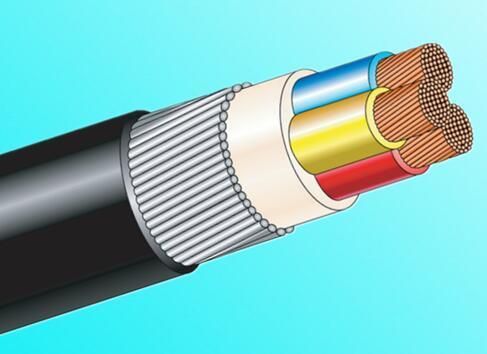

Construction characteristics

 Conductor material:CopperConductor shape:CircularConductor flexibility:Stranded class 2Insulation:XLPE (Cross-linked Polyethylene) - IEC60502Inner sheath:PVCArmour type:Aluminium wiresOuter sheath:PVCColour:BlackLead free:Yes

Electrical characteristics

 Rated Voltage Uo/U (Um):1900/3300 Volts - BS5467

Usage characteristics

 Minimum installation temperature:0 °CMaximum installation temperature:+60 °CInstallation type:Outdoor - Direct burialMinimum operating temperature:-25 °CMaximum operating temperature:90 °CShort-circuit max. conductor temperature:250 °CFlame retardant:IEC 60332-1Bending radius:6 x Overall diameter

Single Core: Brown inner & Black outer

Part NumberCross SectionStrandingApprox WeightApprox Overall DiameterGland SizeSingle CleatNom. Max. DC-resist conductor 20°C(mm²)(mm)KG/KM(mm)(mm) (Ohm/km)        3.3AWAPVC1X1201 x 12037/2.03149023.2251.20.1533.3AWAPVC1X1501 x 15037/2.25187026.3321.20.1243.3AWAPVC1X1851 x 18537/2.52229028.7321.40.09913.3AWAPVC1X2401 x 24061/2.25288031.4401.40.07543.3AWAPVC1X3001 x 30061/2.52352034.1401.80.06013.3AWAPVC1X4001 x 40061/2.85452038.950s1.80.04703.3AWAPVC1X5001 x 50061/3.2568042.850s1.80.03663.3AWAPVC1X6301 x 630127/2.52712047.3502.00.0283

Suitable gland types:

• CW Aluminium - Internal & External
