Silica Rubber Insulation & Sheathed Control Cable Excellent Oxygen Resistance, Ozone Resistanc Waterproof Rubber Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Applicable in The Case of Indoor Lovability
- Conductor Material：Copper
- Sheath Material：Rubber
- Insulation Material：Rubber
Base Info
- Model NO.：KGG KGGRP KGGP YGG
- Material Shape：Round Wire
- Range of Application：LSOH
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：US $0.5-5, Meter
- Trademark：FengDa
- Origin：Tianjin, China
- HS Code：8544492100
- Production Capacity：5, 000, 000km,Year
Description
Basic Info.
Model NO. KGG KGGRP KGGP YGG Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Feiya Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.5-5/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/YearProduct Description

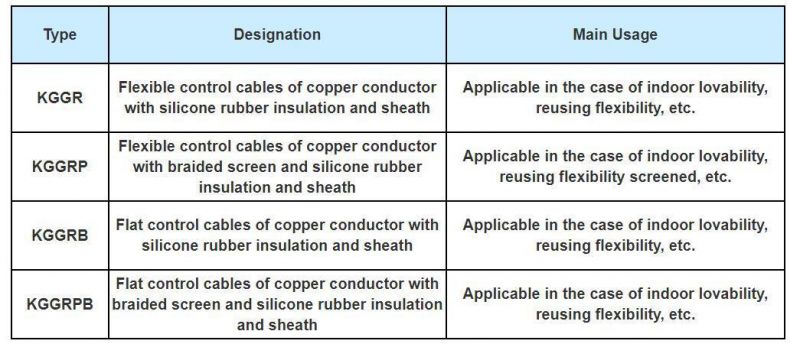

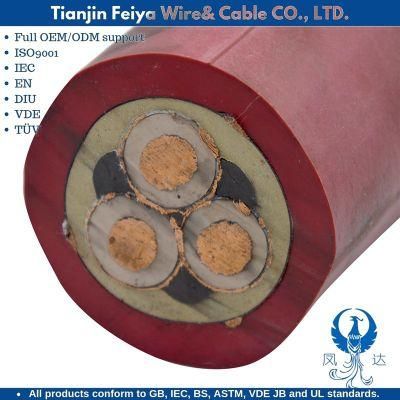

KGG KGGRP KGGP YGG-silicone rubber control cables
Heat-resistant silicone rubber control cable
This product is applicable to the control and monitoring circuit of rated voltage 450 / 750V and below in high temperature industry, such as steel, smelting, power plant, coking plant, aviation, metallurgy machinery and petrochemical industry. It has excellent resistance to high temperature, flame retardant, radiation resistance, aging resistance, ozone resistance, water and other characteristics of a good cold resistance, weather resistance.
First, the implementation of standards
Using QB / T341181-0095
Second, the use of conditions
1. Operating temperature -50 ºC ~ 180 ºC Recommended bending radius of not less than 6 times the cable diameter
2. Has excellent oxygen resistance, ozone resistance, resistance to ultraviolet radiation, long-term use in the outdoor does not crack
3. Has excellent electrical properties, resistance to arc and arc resistance is also very good
4. Have excellent physical and mechanical properties, in 150 ºC high temperature, its mechanical properties far superior to general-purpose rubber cable, has good chemical resistance, resistance to fuel oil and oil properties.
5. Odorless, tasteless, non-toxic, with low surface activity and low moisture absorption properties.
