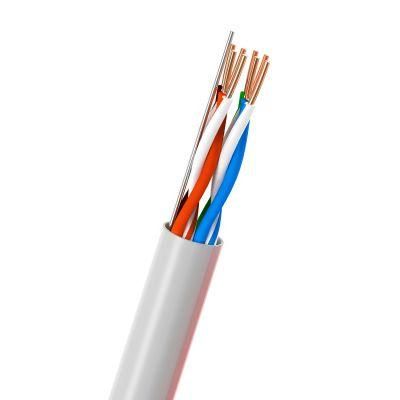

4K Network Camera U/UTP Cat5e Twisted Pair Installation Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：cat5e
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Model：Cat5
- Brand：Fuu
- Color Availability：Additional Cable Colors Available.
- Transport Package：305m
- Specification：0.5mm conductor
- Origin：China
- HS Code：8544200000
- Production Capacity：5000km,Month
Description
Construction
Conductor:
0.45mm Solid Bare Copper
Pairs:
4 Pairs
Insulation:
0.82 mm HDPE
Insulation Colors:
Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown
Rip Cord:
Cotton
Out Jacket:
4.7±0.2 mm PVC
Electrical Characteristics
Impedance
1 - 100MHz 100±15 Ohms
Insulation Resistance
>5000MΩ*KM
Dielectric strength
DC 2500V 2S
Max.Conductor DC
Resistance 20ºC
12 Ohms/100m
Res. unbalance (%)
Max. 2.5
Pair to Ground
Capacitance Unbalance
330 pF/100m
Transfer Impendance
Max 10 mOhms/m @100Mhz
Installation temp.
-30 - 50ºC
Operation temp.
-20 - 75ºC

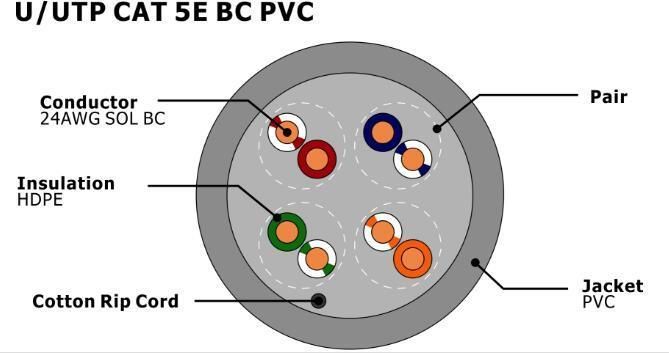

Cross Section
Application
• Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 5e and
ISO 11801 2nd Edition Class D channel standards.
• Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5
Category 5e component standards.
• Third party tested to Category 5e channel compliance.
• Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
• Descending length cable markings enable easy identification of remaining cable
which reduces installation time and cable scrap.
• Color Availability: Additional cable colors available.
Order Informations
Marking
U/UTP CAT 5E 4PR 24AWG PVC XXX (or Per customer's request)
Inner Package
305m/Spool,305m/Reel (or Per customer's request)
Outer Package
Color Box, Pallet (or Per customer's request)
Delivery time
Normally 25 days after received the deposit.
