• Model NO.：ADSS
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Optelec
• Sheath Material：PE Sheath
• Span：100m to 1000m
• Transport Package：Wooden Drum
• Specification：Ieeep1222
• Trademark：Powtech
• Origin：China
• HS Code：85389000
• Production Capacity：500km,Month

Basic Info.

Model NO. ADSS Certification RoHS, UL, CE, ISO9001, VDE, CCC Brand Optelec Sheath Material PE Sheath Span 100m to 1000m Transport Package Wooden Drum Specification Ieeep1222 Trademark Powtech Origin China HS Code 85389000 Production Capacity 500km/Month

Product Description

ADSS cable All-dielectric Self-supporting Optical Cable


Description:
ADSS cable is the short form for All-dielectric Self-supporting Optical Cable. ADSS fiber optic cable is loose tube stranded;

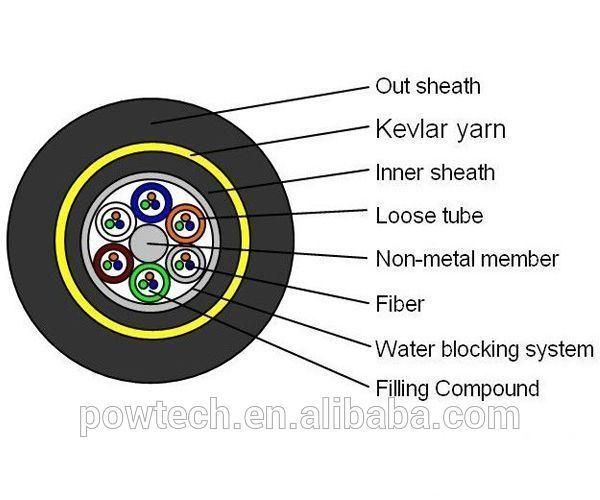

Structure:

1. Optical fiber cable
2. Fiber jelly
3. PBT loose tube
4. Filling compound
5. Central strength member FRP
6. Filling rope
7. PE inner sheath
8. Aramid yarn
9. Outer sheath

Notes: The use of power corrosion resistant sheaht is depended on power of ADSS optical fiber cable
PE shealth is used when power is less than or equal to 12KV;
Power corrosion resistant sheath (AT sheath) is used when power is more than 12KV.

ADSS Cable laying mode: Self supporting overhead
ADSS Cable operation temperature: -40C~ +65 degreeC

Features:
(1) Lightweight and small diameter reduces the impact of ice and wind, and their impact on tower and supporter.
(2) Large span length: Max span>1000 meters, and the optical cable can be installed without electrical outage.

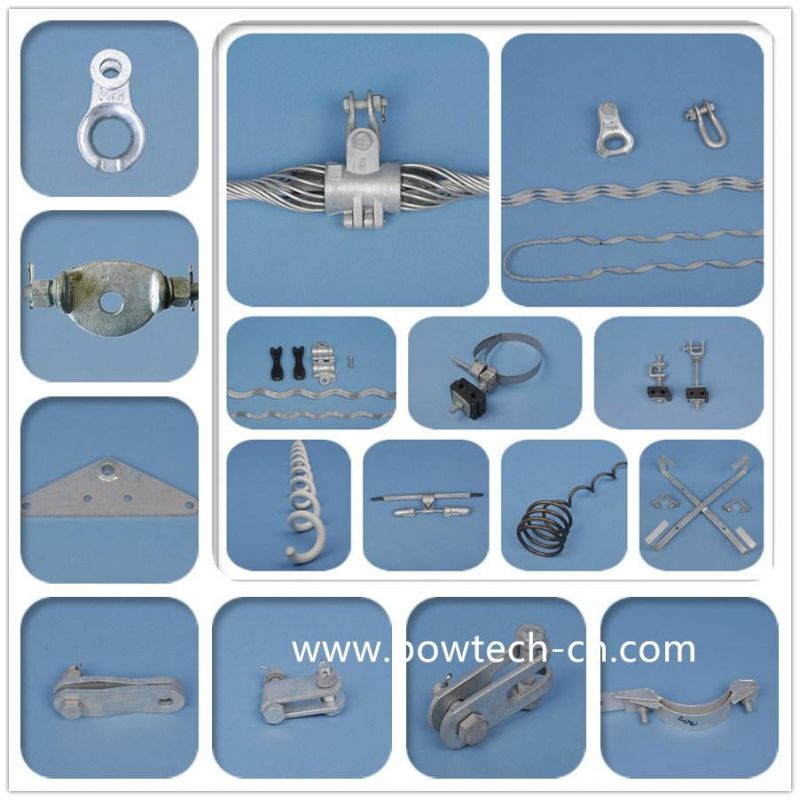

(3) Project design added (sag-tension, field intensity calculation, hanging point selection, hardware fittings configuration).

Designation	Diameter (mm)	RTS(N)	MAT(N)	EDS(N)	Kg/km
2~24 core
ADSS-AT(PE)xx -4KN	12.2	9698	3879	2425	121
ADSS-AT(PE)xx -6KN	12.5	14108	5643	3527	126
ADSS-AT(PE)xx -9KN	12.9	22928	9171	5732	135
ADSS-AT(PE)xx -12KN	13.3	30645	12258	7661	143
ADSS-AT(PE)xx -15KN	13.6	37260	14904	9315	149
ADSS-AT(PE)xx -18KN	13.9	44978	17996	11245	157
ADSS-AT(PE)xx -21KN	14.3	52695	21078	13174	164
ADSS-AT(PE)xx -24KN	14.6	60413	24165	15103	172
ADSS-AT(PE)xx -26KN	14.8	65925	26370	16481	177
26~36 core
ADSS-AT(PE)xx -4KN	12.8	9698	3879	2425	133
ADSS-AT(PE)xx -6KN	13.0	14108	5643	3527	138
ADSS-AT(PE)xx -9KN	13.4	22928	9171	5732	146
ADSS-AT(PE)xx -12KN	13.8	30645	12258	7661	154
ADSS-AT(PE)xx -15KN	14.1	37260	14904	9315	161
ADSS-AT(PE)xx -18KN	14.4	44978	17996	11245	168
ADSS-AT(PE)xx -21KN	14.7	52695	21078	13174	175
ADSS-AT(PE)xx -24KN	15.1	60413	24165	15103	183
ADSS-AT(PE)xx -26KN	15.3	65925	26370	16481	188

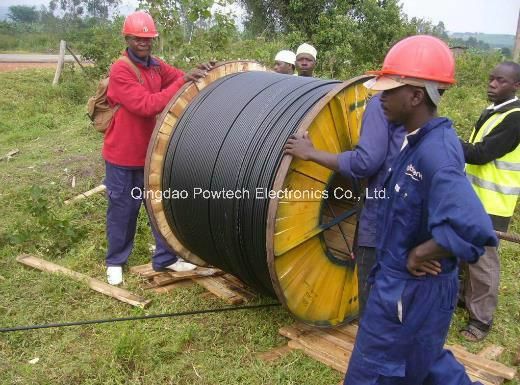

Installation Guide:

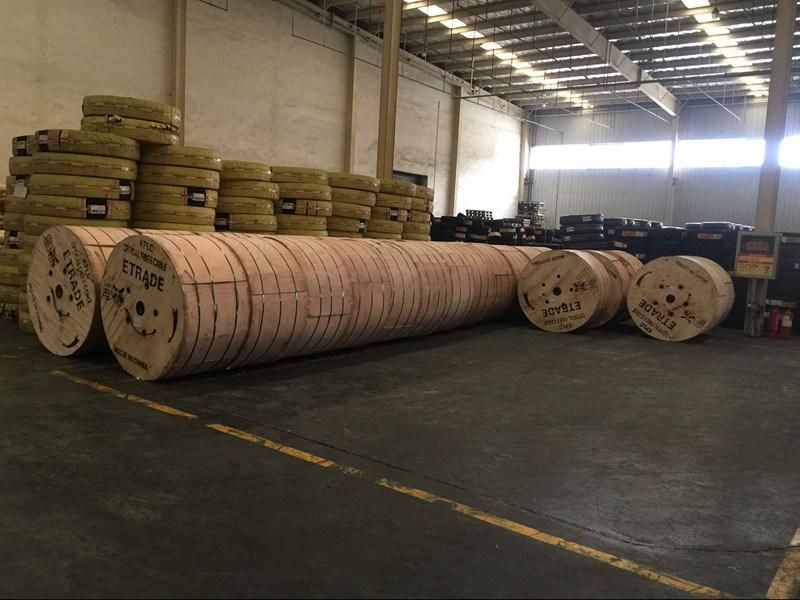

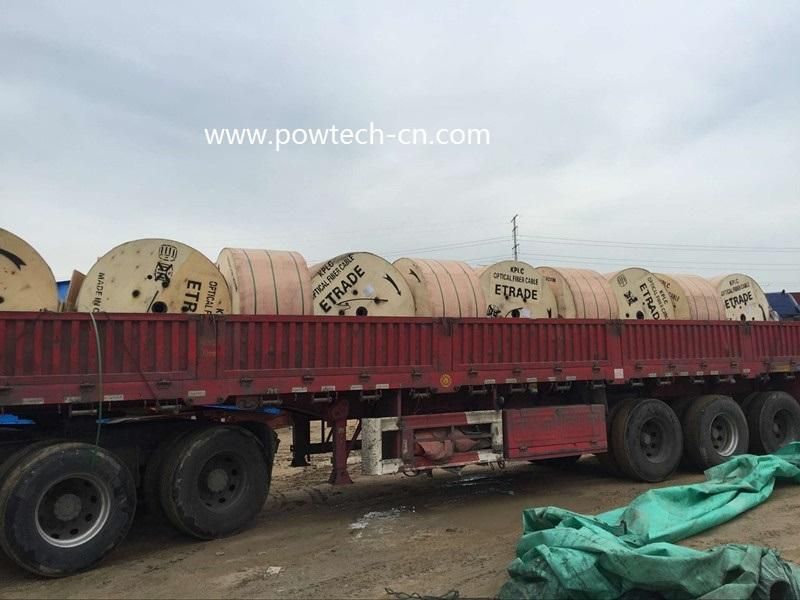

Package&Shipment:
