• Model NO.：AWM1668
• Material Shape：Round Wire
• Range of Application：Heating Element
• Certification：ISO9001, UL, CCC, RoHS
• Brand：Fongming
• Name：FEP Cable
• Temperature：200deg.C
• Voltage：300V
• Color：Optional Red White Blue Black
• Transport Package：Cartons and Pallet
• Specification：AS CUSTOMER REQUIREMENT
• Trademark：FONGMING
• Origin：Yangzhou China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. AWM1668 Material Shape Round Wire Range of Application Heating Element Certification ISO9001, UL, CCC, RoHS Brand Fongming Name FEP Cable Temperature 200deg.C Voltage 300V Color Optional Red White Blue Black Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

UL1668 300V 200C FEP Insulation and Jacket Multi core FEP Cable

Description
Name:FEP Cable
Model:AWM1668
Size:2*18~7*14AWG

Feature
Rated Voltage:300V
Rated temperature: -60ºC~+200ºC

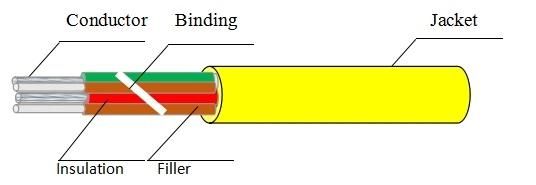

Structure
Conductor: Tinned Copper,Nickel Plated Copper
Insulation:Extruded FEP
Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
Jacket:FEP
Standard:UL758,UL1581



Size (AWG)	Conductor Structure  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Cabling Diameter	Jacket Thickness (mm)	O.D. (mm)
2*18	7/0.39	1.17	0.25	1.70	3.40	0.51	4.4±0.2
3*18	7/0.39	1.17	0.25	1.70	3.70	0.51	4.7±0.2
4*18	7/0.39	1.17	0.25	1.70	4.10	0.51	5.1±0.3
5*18	7/0.39	1.17	0.25	1.70	4.60	0.51	5.6±0.3
6*18	7/0.39	1.17	0.25	1.70	4.80	0.51	5.8±0.3
7*18	7/0.39	1.17	0.25	1.70	5.10	0.51	6.1±0.3
2*16	19/0.3	1.50	0.25	2.00	4.00	0.51	5.0±0.3
3*16	19/0.3	1.50	0.25	2.00	4.30	0.51	5.4±0.3
4*16	19/0.3	1.50	0.25	2.00	4.80	0.51	5.9±0.3
5*16	19/0.3	1.50	0.25	2.00	5.40	0.51	6.5±0.3
6*16	19/0.3	1.50	0.25	2.00	5.60	0.51	6.7±0.3
7*16	19/0.3	1.50	0.25	2.00	6.00	0.51	7.1±0.4
2*14	19/0.37	1.85	0.25	2.40	4.80	0.51	5.8±0.3
3*14	19/0.37	1.85	0.25	2.40	5.20	0.51	6.2±0.3
4*14	19/0.37	1.85	0.25	2.40	5.80	0.51	6.8±0.3
5*14	19/0.37	1.85	0.25	2.40	6.50	0.51	7.5±0.4
6*14	19/0.37	1.85	0.25	2.40	6.70	0.51	7.7±0.4
7*14	19/0.37	1.85	0.25	2.40	7.20	0.51	8.2±0.4


Packaging & Shipping

Company Information
Yangzhou Fongming Cable Factory located in Yangzhou City, Jiangsu Province, which is near Shanghai. Fongming Cable specialized in the field of wire& cable for more than 15 years. We are a professional manufacturer for universal and special wires including UL high temperature wires, multicore fiberglass braided wires, silicone wires, PVC wires, thermocouple wires etc.



Factory Size (Sq.meters):	35000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying County ,Yangzhou City,Jiangsu, China
Number of Production Lines:	30
Staff:	148 People
Contract Manufacturing:	OEM Service Offered   Design Service Offered Buyer Label Offered
