• Model NO.：GYXY
• Core：2-24
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Efon
• Sheath Material：HDPE,LSZH Sheath,Flame Retardant Sheath,Anti-Roden

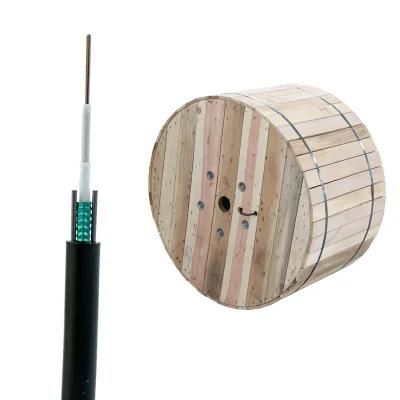

• Cable Structure：Uni-Loose Tube Non Armor
• Fiber Count：2-24
• Fiber Options：Itu G652D, G657A, Om1, Om2, Om3, Om4
• Installation Tensile：1000n
• Bend Radius (Under Installation)：20 X External Diameter of Cable
• Strength Member：Steel Wire or FRP
• Material of Jacket：Black Polyethylene (PE)
• Certifications：ISO9001,Ce,RoHS
• Temperature：40 -70
• Warranty (Year)：2
• Transport Package：Wooden Drum Iron-Wooden Drum with Fumigated or Not
• Specification：CE SGS
• Trademark：OEM
• Origin：China
• HS Code：85447000
• Production Capacity：300km,Week

Fiber Type

G.652

G.655

50/125^m

62.5/125^m

Attenuation

(+20X)

850 nm

<3.0 dB/km

<3.3 dB/km

1300 nm

<1.0 dB/km

<1.0 dB/km

1310 nm

<0.36 dB/km

<0.40 dB/km

1550 nm

<0.22 dB/km

<0.23 dB/km

Bandwidth

850 nm

>500 MHz-km

>200 Mhz-km

1300 nm

>500 MHz-km

>500 Mhz-km

Numerical Aperture

0.200±0.015 NA

0.275±0.015 NA

Cable Cut-off Wavelength cc

<1260 nm

<1450 nm

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

                (N)

Allowable Crush Resistance
               (N/100mm)

Short Term

Long Term

Short Term

Long Term

2~12

6.2

52

1000

400

1000

1000

14~24

7.0

64

1200

500

1000

1000

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

                (N)

Allowable Crush Resistance
               (N/100mm)

Short Term

Long Term

Short Term

Long Term

2~12

6.2

45

600

250

1000

1000

14~24

7.0

56

800

300

1000

1000

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

You May Like

Payment

For large orders, T/T , L/C, and E-credit lines are all offered.

For small orders, credit-cards are accepted.

Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.

Return and Warranty:

All products have been tested before ship out

All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.
