• Model NO.：LW-PIISO
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：OEM
• Sheath Material：PVC
• Wavelength：1064,1310,1480nm
• Stage：Single Stage,Dual Stage

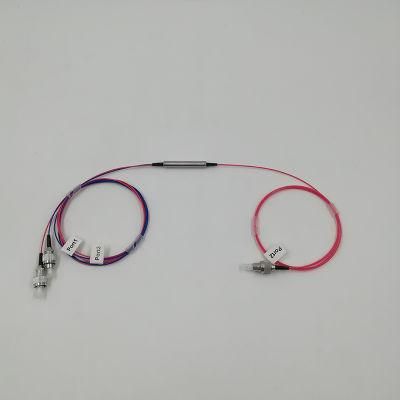

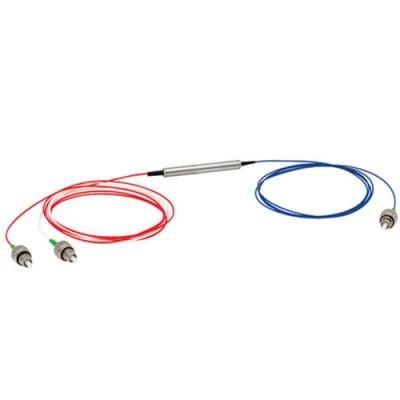

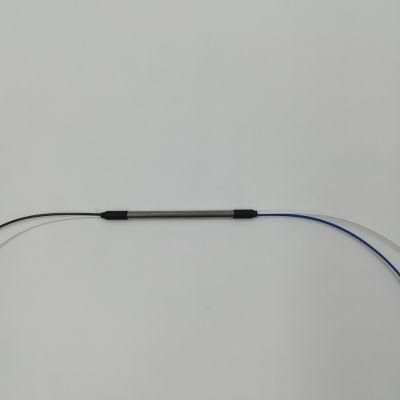

• Product Name：1064,1310,1480nm Fiber Pm Optical Isolator
• Operating Wavelength Range：±20
• Fiber Type：Pm Panda Fiber
• Max. Tensile Load(N)：5
• Dimensions：5.5X35
• Transport Package：Blister Box Packaging
• Specification：5.5x35mm
• Trademark：LIGHTWIT
• Origin：Shenzhen
• HS Code：85414000
• Production Capacity：10000PCS,Month

    Parameters

Unit

                        Value

Stage



Single Stage

Dual Stage

Single Stage

Dual Stage

Center Wavelength(λc)

nm

1310,1480 or 1550

           1064

Operating Wavelength Range

nm

            ±20

           ±5

Typ.Peak Isolation

dB

     42

     58

     40

     55

Isolation at Room temperature

dB

    ≥28

    ≥48

    ≥35

    ≥45

Typ.lnsertion Loss at Room temperature

dB

     0.4

     0.5

     1.5

     2.4

Insertion Loss at operation temperature

dB

    ≤0.55

    ≤0.65

   ≤1.8

   ≤3.2

Return Loss (lnput/Output)

dB

    ≥55

    ≥55

   ≥55/50

   ≥55/50

Extinction Ratio(only for B type)

dB

    ≥20

    ≥20

   ≥20

   ≥20

Extinction Ratio(only for F type)

dB

    ≥25

    ≥25

   ≥23

   ≥23

Power handling(CW)

mW

                          ≤500

Max.Tensile Load

N

                           ≤5

Fiber Type



           PM 1310,1480,1550 Panda Fiber

Operating Temperature

ºC

                         -5 to +70

Storage Temperature

ºC

                         -40 to +85



4. Spesifications5. Ordering lnformation

1	2	3	4	5	6	7	8
Type	wavelength	Grade	Power Handling	Axis Alignment	Pigtail Diameter	Fiber Length	Connector
S:Single stage D:Dual stage	13:1310nm 14:1480nm 15:1550nm XX: Others	P:P Grade A:A Grade	L:<0.3W 1:1W 2:2W 5:5W 10:10W	B:Both axis working F: Fast axis blocking	25:250μm bare fiber 90:900μm Loose Fiber XX: Others	08:0.8m 10:1.0m XX: Others	00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC XX: Other

f you need to customize other specifications, please provide detailed description for your requirement.

Our Company


Shenzhen Lightwit Photonics Co., Ltd.,established in 2000, is one of a high-tech companies specialized in developing and manufacturing fiber optic components and communication network products and also serving network engineerings. Our fiber optic products can be widely applied to data-video transmission,CATV, long-distance monitoring,local network system,intelligentized buildings, broad-band-networks, military and satellite communication etc.

We are continuously developing the advanced fiber optic communication technologies so that we can provide per fect service and high quality products to our customers. If you have any inquiries,please contact us for any time.
