Polyesterimide Enamelled Copper Wire Magnet Wire Winding Wire Rewinging Wire Magnet Wire Enameled Copper Wire (EIW/180)
Zhejiang Grandwall Electric Science & Technology Co., Ltd.- Insulation Level：H
- Certification：ISO9001, UL, RoHS, Reash
- Brand：Shenzhou
- Application：Transformer, Instrument, Motor
- Shape：Round Wire
- Conductor Material：Copper Wire
Base Info
- Model NO.：Eiw,180
- Diameter：0.06-4.5
- UL No.：E206121
- Standard：IEC;JIS C;NEMA;GB
- Transport Packing：Wooden Box;Pallet
- H S Code：8544110000
- Thermal：180
- Conductor Type：Solid
- Enamelled Types：Enamelled Types
- Product Name：Eiw,180
- Transport Package：Cartons, Wooden Box
- Specification：IEC60317-8 JIS C3202 MW 30-C MW72-C
- Trademark：n,n
- Origin：China
- HS Code：854411
- Production Capacity：200000
Description
Basic Info.
Model NO. Eiw/180 Diameter 0.06-4.5 UL No. E206121 Standard IEC;JIS C;NEMA;GB Transport Packing Wooden Box;Pallet H S Code 8544110000 Thermal 180 Conductor Type Solid Enamelled Types Enamelled Types Product Name Eiw/180 Transport Package Cartons, Wooden Box Specification IEC60317-8 JIS C3202 MW 30-C MW72-C Trademark n/n Origin China HS Code 854411 Production Capacity 200000Product Description
The insulation layer of EIW is Polyesterimide, which is composed of Terephthalate and Esterimide. It has good temperature, stability and insulation characteristics when it is continuously operated at 180 ºC
Characteristic:
High heat resistance and excellent chemical resistance
(1) Good film adhesion, heat resistance and chemical resistance
(2) Good insulation properties and dood thermostability under 150ºC working environment, good resistance to abrasion and solvent

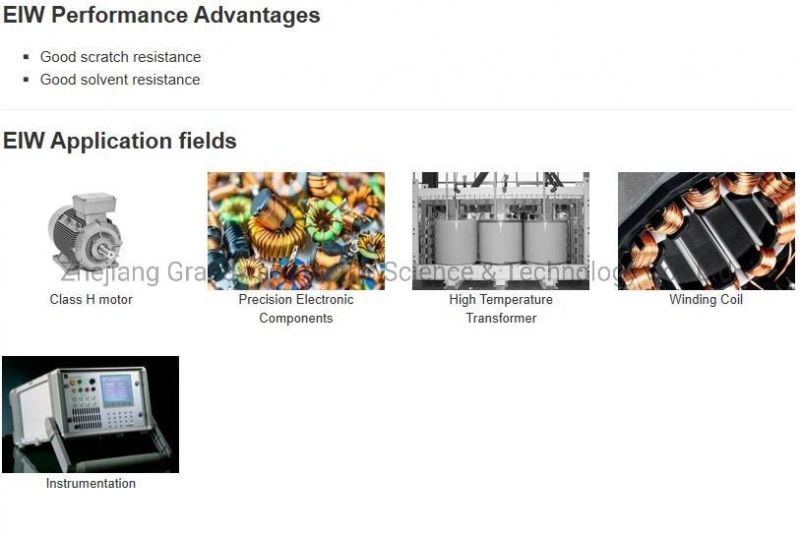

Typical Applications:
Applied in all sizes of H class motors, transformers, instrumentations, various types of electronic components and winding for coils. Motors, Relays, Transformers, Encapsulated coils, Tool motors Fractional and integral HP motors
