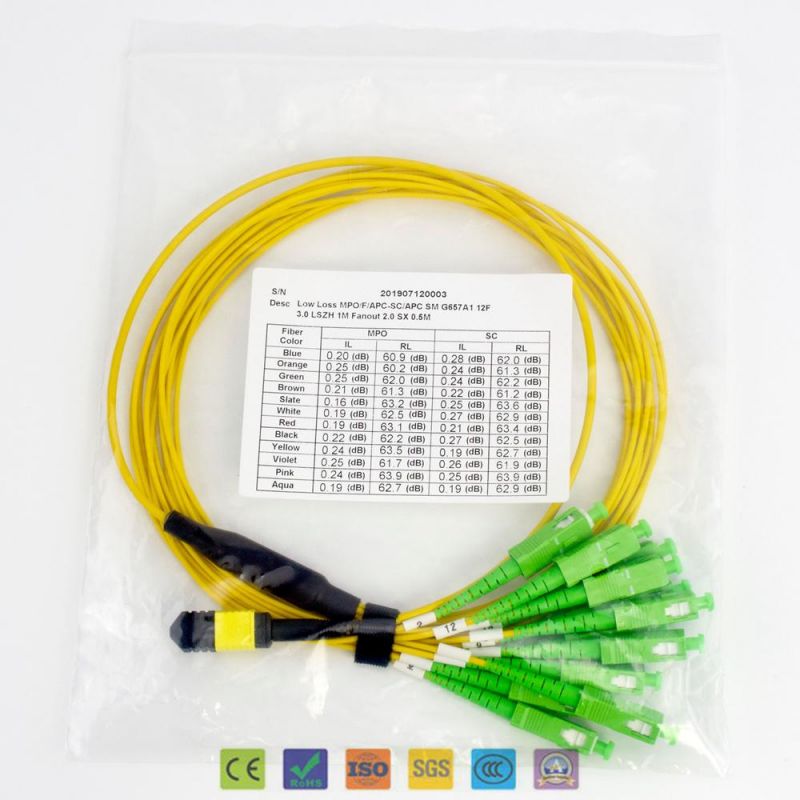

• Model NO.：MPO Patch cord
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Takfly
• Sheath Material：LSZH
• Connector a：Sc , FC , LC , St , MPO , MTP , Mu , MTRJ , E2000
• Connector B：MPO ,MTP
• Fiber Mode：50,125um
• Wavelength：850,1300nm,1310,1550nm
• Polish Type：Single Mode ( Upc and APC ) , Multi Mode ( PC )
• Minimum Bend Radius：7.5mm
• Insertion Loss：0.35dB Max (0.15dB Typ.)
• Return Loss：Mmpc20dB,Smapc60dB
• Cable Diameter：0.9,2.0,3.0
• Outer Sheath Material：PVC,LSZH
• Bending Radius Static/Dynamic：10d,20d
• Length：Customized
• Bending Radius (Static/Dynamic)：10d,20d
• Fiber Count：Simple , Duplex , 4 Core , 6core ,
• Cable Type：G652D , G657A1 , G657A2 ,G655 , Om1 , Om2 , Om3-15
• Transport Package：Standard Carton Packing or Customer Required
• Specification：LSZH Jacket
• Trademark：Takfly
• Origin：Shenzhen China
• HS Code：8542900000
• Production Capacity：10000,Week

Connector ALC,SC,ST,FC....... Connector BMPO/MTPFiber ModeSM(G652,G655,G657);MM(OM1-OM5) 50/125μmWavelengthSM:1310/1550
MM:850/1300Polish TypePC,UPC and APC Minimum Bend Radius7.5mmInsertion LossStandard:≤0.35/0.7(Typical/Max)
Low Loss:≤0.2/0.35(Typical/Max)Return LossSM:APC:60dB
MM:PC:25dBAttenuation at 850nm≤2.3dB/kmAttenuation at 1300nm≤0.6dB/kmJacket OD3.0mmCable JacketPVC,LSZHInstallation Tensile Load100 NLong-Term Tensile Load50 NOperating Temperature-10°C to +70°CStorage Temperature-40°C to +85°C
How to order Optical fiber patch cord?

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

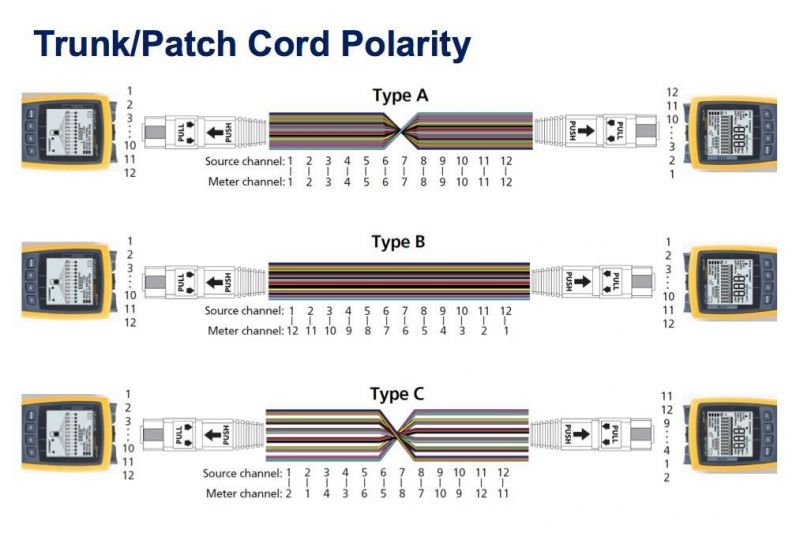

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
9.Insertion/ Return Loss:Standard/Low Loss
10.Type:Pigtail/Patch Cord/LGX Box/Patch Panel

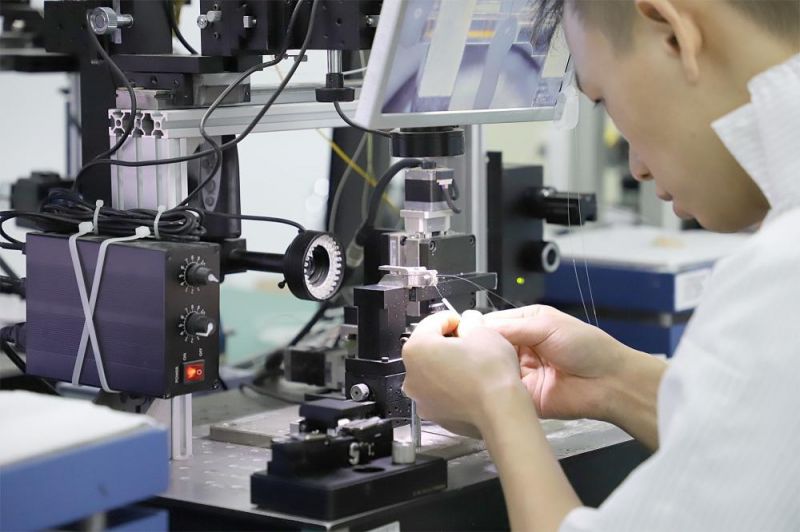

OUR FACTORY/CERTIFICATE:
