• Model NO.：power cable
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, SGS
• Model：YJV
• Brand：Hongda
• Standard：IEC 60502
• No. of Cores：1 Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores
• Armour：Aluminum,Galvanized Steel,Steel Wires
• Transport Package：Steel & Wooden Drum or Customer Requirement
• Specification：10 sqmm to 240 sqmm
• Trademark：Hongda, accept OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：300km,Month

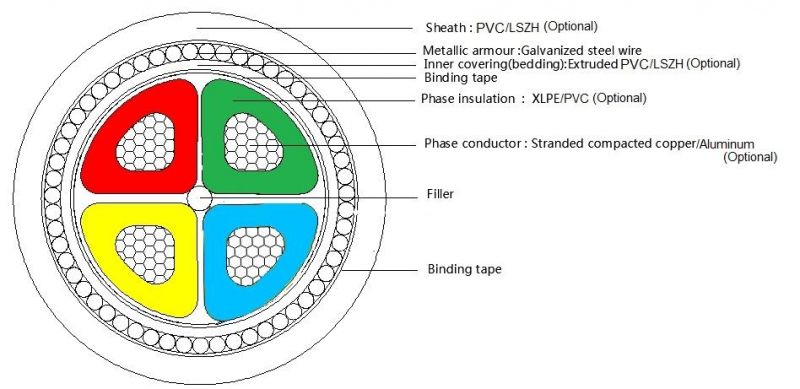

Conductor:annealed copper or of plain aluminium or aluminium alloyInsulation:XLPE / PVC material

Sheath:PVC compoundsheath colour:black
Technical data:Temperature range: during installation:-5 °C up to +50 °Cfixed installed:-30 °C up to +70 °Cat short circuit of max. 5 s:up to 160 °CNominal voltage:Uο/U = 0,6/1 kVTest voltage:4 kVMax. operating voltage in three-phase systems:1,2 kVMaximal tensile strength:50 N/mm²Behaviour in fire:IEC 60332-1Minimal inner bending radius: single core:15Dmulti core:12D
Dimensions:

Single core(unarmoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
1x1.5	1.4	0.7	1.4	5.6
1x2.5	1.8	0.7	1.4	6.0
1x4	2.3	0.7	1.4	6.5
1x6	2.8	0.7	1.4	7.0
1x10	3.6	0.7	1.4	7.8
1x16	4.5	0.7	1.4	8.7
1x25	5.6	0.9	1.4	10.2
1x35	6.7	0.9	1.4	11.3
1x50	8.0	1	1.4	12.8
1x70	9.4	1.1	1.4	14.4
1x95	11.0	1.1	1.5	16.1
1x120	12.4	1.2	1.5	17.8
1x150	13.8	1.4	1.6	19.8
1x185	15.3	1.6	1.6	21.8
1x240	17.5	1.7	1.7	24.4
1x300	19.5	1.8	1.8	26.7
1x400	22.6	2	1.9	30.5
1x500	25.2	2.2	2.0	33.7
1x630	28.3	2.4	2.2	37.4
1x800	31.9	2.6	2.3	41.7
1x1000	35.7	2.8	2.4	46.2

Two cores(unarmoured)


Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
2x1.5	1.4	0.7	1.8	9.2
2x2.5	1.8	0.7	1.8	10.0
2x4	2.3	0.7	1.8	11.0
2x6	2.8	0.7	1.8	12.0
2x10	3.6	0.7	1.8	13.6
2x16	4.5	0.7	1.8	15.4
2x25	5.6	0.9	1.8	18.4
2x35	6.7	0.9	1.8	20.6
2x50	8.0	1	1.8	23.6
2x70	9.4	1.1	1.8	26.8
2x95	11.0	1.1	1.9	30.2
2x120	12.4	1.2	2.0	33.7
2x150	13.8	1.4	2.2	37.5
2x185	15.3	1.6	2.3	41.6
2x240	17.5	1.7	2.5	46.7
2x300	19.5	1.8	2.6	51.4
2x400	22.6	2	2.9	58.9

Three cores(unarmoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
3x1.5	1.4	0.7	1.8	9.6
3x2.5	1.8	0.7	1.8	10.5
3x4	2.3	0.7	1.8	11.6
3x6	2.8	0.7	1.8	12.6
3x10	3.6	0.7	1.8	14.4
3x16	4.5	0.7	1.8	16.3
3x25	5.6	0.9	1.8	19.5
3x35	6.7	0.9	1.8	21.9
3x50	8.0	1	1.8	25.1
3x70	9.4	1.1	1.9	28.7
3x95	11.0	1.1	2.0	32.4
3x120	12.4	1.2	2.1	36.1
3x150	13.8	1.4	2.3	40.3
3x185	15.3	1.6	2.4	44.6
3x240	17.5	1.7	2.6	50.2
3x300	19.5	1.8	2.7	55.2
3x400	22.6	2	3.0	63.3

Three cores+1(unarmoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	(3)mm	(1)mm	(3)mm	(1)mm	mm	mm
3x 16/10	4.5	3.6	0.7	0.7	1.8	17.5
3x 25/16	5.6	4.5	0.9	0.7	1.8	21.2
3x 35/16	6.7	4.5	0.9	0.7	1.8	23.8
3x 50/25	8	5.6	1	0.9	1.8	27.5
3x 70/35	9.4	6.7	1.1	0.9	2.0	31.7
3x 95/50	11	8	1.1	1	2.1	35.8
3x120/70	12.4	9.4	1.2	1.1	2.3	39.9
3x150/70	13.8	9.4	1.4	1.1	2.4	44.6
3x185/95	15.3	11	1.6	1.1	2.6	49.5
3x240/120	17.5	12.4	1.7	1.2	2.8	55.7
3x300/150	19.5	13.8	1.8	1.4	3.0	61.4
3x400/185	22.6	15.3	2	1.6	3.2	70.4

Four cores(unarmoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
4x1.5	1.4	0.7	1.8	10.4
4x2.5	1.8	0.7	1.8	11.3
4x4	2.3	0.7	1.8	12.5
4x6	2.8	0.7	1.8	13.7
4x10	3.6	0.7	1.8	15.7
4x16	4.5	0.7	1.8	17.8
4x25	5.6	0.9	1.8	21.5
4x35	6.7	0.9	1.8	24.1
4x50	8.0	1	1.8	27.8
4x70	9.4	1.1	2.0	32.0
4x95	11.0	1.1	2.1	36.1
4x120	12.4	1.2	2.3	40.2
4x150	13.8	1.4	2.4	44.9
4x185	15.3	1.6	2.6	49.8
4x240	17.5	1.7	2.8	56.0
4x300	19.5	1.8	3.0	61.7
4x400	22.6	2	3.2	70.7

Multi-cores(unarmoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
5x1.5	1.4	0.7	1.8	11.2
7x1.5	1.4	0.7	1.8	12.0
10x1.5	1.4	0.7	1.8	14.8
12x1.5	1.4	0.7	1.8	15.2
14x1.5	1.4	0.7	1.8	16.0
19x1.5	1.4	0.7	1.8	17.6
21x1.5	1.4	0.7	1.8	18.4
24x1.5	1.4	0.7	1.8	20.4
30x1.5	1.4	0.7	1.8	21.6
40x1.5	1.4	0.7	1.8	26.0
48x1.5	1.4	0.7	1.8	26.4
61x1.5	1.4	0.7	1.9	29.0
5x2.5	1.8	0.7	1.8	12.2
7x2.5	1.8	0.7	1.8	13.2
10x2.5	1.8	0.7	1.8	16.4
12x2.5	1.8	0.7	1.8	16.9
14x2.5	1.8	0.7	1.8	17.7
19x2.5	1.8	0.7	1.8	19.6
21x2.5	1.8	0.7	1.8	20.6
24x2.5	1.8	0.7	1.8	22.8
30x2.5	1.8	0.7	1.8	24.1
40x2.5	1.8	0.7	1.9	29.4
48x2.5	1.8	0.7	1.9	29.9
61x2.5	1.8	0.7	2.0	32.8

*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length.
