Thhn Thwn Thwn-2 Thw Thw-2 Tw Wire UL Wire 12AWG 10AWG 14AWG Copper PVC Electric Wire Building Flexible Cable
Shanghai QIFAN Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground
- Conductor Material：Copper
- Sheath Material：Nylon
- Insulation Material：PVC
Base Info
- Model NO.：THHN
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC
- Brand：QIFAN
- Standards：UL83
- QC Team：200
- Color：Black Red Yellow Green Blue
- Transport Package：Coils
- Specification：copper wire
- Trademark：QF
- Origin：China
- HS Code：8544492100
- Production Capacity：5000000000km
Description
Size
Section
Cu Cond.
Cond Dia.
PVC Thick
Nylon Thick
OD
AWG
/MCM
Mm2
Wire no./mm
mm
mm
mm
mm
14
2.08
1/1.63
1.63
0.38
0.1
2.59
12
3.31
1/2.05
2.05
0.38
0.1
3.01
10
5.26
1/2.59
2.59
0.51
0.1
3.81
14
2.08
19/0.38
1.9
0.38
0.1
2.86
12
3.31
19/0.47
2.35
0.38
0.1
3.31
10
5.26
19/0.6
3.00
0.51
0.1
4.22
8
8.37
19/0.75
3.75
0.76
0.13
5.53
6
13.3
19/0.95
4.75
0.76
0.13
6.53
4
21.2
19/1.19
5.95
1.02
0.15
8.29
3
26.7
19/1.33
6.65
1.02
0.15
8.99
2
33.6
19/1.5
7.5
1.02
0.15
9.84
1
42.4
19/1.68
8.4
1.27
0.18
11.3
1/0
53.5
19/1.89
9.45
1.27
0.18
12.35
2/0
67.4
19/2.12
10.6
1.27
0.18
13.5
3/0
85
19/2.38
11.9
1.27
0.18
14.8
4/0
107
19/2.67
13.35
1.27
0.18
16.25
250
127
37/2.09
14.63
1.52
0.2
18.07
300
152
37/2.29
16.03
1.52
0.2
19.47
350
177
37/2.47
17.29
1.52
0.2
20.73
400
203
37/2.64
18.48
1.52
0.2
21.92
500
253
37/2.95
20.65
1.52
0.2
24.09
600
304
61/2.52
22.68
1.78
0.23
26.70
750
380
61/2.82
25.38
1.78
0.23
29.40
1000
507
61/3.25
29.25
1.78
0.23
33.27

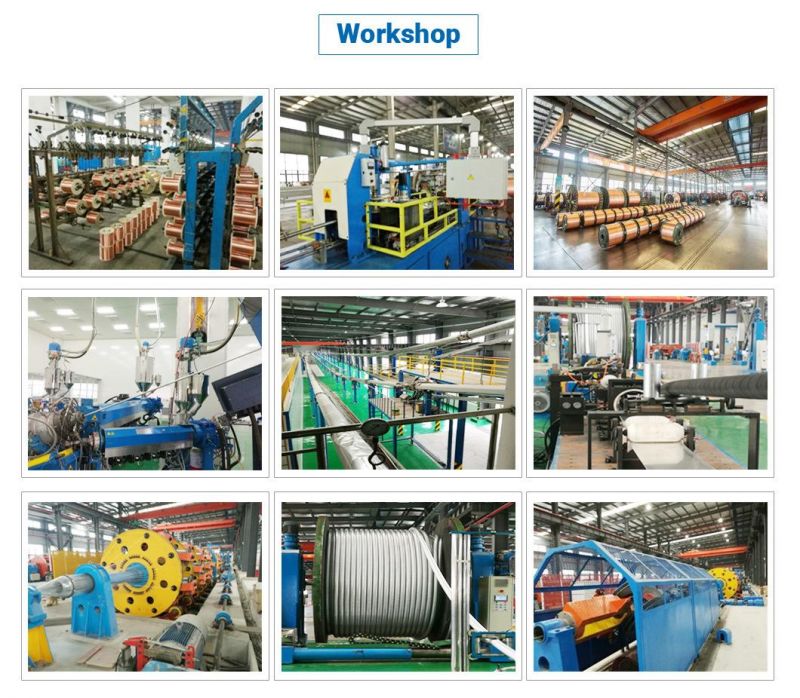

------Our Feature------- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system

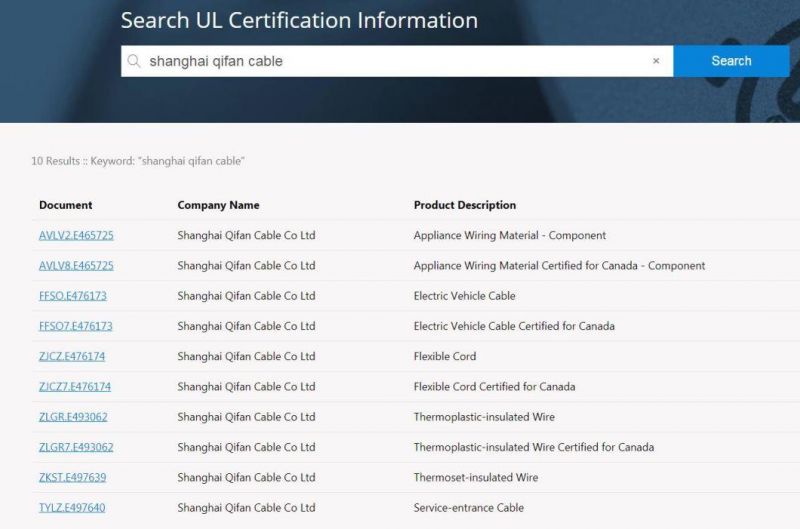

Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
