Magnet Wire Polyesterimide Round Aluminum Wire Enamelled Aluminum Wire Enameled Aluminum Wire Winding Wire Rewinding Wire Super Aluminum Wire (EIW/180)
Zhejiang Grandwall Electric Science & Technology Co., Ltd.- Insulation Level：H
- Certification：ISO9001, UL, RoHS, Reash
- Brand：Shenzhou
- Application：Transformer, Instrument, Motor
- Shape：Round Wire
- Conductor Material：Aluminium Wire
Base Info
- Model NO.：EIWL-2,180
- Diameter：Diameter
- UL No.：E206121
- Standard：IEC;JIS C;NEMA;GB
- Transport Packing：Wooden Box;Pallet
- H S Code：8544110000
- Thermal：180
- Conductor Type：Solid
- Enamelled Types：Enamelled Types
- Product Name：Eiw,180
- Transport Package：Cartons, Wooden Box
- Specification：IEC60317-8 JIS C3202 MW 30-C MW72-C
- Trademark：n,n
- Origin：China
- HS Code：854411
- Production Capacity：200000
Description
Basic Info.
Model NO. EIWL-2/180 Diameter Diameter UL No. E206121 Standard IEC;JIS C;NEMA;GB Transport Packing Wooden Box;Pallet H S Code 8544110000 Thermal 180 Conductor Type Solid Enamelled Types Enamelled Types Product Name Eiw/180 Transport Package Cartons, Wooden Box Specification IEC60317-8 JIS C3202 MW 30-C MW72-C Trademark n/n Origin China HS Code 854411 Production Capacity 200000Product Description
Enameled Aluminum Round wire
Thermal Class:130/155/180/200/220size : 0.16mm-6.0mm

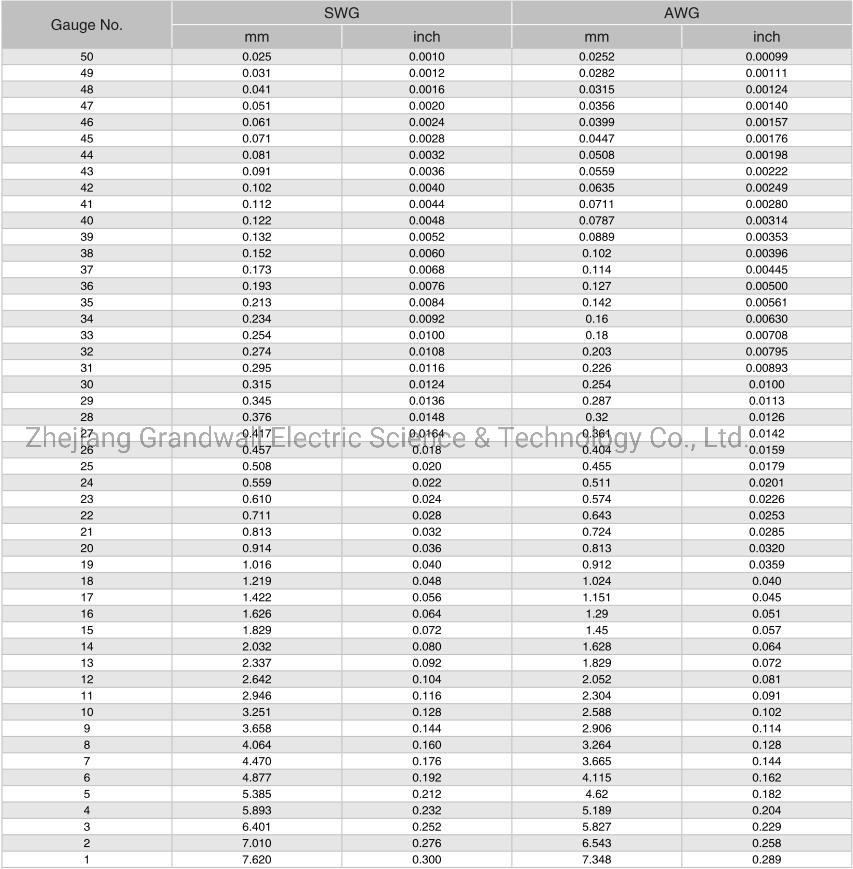

AWG 8-AWG34
SWG38-SWG4
Polyesterimide enameled aluminum round wire(EIW) CLASS180
Product feature: excellent electric , chemical and mechanical properties Product Application : Reactor, microwave oven , high tension transformers, large capacity power tools, washing machine, electric motorsIEC EIW CLASS 180 Polyester-imide aluminium enamelled winding wire

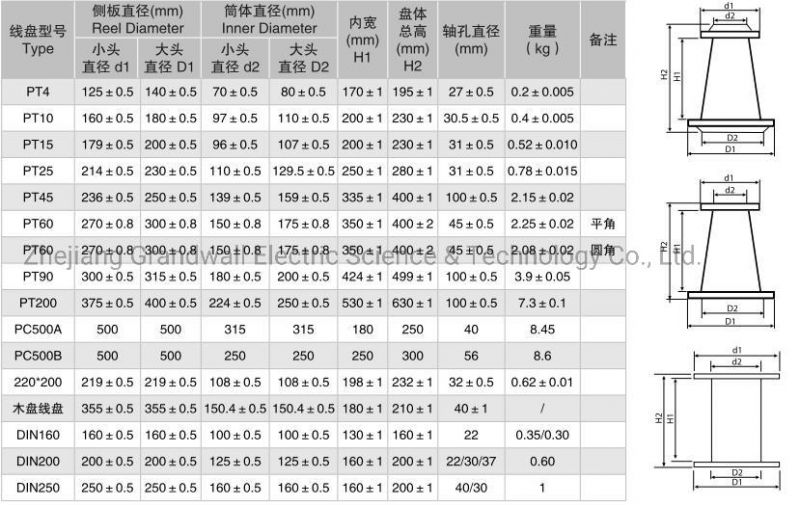

packed by PT30 , PT60 , PT200
