EPR/XLPE/PVC/NR+SBR Insulated Marine Shipboard Power Cable with ABS BV CCS Certificates

Suzhou Platec Import & Export Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：CE, CX, CV, CJ
  • Wire Core Material：Red Copper Wire
  • Certification：ISO, CCC, CE, RoHS, UL, VDE, ABS
  • Certificates：CCS, ABS, Dnv, BV, Lrs, Gl, Rina, Kr, Nk.
  • Insulation：XLPE,Epr,PVC,Nr+SBR
  • Conductor：Tinned Copper Wire, Class2 or 5
  • Inner Sheath：PVC,Pcp,Po(Shf1, Shf2),Csp
  • Shield/Armor：Tinned Copper Wire Braided,Galvanized Steel Wire B
  • Outer Sheath：PVC,Pcp,Po(Shf1, Shf2) or No Outer Sheath
  • Fire Resistant：Mica Tape on Request
  • Tape：Non-Woven Fabric
  • Filler：Polypropylene,Rope,Tape(PP),Paper
  • Production Capacity：500000m,Month

Description

Basic Info.

Model NO. CE, CX, CV, CJ Wire Core Material Red Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE, ABS Certificates CCS, ABS, Dnv, BV, Lrs, Gl, Rina, Kr, Nk. Insulation XLPE/Epr/PVC/Nr+SBR Conductor Tinned Copper Wire, Class2 or 5 Inner Sheath PVC/Pcp/Po(Shf1, Shf2)/Csp Shield/Armor Tinned Copper Wire Braided/Galvanized Steel Wire B Outer Sheath PVC/Pcp/Po(Shf1, Shf2) or No Outer Sheath Fire Resistant Mica Tape on Request Tape Non-Woven Fabric Filler Polypropylene/Rope/Tape(PP)/Paper Production Capacity 500000m/Month

Product Description

Company introduction:
Our company PTC Marine Co.Ltd is a member of China Machinery&Engineering Suzhou Co.Ltd(CMEC Suzhou Co,Ltd), it is located in Suzhou China, we are the manufacture of  Marine Cables for more than 20 years, with  ABS,BV,CCS,CCC,ISO9001:2008,etc.

Product desription:
EPR/XLPE/PVC/NR+SBR Insulated Marine Shipboard Power Cable with ABS BV CCS Certificates
Rating voltage: 0.6/1kv

Marine cables Application:
Marine cable is intended for power,lighting and control system of shipboard and off-shore building and it is also available to metallurgical industry,chemical works,power plant and mine etc.

Marine cables Classification Society Certificates:
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.

International Standards applied:
IEC60228  IEC60092-350  IEC60092-351  IEC60092-353  IEC60092-359
IEC60332-1  IEC60332-3-22  IEC60331  IEC60754-2   IEC60134-2
JIS C 3410 standards
JIS C 3002      JIS C 3005
JIS K 1433       JIS K 8422
DIN standards
DIN89158
DIN89159
DIN89160

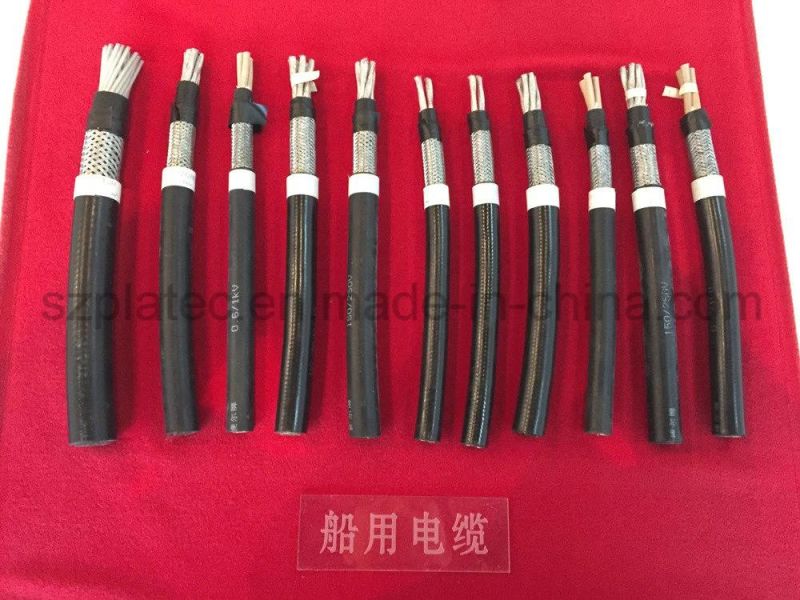

Marine cables construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR/PVC/NR+SBR
4. Filler:Polypropylene/rope/tape(PP)/paper
5. Tape:Non-woven fabric
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)/CSP
7. shield/Armor: tinned copper wire braided/Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2) or no outer sheath

Marine cables Specifications:
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2

Marine cables Flammability features and other constructions:
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
R:Flexible conductor with construction
P:Wire or twisted pair with individual shield
