Direct Buried Underground Anti-Crush Optical Fiber Cable GYTY53
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Underground Optical Fiber Cable
- Type：Single-Mode or Multi-Mode
- Connection Structure：Underground Optical Fiber Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：Short Term 3000n; Long Term 1000n
- Allowed Tensile Strength：Short Term 3000n; Long Term 1000n
Base Info
- Model NO.：GYTY53
- Core：2-288 Core
- Certification：RoHS, ISO9001, Reach, Tlc, etc
- Brand：Tw-Scie or OEM
- Sheath Material：MDPE , HDPE , LSZH PE
- Model No：GYTY53 Underground Optical Fiber Cable
- Fiber Count：2-288 Core
- Loose Tube Material：PBT

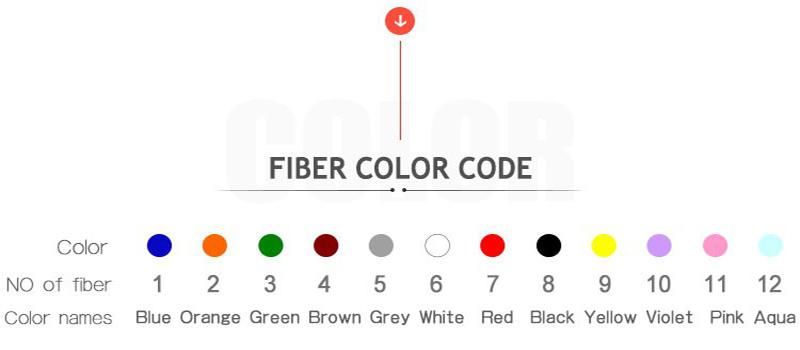

- Color of Loose Tube：Blue, Orange, Green, Brown, Grey, White, Red etc
- Central Strength Member：Steel Wire or FRP
- Single Armour Material：Corrugated Steel Tape Under PE Sheath
- Core Moisture Protection Methodology：Water Blocking Tape or Filling Compound
- Installation Style：Direct-Burial, Duct
- Transport Package：Wooden Drum
- Specification：SGS ROHS REACH ISO
- Trademark：TW-SCIE or OEM
- Origin：Dongguan, Guangdong, China (Mainland)
- HS Code：854470000
- Production Capacity：200km,Day
Description
Technical data:Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm) Static Dynamic Short term Long term Short term Long term 2-24 13.3 210 12.5 times O.D. 25 times O.D. 3000 1000 3000 1000 26-36 13.6 220 38-60 14.1 225 62-72 14.6 255 74-96 16.2 305 98-120 17.7 350 122-144 19.1 395 146-216 19.6 420 218-240 22.8 530 242-288 25 620
Fiber Optic Cable Applications:
1. Adopted to Outdoor distribution
2. Suitable for direct buried method
3. Long distance and local area network communication
4. Used outdoor cabling
Fiber Optic Cable Feature Description:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight
6. Loose tube filling compound, 100% cable core filling
7. Enhancing moisture-proof
8. Water-blocking material
9. Single Fiber Reinforced Plastic as the central strength memberFiber optic cable cable GYTY53 comply with Standard YD/T 901-2001 as well as IEC 60794-1
Packaging Details: All of our fiber optic cable package are with export wooden drum. Indoor FTTH cable's wooden dimension is 50x50x32cm, delivery length 3km/drum, Outdoor fiber optic cable's wooden dimension is 100cm*73cm*73cm, 0.54CBM, can be load about 44 drums for a 20GP. Also accept custom cable drum from customers. Welcome to contact us!
GYTY53 Direct Burial Single Armored Double Sheath Fiber Optic Cable
GYTY53 Fiber Optic Cable Picture
Fiber Optic Cable Wooden Drum:
The cables will be shipped on disable wooden or treated wooden drums or Steel reel on wooden drums.
Out packing: Protected by wooden batterns.
PS: The inner and outer ends of cable will be capped and made accessible for testing. A direction
Of rotation arrow is marked on the drum together with the identification
Fiber Optic Cable Packing and Shipment:
The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
1. Supplier: As cuctomer required
2. Standard Code(Product Type, Fiber Type, Fiber Count): Aerial/Duct/Buried SM/MM xx F
3. Year of manufacture: Xxx
4. Length marking in meters
5. Cable ID / Drum No.
The accuracy of marking is ± 0.5%. Occasional loss of printing and remarking is in accordance with
Bellcore GR 20 and supersedes earlier marking. Cables can be supplied with a range of single mode
Or multimode fibers and customized printing.
Fiber Optic Cable Testing:
Mechanical testing of Cables is done to determine the quality of the
Cable to withstand mechanical stresses and strains likely to be encountered in its lifetime. Each
Mechanical characteristics can be tested on testing machine for the particular test.
Our advantage:
1. OEM fiber optic cable manufacturer
2. Fiber brand: YOFC, CORNING
3. Quality certification: ISO9001. ROSH. REACH
4. Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5. We known as the fiber optic cable manufacturer for the excellent products quality, competitive prices, fast delivery and good service
Why choose us?
1. Introduction of foreign advanced production equipment and technology, have 14 year production experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.
2. FAST SHIPPING from factory
3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
4. We accept T/T, L/C, Western Union, just choose what you like.
5. We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to ur requirment and description;
