Overhead Bare Aluminum Alloy AAAC Conductor for Power Transmission Line
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CCC, BV
- Brand：Rmjt
- Voltage：0.6-138kv
- Customized：Yes
- Structure：7 ,19 ,37
- Model Number：Alton,Azusa,Anaheim,Alliance,Canton,Cairo,Darien,
- OEM or ODM：Yes
- Standard：ASTM B399,BS En50183
- Transport Package：Wooden Drum
- Specification：ASTM BS GB IEC DIN
- Trademark：RMJT
- Origin：China
- HS Code：7614900000
- Production Capacity：1000000meters,Year
Description
DC Resistance
at 20ºCWire Cond. mm 2 mm 2 mm mm kg/km daN Ω/km 16 15.89 7 1.7 5.1 43.3 444 2.091 25 24.25 7 2.1 6.3 66.2 677 1.3703 35 34.36 7 2.5 7.5 93.8 960 0.9669 50 49.48 7 3 9 135.1 1382 0.6714 50 48.35 19 1.8 9 132.7 1350 0.6905 70 65.81 19 2.1 10.5 180.7 1838 0.5073 95 93.27 19 2.5 12.5 256 2605 0.3579 120 116.99 19 2.8 14 322 3268 0.2854 150 147.11 37 2.25 15.8 406 4109 0.2274 185 181.62 37 2.5 17.5 500.3 5073 0.1842 240 242.54 61 2.25 20.3 670.3 6774 0.1383 300 299.43 61 2.5 22.5 827 8363 0.112 400 400.14 61 2.89 26 1104 11176 0.0838 500 499.63 61 3.23 29.1 1379 13960 0.06709 625 626.2 91 2.96 32.6 1732 17490 0.054 800 802.09 91 3.35 36.9 2218 22402 0.0418 1000 999.71 91 3.74 41.1 2767 27922 0.0335

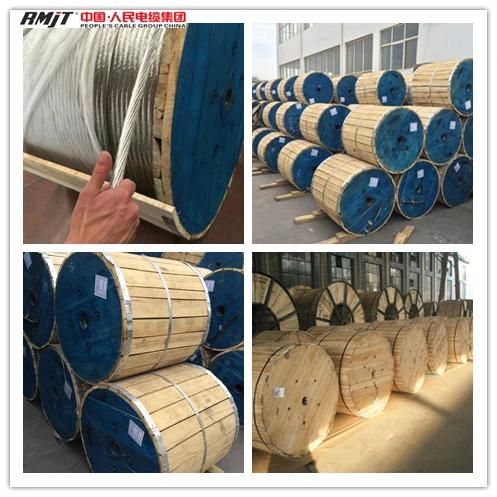

4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.

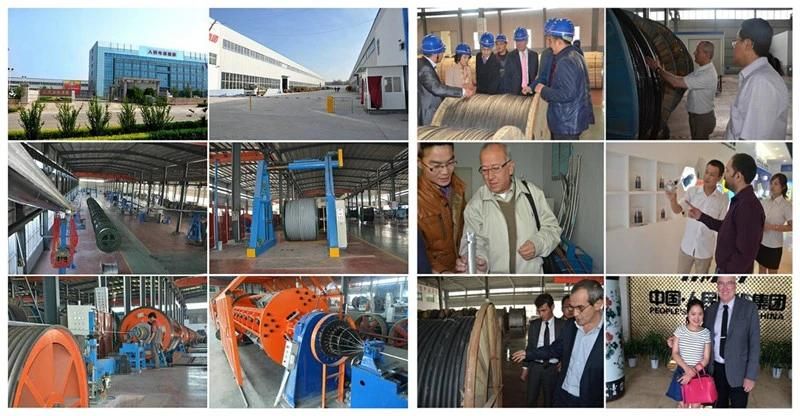

5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
6.Production process:
Aluminum conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
7.Certificate
As first rank of the cable supplier in China, we have obtained CE, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

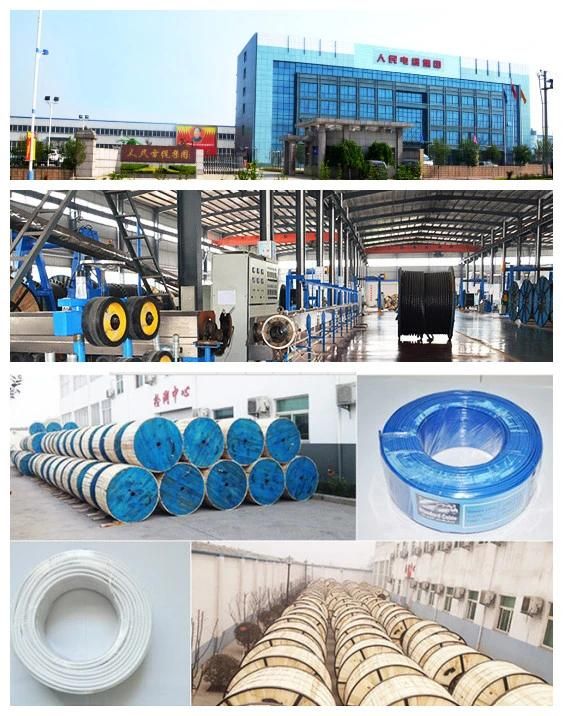

8.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
