• Model NO.：LMR195 LMR200 LMAR300 LMR400 LMR600
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, UL, ETL
• Model：HYA
• Model No.：LMR600
• H.S. Code：85442000
• Impedance：50 Ohms
• Inner Conductor：4.47mm CCA
• Insulation：11.56mm PE
• Shield 1：Al. Foil Bonded
• Shield 2：Tc Wire Braiding
• Outer Conductor：12.50mm
• Jacket：14.99mm PVC
• Transport Package：100m,Coil, 250m,305m,500m,1000m,Wooden Drum
• Specification：ISO9001, CE, RoHs, ETL
• Trademark：HF,OEM
• Origin：Zhejiang
• HS Code：854420000
• Production Capacity：10000000m

Basic Info.

Model NO. LMR195 LMR200 LMAR300 LMR400 LMR600 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, UL, ETL Model HYA Model No. LMR600 H.S. Code 85442000 Impedance 50 Ohms Inner Conductor 4.47mm CCA Insulation 11.56mm PE Shield 1 Al. Foil Bonded Shield 2 Tc Wire Braiding Outer Conductor 12.50mm Jacket 14.99mm PVC Transport Package 100m/Coil, 250m/305m/500m/1000m/Wooden Drum Specification ISO9001, CE, RoHs, ETL Trademark HF/OEM Origin Zhejiang HS Code 854420000 Production Capacity 10000000m

Product Description

1. Our services:
1, Good quality guarantee
2, CE. RoHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time

2. Specifications see attached as below

3. Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)


4. Attenuation Performance [@68 ° F. (20 ° C)] as below:
Frequency(MHz) Maximum (dB/100ft) Maximum (dB/100m)



5. Main products:

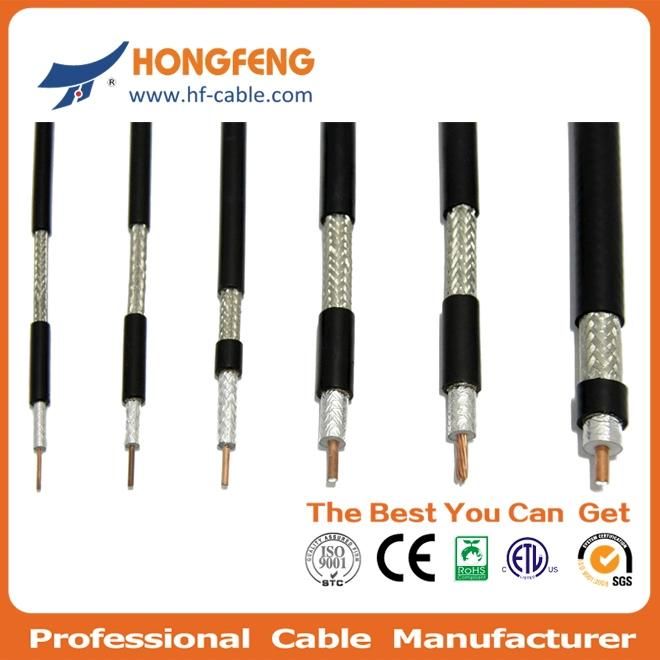

1) RG series Coaxial Cable: Rg58, rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, rg316, rg402, etc.;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, 12D-FB, etc.;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5C, RGB6/4C, BT3002.
Note: If the specification is not you need, please tell me and I will offer you price according your requirements.


Construction Specification
Item	Material	Diameter ( mm )
1.Inner conductor	Copper Clad Aluminum	4.47
2.Dielectric	Physical Foam Polyethylene	11.56
3.Outer conductor	Bonded AL Foil+TC Braiding	Nom.12.50
4.Jacket	PVC	14.99

Frequency ( MHz )	Attenuation ( dB/100m )	Average Power ( kW )
30	1.5	4.93
50	1.9	3.83
150	3.4	2.16
220	4.1	1.77
450	5.9	1.23
900	8.6	0.84
1500	11.4	0.63
1800	12.7	0.57
2000	13.4	0.54
2500	15.2	0.48
5800	25.0	0.29
