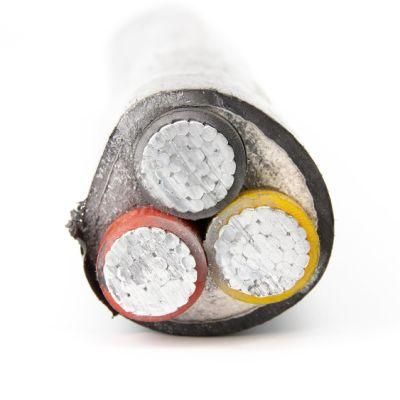

• Model NO.：3x150mm2 Aluminum Power Cable
• Wire Core Material：Aluminum
• Certification：ISO, CCC, CE, RoHS
• Model：YJV
• Brand：Hnbf Cable
• Colour：as Buyer′s Requirement
• Transport Package：International Wooden Drum
• Specification：3x150mm2 AL,XLPE,PVC Cable
• Trademark：HNBF Cable
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：1000km,Month

Product NameLow Voltage Power CableNo. of Core3 CoresVoltage0.6/1kVCable Size3x150mm² Power CableConductor MaterialAluminumInsulation MaterialXLPE Sheath MaterialPVCColourBlack or as per buyer's requirements



Standards:
GB/T, IEC60502, BS6346, JB/T, NFC, VDE, AS/NZS, AWG, UL

Operating Features:
1)The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2)
XLPE Insulation Features:
XLPE  insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.

Power Cable Construction types:
1, XLPE insulation PVC sheath power cable (Cu/XLPE/PVC)
2, XLPE insulation PE sheath power cable (Cu/XLPE/PE)
3, XLPE insulation, steel tape armor,  PVC sheath power cable
(Cu/XLPE/PVC/STA/PVC)
4, XLPE insulation, steel tape armor,  PE sheath power cable
(Cu/XLPE/PVC/STA/PE)
5, XLPE insulation, thin steel-wire  armor,  PVC sheath power cable
(Cu/XLPE/PVC/SWA/PVC)
6, XLPE insulation,  no  magnetism steel tape armor,  PE sheath power cable
7, XLPE insulation, have no the magnetism thick steel-wire  armor,  PVC sheath power cable
8, XLPE insulation, thick steel-wire  armor,  PVC sheath power cable
Note: Conductor can be copper or aluminum, and insulation can be PVC.

Packing and Delivery




Certifications

Our company has passed ISO 9000 quality management system certification, ISO 9000 occupational health and safety management system certification, ISO 9000 environmental management system certification, CCC China National Compulsory Product Certification, CE Certificate of Conformity, and Rohs.


International Fair

We participate in the Canton Fair and foreign exhibitions every year. Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like South America, North America, Latin America, South Asia, Southeast Asia, Africa, and Europe etc.
