450/750V Flexible Electrical Wire House Wire Building Wire
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Solid or Stranded
- Application：Underground, House and Building
- Conductor Material：Copper or Aluminium or Aluminium Alloy
- Insulation Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：building wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, CCC, TUV BV SGS
- Brand：Rmjt
- Product Name：450,750V Flexible Electrical Wire House Wire Build
- Voltage：300,300V 300,500V 450,750V
- Insulation Color：Red, Black, Yellow, Blue, Green, Grey and So on
- Standard：IEC, UL, BS, VDE, AS,NZS or According to You.
- Conductor Class：Calss 1, Class2, Class 5, Class6
- Condcutor：Flexible
- Transport Package：100m,Roll or Bag
- Specification：170mm*170mm*68mm
- Trademark：RMJT
- Origin：China
- HS Code：8544492100
- Production Capacity：50000km,Month
Description
Size of conductorNominal thickness of insulation mm Mean overall diameter Upper limit mm renmincable.en.made-in-china.com weight per km kg Nominal cross-sectional area mm2 Number and diameter of wires no./mm 1.0 32/0.20 0.6 3.0 16 1.5 30/0.25 0.7 3.5 21 2.5 50/0.25 0.8 4.2 33 4 56/0.30 0.8 4.8 50 6 84/0.30 0.8 6.3 70 10 80/0.40 1.0 7.6 120 16 126/0.40 1.0 8.8 175 25 196/0.40 1.2 11.0 290 35 276/0.40 1.2 12.5 400 50 396/0.40 1.4 14.5 565 70 360/0.50 1.4 17.0 770 95 475/0.50 1.6 19.0 1010 120 608/0.50 1.6 21.0 1260 150 756/0.50 1.8 23.5 1580 185 925/0.50 2.0 26.0 1900 240 1221/0.50 2.2 29.5 2500 Nominal thickness of insulation mm Mean overall dimensions Approx. net weight per km kg Nominal cross-sectional area mm2 Number and diameter of wires no/mm Lower Limit mm Upper Limit Mm 0.5 28/0.15 0.8 2.5x5.0 3.0x6.0 24 0.75 42/0.15 0.8 2.7x5.4 3.2x6.4 29 Nominal thickness of insulation mm Mean overall diameter Upper limit mm Approx. net weight per km kg Nominal cross-sectional area mm2 Number and diameter of wire no/mm 0.5 16/0.20 0.6 2.6 10 0.75 24/0.20 0.6 2.8 13 1.0 32/0.20 0.6 3.0 16 1.5* 30/0.25 0.7 3.5 20 2.5* 50/0.25 0.8 4.2 32 4.0* 56/0.30 0.8 4.8 49 Nominal thickness of insulation mm Nominal thickness of sheath mm Mean overall dimensions Approx. net weight per km kg Nominal cross- sectional area mm2 Number and diameter of wires No./mm Upper Limit mm Upper Limit mm 0.5 16/0.20 0.5 0.6 3.0x4.8 3.6x6.0 27 0.75 24/0.20 0.5 0.6 3.2x5.2 3.9x6.4 34 Nominal thickness of insulation mm Nominal thickness of sheath mm Mean overall dimensions Approx. net weight per km kg Nominal cross- sectional area mm2 Number and diameter of wires No./mm Upper Limit mm Upper Limit mm 0.5 16/0.20 0.5 0.6 4.8 6.0 36 0.75 24/0.20 0.5 0.6 5.2 6.4 45 Nominal thickness of insulation mm Nominal thickness of Sheath mm Mean overall dimensions Approx. net weight per km kg Nominal cross- sectional area mm2 Number and diameter of wires no/mm Lower Limit mm Upper Limit mm 0.5 16/0.2 0.5 0.6 5.0 6.2 44 0.75 24/0.2 0.5 0.6 5.4 6.8 55 Nominal thickness of insulation mm Nominal thickness of sheath mm Mean overall dimensions Approx. net weight per km kg Nominal cross- sectional area mm2 Number and diameter of wires no/mm Lower Limit mm Upper Limit mm 0.75 24/0.20 0.6 0.8 6.0 7.6 63 1.0 32/0.20 0.6 0.8 6.4 8.0 73 1.25 40/0.20 0.7 0.8 7.0 8.6 84 1.5 30/0.25 0.7 0.8 7.4 9.0 95 2.5 50/0.25 0.8 1.0 8.9 11.0 145 Nominal thickness of insulation mm Nominal thickness of sheath mm Mean overall dimensions Approx. net weight per km kg Nominal cross- sectional area mm2 Number and diameter of wires no/mm Lower limit mm Upper limit mm 0.75 24/0.20 0.6 0.8 6.8 8.6 78 1.0 32/0.20 0.6 0.9 7.6 9.4 110 1. 5 30/0.25 0.7 1.0 9.0 11.0 150 2.5 50/0.25 0.8 1.1 10.5 13.0 220

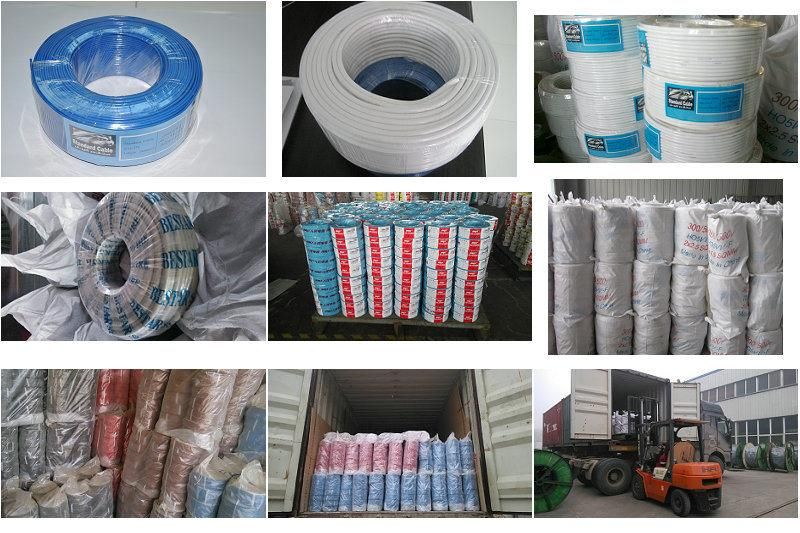

4.Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.

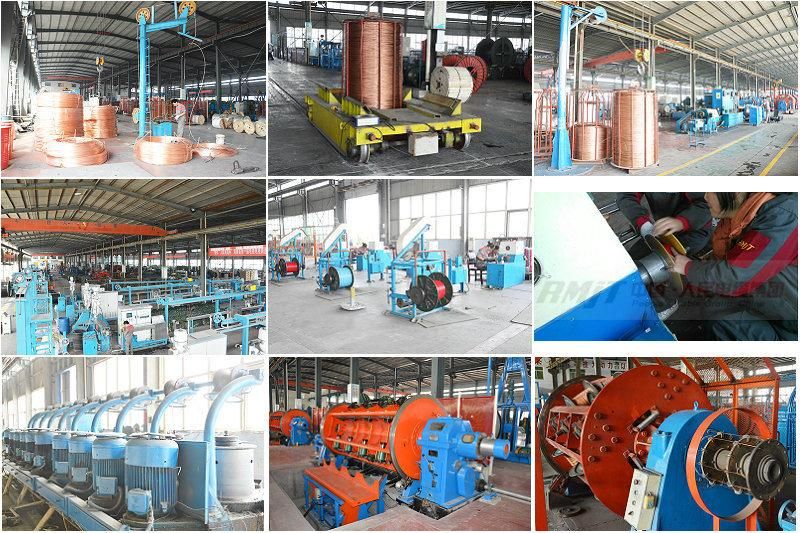

5.Our factory:People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
6.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7.Customer Visit:
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
8.Contact:
Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
