H05V-U H05V-K H05V-R H03VV-F H03vvh2-F Flexible House Wire
People's Cable Group Co., Ltd.- Type:Insulated
- Conductor Type:Solid or Stranded
- Application:Underground, House and Building
- Conductor Material:Copper or Aluminium or Aluminium Alloy
- Insulation Material:PVC
- Material Shape:Round Wire
Base Info
- Model NO.:H03VV-F H03VVH2-F
- Range of Application:Flame Retardant
- Certification:ISO9001, CE, CCC, TUV BV Tis
- Brand:Rmjt
- Product Name:H05V-U H05V-K H05V-R H03VV-F H03vvh2-F Flexible Ho
- Voltage:300,300V 300,500V 450,750V
- Insulation Color:Red, Black, Yellow, Blue, Green, Grey and So on
- Standard:IEC, UL, BS, VDE, AS,NZS or According to You.
- Conductor Class:Class 5, Class6
- Aerial:0.5~100mm2
- Transport Package:100m,Roll or Bag
- Specification:170mm*170mm*68mm
- Trademark:RMJT
- Origin:China
- HS Code:8544492100
- Production Capacity:50000km,Month
Description
300/500V,Copper Conductor PVC Insulated WireNominal Cross Section Conductor Construction Insulation Thickness Overall Diameter Approx. Net Weight mm2 No. Diameter mm mm kg/km 1 X 0.5 1 0.8 0.6 2.00 8.16 1 X 0.75 1 0.97 0.6 2.17 10.71 1 X 1.0 1 1.13 0.6 2.33 13.48 300/500V, Copper Conductor Heat Resistant PVC Insulated Connecting Wire at 90ºC Nominal Cross Section Conductor Construction Insulation Thickness Overall Diameter Approx. Net Weight mm2 No. Diameter mm mm kg/km 1 X 0.5 1 0.8 0.6 2.00 8.16 1 X 0.75 1 0.97 0.6 2.17 10.71 1 X 1.0 1 1.13 0.6 2.33 13.48 1 X 1.5 1 1.38 0.7 2.78 19.70 1 X 2.5 1 1.78 0.8 3.38 31.20
H05V-R Specification300/500V,Copper Conductor PVC Insulated WireNominal Cross Section Conductor Construction Insulation Thickness Overall Diameter Approx. Net Weight mm2 No. mm mm mm kg/km 1 X 0.75 7 0.37 0.6 2.31 11.3 1 X 1.0 7 0.43 0.6 2.49 14.2
H05V-K Specification 300/500V,Copper Conductor PVC Insulated Flexible Connecting WireNominal Cross Section Conductor Construction Insulation Thickness Overall Diameter Approx. Net Weight mm2 No. Diameter mm mm kg/km 1 X 0.5 28 0.15 0.6 2.16 8.65 1 X 0.75 40 0.15 0.6 2.40 11.22 1 X 1.0 32 0.20 0.6 2.54 14.32 300/500V, Copper Conductor Heat Resistant PVC Insulated Connecting Wire at 90ºC Nominal Cross Section Conductor Construction Insulation Thickness Overall Diameter Approx. Net Weight mm2 No. Diameter mm mm kg/km 1 X 0.5 28 0.15 0.6 2.16 8.65 1 X 0.75 40 0.15 0.6 2.40 11.22 1 X 1.0 32 0.20 0.6 2.54 14.32 1 X 1.5 30 0.25 0.7 3.00 20.58 1 X 2.5 49 0.25 0.8 3.70 32.24 H07V-R Specification450/750V,Copper Conductor PVC Insulated WireNominal Cross Section Conductor Construction Insulation Thickness Overall Diameter Approx. Net Weight mm2 No. Diameter mm mm kg/km 1 X 1.5 7 0.52 0.7 2.96 20.4 1 X2.5 7 0.67 0.8 3.61 32.3 1 X4.0 7 0.85 0.8 4.15 47.8 1 X6.0 7 1.04 0.8 4.72 67.7 1 X10 7 1.35 1.0 6.05 113.1 1 X 16 7 1.70 1.0 7.1 170.9 1 X 25 7 2.14 1.2 8.82 268.5 1 X 35 7 2.52 1.2 9.96 362.8 1 X 50 19 1.78 1.4 11.7 492.2 1 X 70 19 2.14 1.4 13.5 694.2 1 X 95 19 2.52 1.6 15.8 959.2 1 X 120 37 2.03 1.6 17.41 1197.1 1 X 150 37 2.25 1.8 19.35 1472.9 1 X 185 37 2.52 2.0 21.64 1846.1 1 X 240 61 2.25 2.2 24.65 2416.5 1 X 300 61 2.52 2.4 27.48 3023.6 1 X 400 61 2.85 2.6 30.85 3851.7
H07V-K Specification450/750V,Copper Conductor PVC Insulated Flexible WireNominal Cross Section Conductor Construction Insulation Thickness Overall Diameter Approx. Net Weight mm2 No. Diameter mm mm kg/km 1 X 1.5 30 0.25 0.7 3.00 20.6 1 X2.5 49 025 0.8 3.70 32.2 1 X4.0 56 0.30 0.8 4.21 48. 1 X6.0 84 0.30 0.8 5.57 71.2 1 X10 84 0.40 1.0 7.30 124.4 1 X 16 126 0.40 1.0 8.00 175.8 1 X 25 196 0.40 1.2 10.10 272.5 1 X 35 276 0.40 1.2 11.87 373.9 1 X 50 396 0.40 1.4 13.93 532.8 1 X 70 360 0.50 1.4 16.12 737.9 1 X 95 475 0.50 1.6 19.24 978.1 1 X 120 608 0.50 1.6 19.95 1222.5 1 X 150 756 0.50 1.8 23.34 1529.7 1 X 185 925 0.50 2.0 25.54 1870.1 1 X 240 1221 0.50 2.2 27.85 2443.4 1 X 300 1525 0.50 2.4 32.49 3032.9 1 X 400 2013 0.50 2.6 35.35 3958.6
HO3VV-F and AO3VV-F SpecificationRated VoltageCopper Conductor PVC Insulated PVC Sheathed Round Flexible Connecting Wire Nominal Cross Section Conductor Construction Insulation Thickness PP Tape Sheath Thickness Overall Diameter Approx. Net Weight mm2 No./mm mm No./mm mm mm kg/km 300/300V 2 X0.5 16/0.20 0.5 1/0.05 0.6 5.87 34.80 2 X 0.75 24/0.20 0.5 1/0.05 0.6 6.50 43.40 3 X 0.5 16/0.20 0.5 1/0.05 0.6 6.22 44.01 3 X 0.75 24/0.20 0.5 1/0.05 0.6 6.90 55.64 300/500V 2 X 0.5 16/0.20 0.6 1/0.05 0.7 5.78 36.69 2 X 0.75 24/0.20 0.6 1/0.05 0.8 6.78 47.02 2 X 1.0 32/0.20 0.6 1/0.05 0.8 6.78 54.79 2 X 1.5 30/0.25 0.7 1/0.05 0.8 7.71 72.31 2 X 2.5 49/0.25 0.8 1/0.05 0.8 9.51 111.90 3 X 0.5 16/0.20 0.6 1/0.05 0.7 6.11 46.72 3 X 0.75 24/0.20 0.6 1/0.05 0.8 6.74 59.71 3 X 1.0 32/0.20 0.6 1/0.05 0.8 7.17 71.03 3 X 1.5 30/0.25 0.7 1/0.05 0.8 8.17 95.26 3 X 2.5 49/0.25 0.8 1/0.05 1.2 10.48 156.81 3 X 4.0 50/0.30 0.8 1/0.05 1.2 11.38 199.81 4 X 1.0 32 X 0.20 4 X 1.5 48 X 0.20 4 X 2.5 77 X 0.20 4 X 4.0 56 X 0.30 4 X 6.0 84 X 0.30 4 X 10 84 X 0.40 4 X 16 126 X 0.40 5 X 1.5 48 X 0.20 5 X 2.5 77 X 0.20 5 X 4.0 56 X 0.30 5 X 6.0 84 X 0.30 5 X 10 84 X 0.40 5 X 16 126 X 0.40
H03VVH2-F Specification300/500V,Copper Conductor PVC Insulated PVC Sheathed Flat WireNominal Cross Section Conductor Construction Insulation Thickness Sheath Thickness Overall Diameter Approx. Net Weight mm2 No./mm mm mm mm x mm kg/km 2 X 0.75 1/0.97 0.6 0.9 3.97 x 6.14 39.0 2 X 1.0 1/1.13 0.6 0.9 4.13 x6.46 45.6 2 X1.5 1/1.37 0.7 0.9 4.57x7.34 60.5 2 X2.5 1/1.76 0.8 1.0 5.36x8.72 89.9 2 X4 1/2.24 0.8 1.0 5.84x9.68 123.5 2 X4 7/0.85 0.8 1.0 6.15x10.30 130.6 2 X6 1/2.74 0.8 1.1 6.54x10.88 169.4 2 X6 7/1.04 0.8 1.1 6.92x11.64 179.2 2 X10 7/1.35 1.0 1.2 9.45x14.50 286.5 2 X16 7/1.70 1.0 1.2 9.50x16.60 412.3 3 X0.75 1/0.97 0.6 0.9 3.97x8.31 55.2 3 X1.0 1/1.13 0.6 0.9 4.13x8.79 65.0 3 X1.5 1/1.38 0.7 0.9 4.58x10.14 87.7 3 X2.5 1/1.76 0.8 1.0 5.36x12.08 129.9 3 X4 1/2.24 0.8 1.1 6.04x13.72 184.7 3 X 4 7/0.85 0.8 1.1 6.35x14.65 195.4 3 X6 1/2.74 0.8 1.1 6.54x15.22 247.7 3 X 6 7/1.04 0.8 1.1 6.92x16.36 262.0 3 X10 7/1.35 1.0 1.2 8.45x20.55 420.8 Size of conductorNominal thickness of insulation mm Nominal thickness of sheath mm Mean overall dimensions Approx. net weight per km kg Nominal cross- sectional area mm2 Number and diameter of wires no/mm Lower Limit mm Upper Limit mm 0.75 24/0.20 0.6 0.8 6.0 7.6 63 1.0 32/0.20 0.6 0.8 6.4 8.0 73 1.25 40/0.20 0.7 0.8 7.0 8.6 84 1.5 30/0.25 0.7 0.8 7.4 9.0 95 2.5 50/0.25 0.8 1.0 8.9 11.0 145

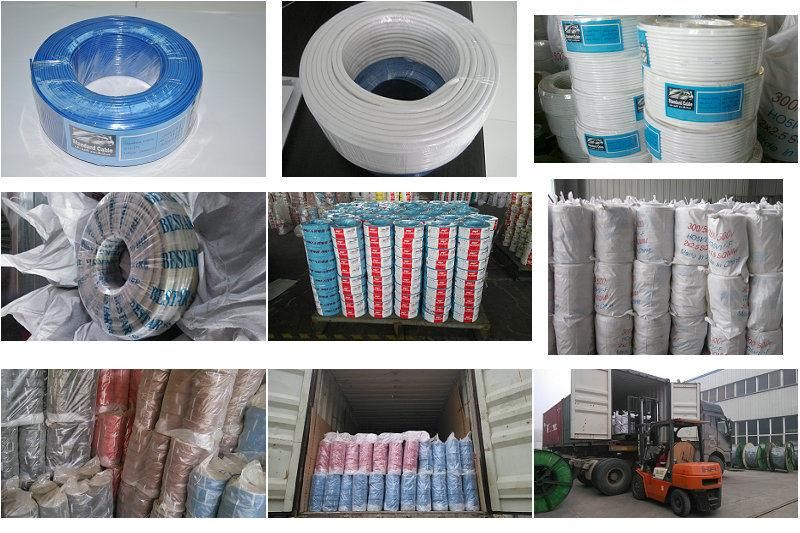

4.Package:
Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.

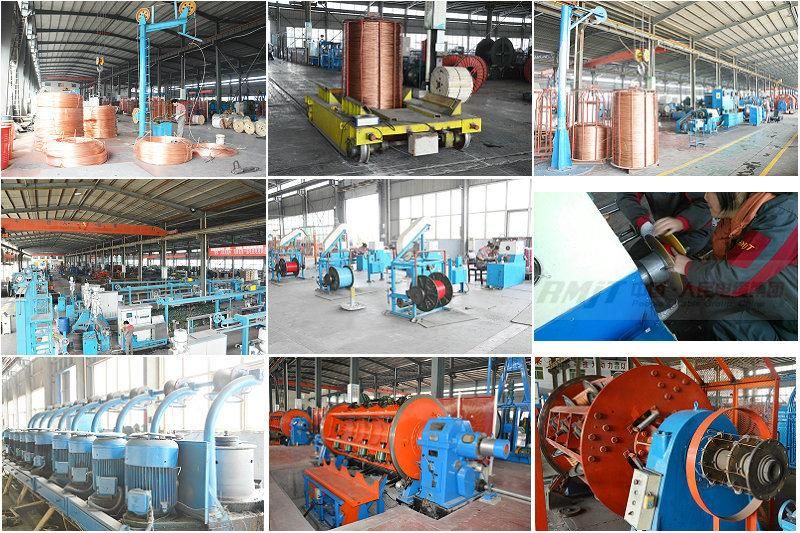

5.Our factory:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
6.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7.Customer Visit:
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
8.Contact:
Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
