• Model NO.：Outdoor optic fiber cable
• Core：Double Core
• Certification：RoHS, ISO9001, Reach
• Brand：OEM or Tw-Scie
• Sheath Material：LSZH, HDPE, MDPE
• Installation Style：Duct & Direct Buried
• Brand Name of Fiber：Corning, Yofc, Draka, Fujikura.as Your Requiremen
• Loose Tube Material：PBT with Jelly
• Waterblocking Material：Water Blocking Tape or Filling Compound
• Outer Sheath Material：MDPE , HDPE ,LSZH
• Outer Sheath Color：Black Optic Fiber Cable
• Armour Material：Corrugated Aluminium Tape
• Central Stranding Member：Steel Wire or FRP

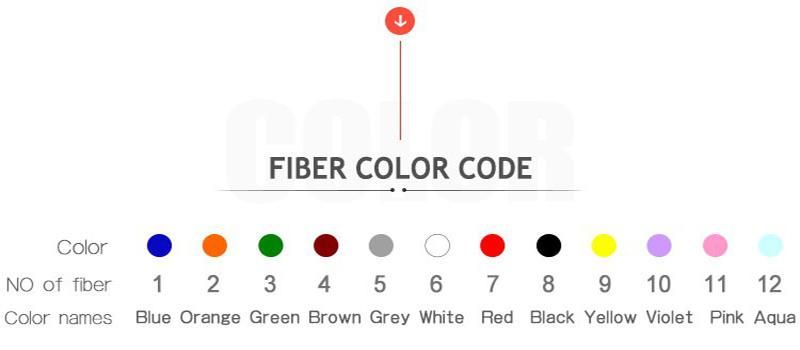

• Color of Fiber and Loose Tube：Red, Black, Yellow, Violet, Pink, Aqua
• Fiber Count：2-288 Core
• Transport Package：Wooden Drum
• Specification：ISO, ROHS, REACH, SGS
• Trademark：TW-SCIE or OEM
• Origin：Dongguan, China
• HS Code：8544700000
• Production Capacity：200km,Day

GYTA Aluminium Tape Armored G652D Fiber Optic Cable for Duct or Aerial Application Description and Standards :The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with
a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable
with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are
stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene
Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it
from water ingress. Then, the cable is completed with a PE sheath.GYTA fiber cable complies with Standard YD/T 901-2001as well as IEC 60794-1.Characteristics:Good mechanical and temperature performance;High strength loose tube that is hydrolysis resistant;Special tube filling compound ensure a critical protection of fiber;Specially designed compact structure is good at preventing loose tubes from shrinking;PE sheath protects cable from ultraviolet radiation;The following measures are taken to ensure the cable watertight:(1)Steel wire used as the central strength member;(2)Loose tube filling compound;(3)100% cable core filling;(4)APL moisture barrier. Technical Parameters:Cable TypeCable Diameter
(mm)Cable Weight
(kg/km)Tensile
Strength
Long/
Short Term
(N)Crush
Resistance
Long/
Short Term
(N/100mm)Bending
Radius
Static/
Dynamic
(mm)GYTA-2~69.790600/1500300/100010D/20DGYTA-8~129.790600/1500300/100010D/20DGYTA-14~189.790600/1500300/100010D/20DGYTA-20~249.790600/1500300/100010D/20DGYTA-26~309.790600/1500300/100010D/20DGYTA-32~3610.21041000/3000300/100010D/20DGYTA-38~4811.01171000/3000300/100010D/20DGYTA-50~6011.01171000/3000300/100010D/20D Optical fiber Characteristics:  G.652G.65550/125μm62.5/125μmAttenuation
(+20ºC)@850nm  ≤3.0 dB/km≤3.0 dB/km@1300nm  ≤1.0 dB/km≤1.0 dB/km@1310nm≤0.36
dB/km≤0.40
dB/km  @1550nm≤0.22
dB/km≤0.23
dB/km  Bandwidth (Class A)@850nm  ≥500 MHz·km≥200 MHz·km@1300nm  ≥1000 MHz·km≥600 MHz·kmNumerical Aperture  0.200±0.015 NA0.275±0.015NACable Cut-off Wavelength λcc≤1260nm≤1480nm  Storage/Operating Temperature : -40ºC to + 70ºCOrder Informations:MarkingKINGTONE KT3003 GYTA XXX M/FT (or customer's request)Package1000M/2000M, Drum/Pallet (or customer's request)Delivery timeNormally 25 days after received the deposit.

Competitive Advantages:

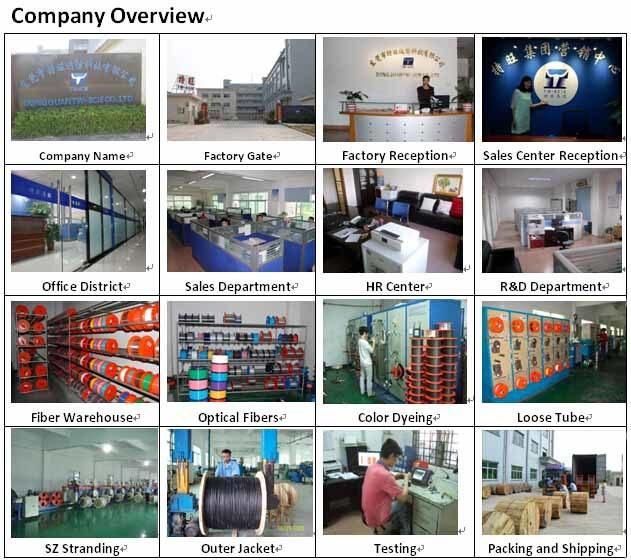

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D: 5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE
3, We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
