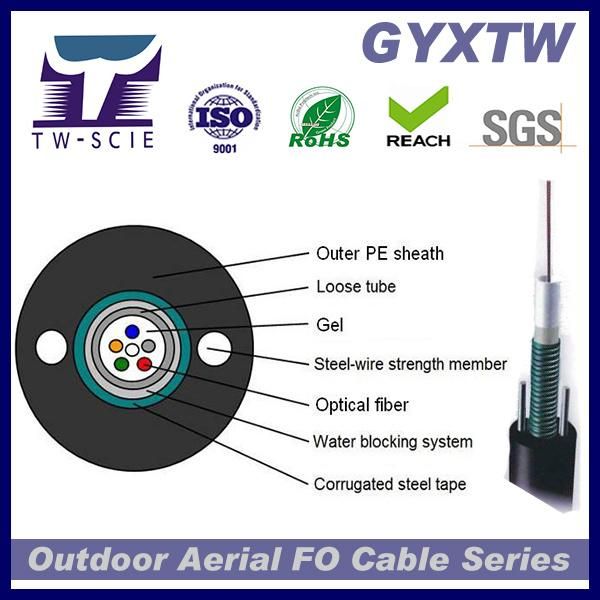

Manufacture GYXTW Fiber Optical Cable with Unitube Light-Armored Cable
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Optical Fiber
- Type：Fiber Optic Cable
- Connection Structure：Fiber Optic Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：Manufacture GYXTW Outdoor cable
- Core：Double Core
- Certification：RoHS, ISO9001, Reach
- Brand：OEM or Tw-Scie
- Sheath Material：LSZH,HDPE,MDPE
- Outer Sheath Color：Black
- Max Number of Fiber：24 Core
- Installation Style：Aerial
- Brand Name of Fiber：Corning ,Yofc,Draka, Fujikura...as Your Requiremen
- Loose Tube Material：PBT
- Waterblocking Material：Water Blocking Tape or Filling Compound
- Outer Sheath Material：MDPE , HDPE , LSZH
- Armour Material：Corrugated Steel Tape
- Stranding Member：Steel Wire or FRP
- Color of Fiber /Loose Tube：Blue,Orange,Green,Brown,Grey,White,Red,Black,Yello

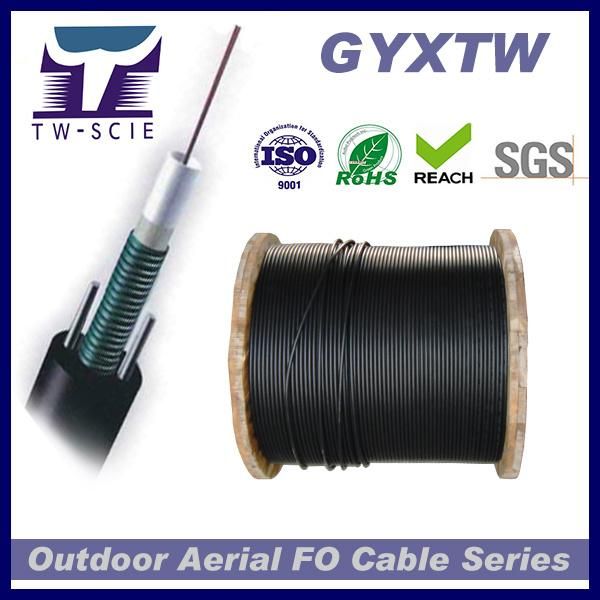

- Transport Package：Wooden Drum
- Specification：ISO, ROHS, REACH, SGS
- Trademark：TW-SCIE or OEM
- Origin：China (Mainland) Guangdong Dongguan
- HS Code：8544700000
- Production Capacity：300km,Day
Description
Cable Performance:
| Item | Testing | Test Method | Test Result |
| 1 | Tensile strength IEC 60794-1-E1 | Long-term:1500N Short-tern: 600N Cable length: ≥50m | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 2 | Impact IEC 60794-1-E4 | Height: 1m Weight: 1kg Impact spot: ≥5 Impact cycle: at lease 3 cycle per spot | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 3 | Repeated Bending IEC 60794-1-E6 | Bending diameter: 25X the cable outer diameter Applied load: 25kg Bending cycle: 30times Bending speed: 1 cycle per 2s | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 4 | Torsion IEC 60794-1-E7 | Torsion length: 1m Applied load: 25kg Torsion angle: ±90 or +180 Twist cycle: ≥10 times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 5 | Water Penetration IEC 60794-1-F5B | Water height: 1m Cable length: 3m Keeping time: 24hours | No water leaked from the opposite end of cable |
| 6 | Temperature IEC 60794-1-F1 | Temperature step:+20°C->-40°C°C >+70°C->+20°C Keeping time: 24hours per each step Cycle:2times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 7 | Compound flow IEC 60794-1-E14 | Sample length: 30cm Temperature: 70ºC±2ºC Keeping time: 24hours | No compound flow |
| 8 | Sheath high voltage test | On line test DC 12t kV(t-sheath thickness mm) | No sheath broken down |
