• Model NO.：FTTH drop cable
• Core：Single Core
• Certification：RoHS, ISO9001, Reach
• Brand：OEM
• Sheath Material：LSZH,HDPE,MDPE
• Messenger Material：1.0 or 1.2 Steel Wire
• Jacket Material：LSZH
• Jacket Color：Black, White
• Optical Fiber Type：G657A1, G657A2
• Strength Member：Steel or FRP
• Transport Package：Wooden Drum
• Specification：SGS ROHS REACH ISO
• Trademark：TW-SCIE or OEM
• Origin：China (Mainland) Guangdong Dongguan
• HS Code：8544700000
• Production Capacity：200km,Day

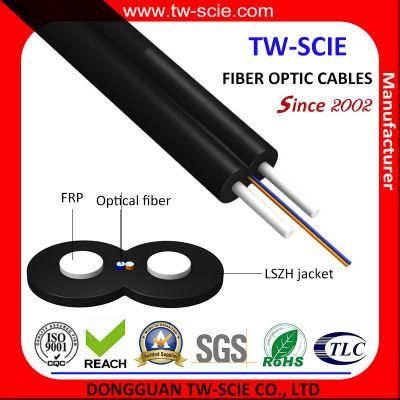

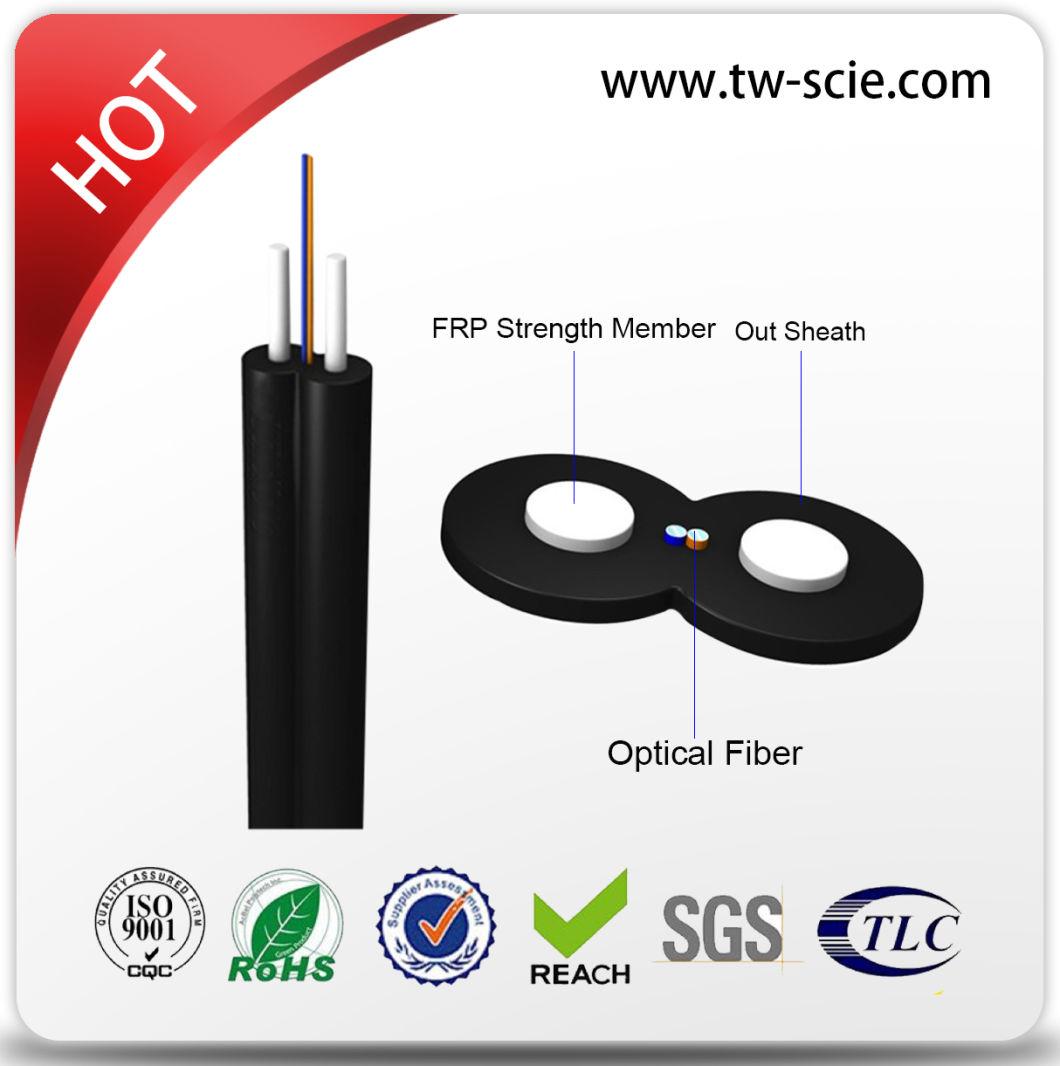

Description of product:1.FTTH indoor cable consists of optical communication unit,strength member and outer sheath.2.Optical communication unit includes fibers or tight buffer fibers,etc.3.Metallic or non-metallic strength member will be used according to the demands of the customers.

FTTH Drop Cable Structure characters:
Good mechanical and environmental characteristics
Drop Cable 's Flame retardant characteristics meet the requirements of relevant standard
The mechanical characteristics meet the requirements of relevant standard
Soft, flexible, easy to lay and splice and with big capacity data transmission
Meets various requirements of market and clients

FTTH Drop Cable Features
Has good mechanical and environmental performance
Flame (or retardant) performance to meet the standards
Sheath of the mechanical and physical properties to meet the relevant standards
Easy installation, flexible, convenient connecting and supporting high-capacity data transmission
Meet market and user demands Charistics of product:1.Special low sensitivity of bending fiber provides higher bandwidth and realize the integration of internet network,CATV network and telephone network;2.two parallel strength members protect fibers and ensure excellent performance of crush and tensile strength;3.simple structure, lighter and good practicability;4.unique gouge design, strip and splice easily, simplify installation and maintenance.5.low smoke zero halogen sheath environment friendly;

ITEMS	UNITS	SPECIFICATION
Attenuation	dB/km	≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion	ps/nm.km	≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength	nm	1300 ~ 1324
Zero Dispersion Slope	ps/nm2.km	≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)	nm	≤1260
Mode Field Diameter	um	9.2±0.5
Mode Field Concentricity	um	≤0.8
Cladding Diameter	um	125±1.0
Cladding Non-circularity	%	≤1.0
Coating cladding concentricity error	um	≤12.5
Coating Diameter	um	245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn	dB	≤0.5 at 1550nm
Proof Test	kpsi	≥100

FTTH Drop Cable Application:
Used in the access network or CPN introduced into the room from the outside cable
Integrated wiring in buildings used for the introduction of cable, especially when the introduction of indoor or outdoor overhead wiring

FTTH Drop Cable Customization
Fiber types: Single-mode G. 652 or G. 655 or G657fiber, A1a or A1b multimode fiber, or other models and types of fiber
Jacket material: Flame-retardant polyvinyl chloride (PVC), smoke halogen (LSZH), polyurethane (TPU) or other agreed material
Jacket Color: (including fiber optic cable in color) the color of the standard requirements, but also other agreed upon color
Cable Size: Nominal fiber size, but also other agreed size
Delivery length: 1km or 2km, but also other agreed length
Other requirements: Other special requirements agreed
