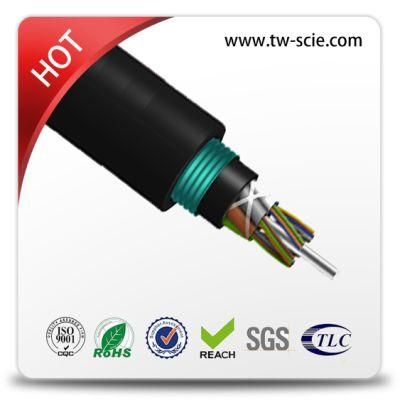

GYTY53 Single Armored and Double Sheathed Optical Network Cable
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Art, Medicine, Probe, Optical Fiber
- Type：Single More or Multimode
- Connection Structure：Single More or Multimode
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
- Core：Double Core
Base Info
- Model NO.：GYTY53 optic fiber cable
- Certification：RoHS, ISO9001, Reach
- Brand：OEM
- Sheath Material：Fiber Optic Cable
- Installation Style：Duct & Direct Buried (Fiber Cable)
- Brand Name of Fiber：Your Requiremen
- Loose Tube Material：PBT with Jelly (Optic Cable)
- Waterblocking Material：Water Blocking Tape or Filling Compound
- Outer Sheath Material：MDPE , HDPE ,LSZH
- Outer Sheath Color：Black ( Opitc Cable)
- Armour Material：Corrugated Steel Tape Optical Cable
- Central Stranding Member：Steel Wire or FRP Fiber Cable
- Color of Fiber and Loose Tube：Red, Black, Yellow, Violet, Pink, Aqua
- Fiber Count：2-288 Core Fiber Optic Cable
- Transport Package：Wooden Drum
- Specification：ISO, ROHS, REACH, SGS
- Trademark：TW-SCIE or OEM
- Origin：Dongguan, China
- HS Code：8544700000
- Production Capacity：200km,Day
Description
Technical data:Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm) Static Dynamic Short term Long term Short term Long term 2-24 13.3 210 12.5 times O.D. 25 times O.D. 3000 1000 3000 1000 26-36 13.6 220 38-60 14.1 225 62-72 14.6 255 74-96 16.2 305 98-120 17.7 350 122-144 19.1 395 146-216 19.6 420 218-240 22.8 530 242-288 25 620
GYTY53 Fiber Optic Cable Applications
1. Adopted to Outdoor distribution
2. Suitable for direct buried method
3. Long distance and local area network communication
4. Used outdoor cabling
Fiber Optic Cable Feature Description
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight
6. Loose tube filling compound, 100% cable core filling
7. Enhancing moisture-proof
8. Water-blocking material
9. Single Fiber Reinforced Plastic as the central strength memberFiber optic cable cable GYTY53 comply with Standard YD/T 901-2001 as well as IEC 60794-1

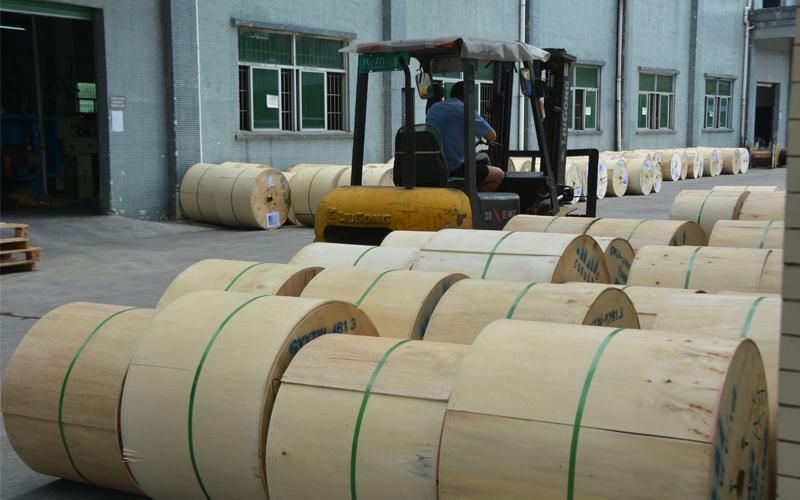

Package Details:
The cables will be shipped on disable wooden or treated wooden drums or Steel reel on wooden drums.
Out packing: Protected by wooden batterns.
PS: The inner and outer ends of cable will be capped and made accessible for testing. A direction
Of rotation arrow is marked on the drum together with the identification
Our advantage:
1. OEM fiber optic cable manufacturer
2. Fiber brand: YOFC, CORNING, FUJIKURA
3. Quality certification: ISO9001. ROSH. REACH
4. Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5. We known as the fiber optic cable manufacturer for the excellent products quality, competitive prices, fast delivery and good service
Our Company:
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
Why choose us?

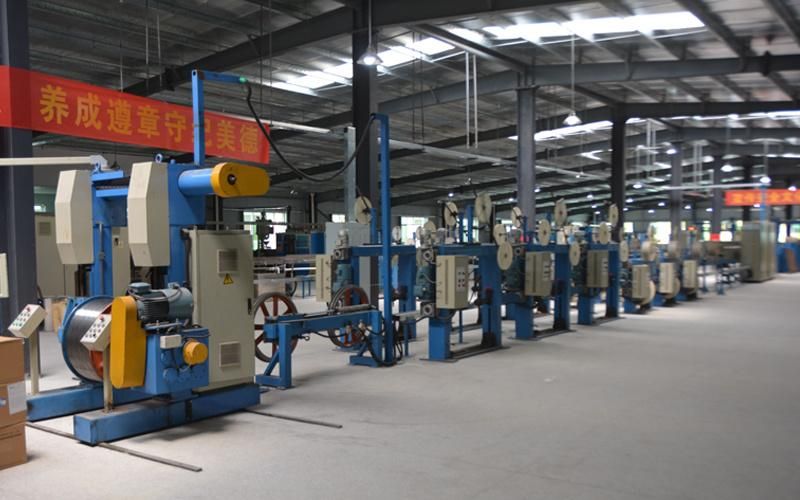

1. Introduction of foreign advanced production equipment and technology, have 14 year production experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.
2. FAST SHIPPING from factory
3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
4. We accept T/T, L/C, Western Union, just choose what you like.
5. We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to ur requirment and description;
