Optical Fiber Cable 2-144cores with Steel Armoured GYTY53
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Art, Sensor, Medicine, Probe
- Type：Single More or Multimode
- Connection Structure：Fiber Optic Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：GYTY53 fiber optic cable
- Core：Double Core
- Certification：RoHS, ISO9001, Reach
- Brand：OEM
- Sheath Material：LSZH, HDPE, MDPE
- Jacket Material：MDPE ,HDPE, LSZH
- Fiber Account：2-288 Core
- Armour Material：Steel Armour
- Item：Fiber Optic Cable , Fiber Cable , Optic Cable , Op
- Brand Name of Fiber：Corning, Yofc, Draka, Fujikura...as Your Requiremen
- Loose Tube Material：PBT
- Loose Tube Filling Material：Jelly
- Color of Loose Tube：Blue, Orange, Green, Brown, Red etc
- Central Strength Member：Steel Wire or FRP
- Single Armour Material：Corrugated Steel Tape Under PE Sheath
- Transport Package：Wooden Drum
- Specification：ISO, ROHS, REACH, SGS
- Trademark：TW-SCIE or OEM
- Origin：China (Mainland) Guangdong Dongguan
- HS Code：8544700000
- Production Capacity：150km,Day
Description
Technical data:Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm) Static Dynamic Short term Long term Short term Long term 2-24 12.6 185 12.5 times O.D. 25 times O.D. 3000 1000 3000 1000 26-36 12.9 195 38-60 13.4 200 62-72 13.9 230 74-96 15.5 275 98-120 17 320 122-144 18.4 365 146-216 18.9 385 218-240 22.1 495 242-288 24.3 580
Features:product name GYTY53 2-288 core outdoor layer stranded optical cables for telecommunications fiber type G652D single mode applications Buried, aerial
Relay communication system
Core network, metropolitan area network and access network, etc
standards YD/T901-2009
IEC60794-1
characteristics *Corrugated steel tape armoring, loose tube stranding with single sheath
*Loose tube material has good hydrolysis resistance performance and high strength
*Compact structure, excellent water-blocking performance
*Strict manufacturing processes, good mechanical performance and environmental properties

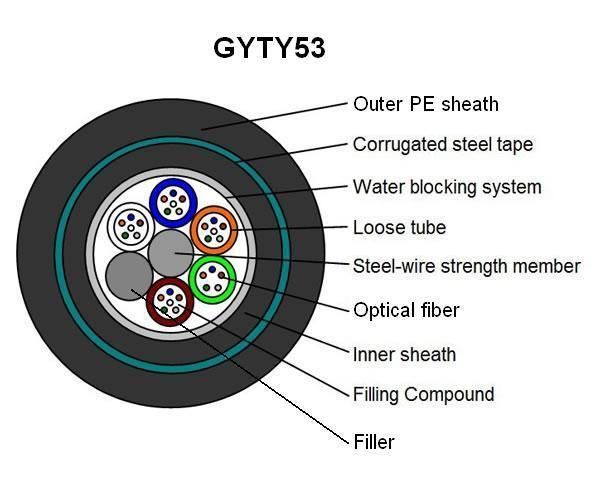

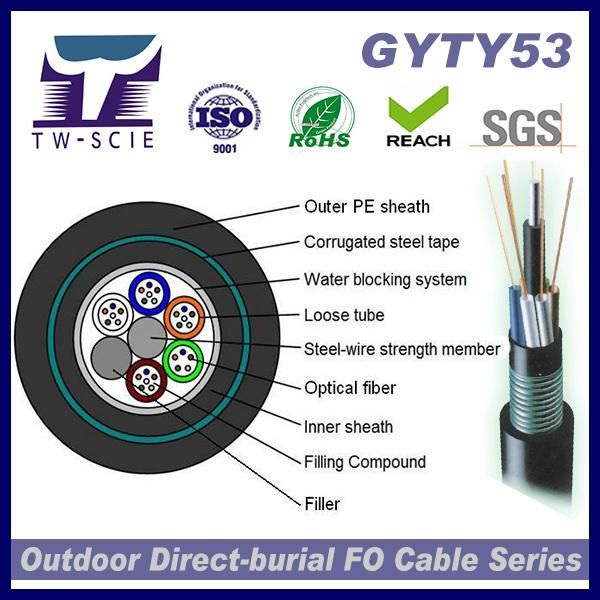

Standard color identification of fiberDescription1.Fiber amount 8 12 24 2. Cable Diameter(MM) 11.5±0.2 3. Cable Weight(KG) 126 4. Central Strength member -Material Steel wire -Diameter 1.4mm 5. Loose Tube -No. Of loose tube 2 -Material PBT -Outer diameter 1.6 mm -Thickness 0.3mm -Type of filling compound Jelly 6. Filler -Material PP -Outer diameter 1.6mm -No. of fillers 3 7. Tube Assembly -Tube Layout 1+5 -Stranding type SZ 8. Core wrap -Material Polyester tape 8. Water-blocking system -Material Filling compound 10.Inner sheath -Material PE -Thickness 1.0mm±0.2mm 9. Armour -Material Steel Tape -Thickness 0.22mm -Coating material Plastic -Coating thickness 0.1mm 10. Outer Sheath -Material PE -Thickness 1.8mm±0.2mm 11. Sheath marking -Type of marking Laser printing

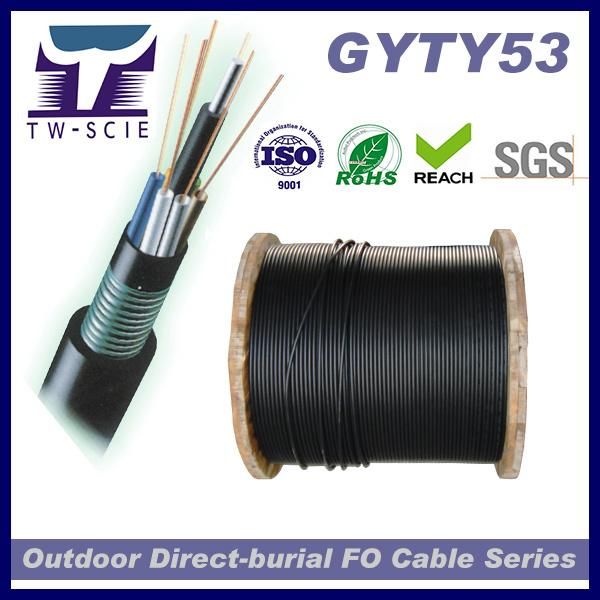

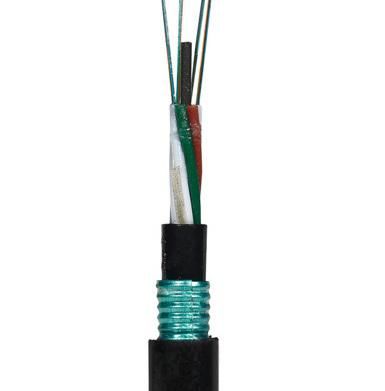

More Pictures:
Company View:
For more details please feel free to contact me. Any of your inquiry will reply within 24hrs.
