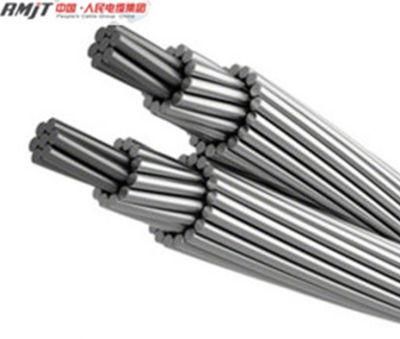

A2/S3a Aluminum Alloy Conductor Steel Reinforced Aacsr to IEC Standard
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum Alloy and Steel Wire
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：AACSR
- Material Shape：Round Wire
- Range of Application：Power Transmission
- Certification：ISO9001, CE, CCC
- Brand：Rmjt
- Area：10-1000mm2
- Middle Core Material：Steel Wire

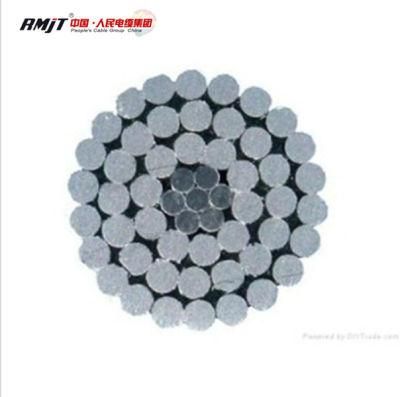

- Construction：6,1, 26,7, 84,19
- Factory Area：300000square Meters
- Company Nature：Manufacturer
- Sample：Free Sample
- Quality of Products：High Quality
- Transport Package：Wooden Drum or Steel Wooden Drum
- Specification：ASTM BS DIN IEC
- Trademark：RMJT
- Origin：Henan, China
- HS Code：7614100000
- Production Capacity：50000km,Month
Description
Code NumberArea Number of wires Wire diam Diameter Linear mass Alum, Steel Total Al St. Alum. Steel Core Cond. mm2 mm2 mm2 mm mm mm mm kg/km 16 18.4 3.07 21.5 6 1 1.98 1.98 1.98 5.93 74.4 25 28.8 4.8 33.6 6 1 2.47 2.47 2.47 7.41 116.2 40 46 7.67 53.7 6 1 3.13 3.13 3.13 9.38 185.9 63 72.5 12.1 84.6 6 1 3.92 3.92 3.92 11.8 292.8 400 115 6.39 121 18 1 2.85 2.85 2.85 14.3 366.4 425 144 7.99 152 18 1 3.19 3.19 3.19 16 458.0 425 144 23.4 167 26 7 2.65 2.06 6.19 16.8 579.9 160 184 10.2 194 18 1 3.61 3.61 3.61 18 586.2 160 184 30 214 26 7 3 2.34 7.01 19 742.3 200 230 12.8 243 18 1 4.04 4.04 4.04 20.2 732.8 200 230 37.5 268 26 7 3.36 2.61 7.83 21.3 927.9 250 288 28.3 316 22 7 4.08 2.27 6.8 23.1 1013.5 250 288 46.9 335 26 7 3.75 2.92 8.76 23.8 1159.8 315 363 25.1 388 45 7 3.2 2.14 6.41 25.6 1196.5 315 363 59 422 26 7 4.21 3.28 9.83 26.7 1461.4 400 460 31.8 492 45 7 3.61 2.41 7.22 28.9 1519.4 400 460 59.7 520 54 7 3.29 3.29 9.88 29.7 1938.3 450 518 35.8 554 45 7 3.83 2.55 7.66 30.6 1709.0 450 518 67.1 585 54 7 3.49 3.49 10.5 31.5 1955.6 500 575 39.8 615 45 7 4.04 2.69 8.07 32.3 1899.3 500 575 74.6 650 54 7 3.68 3.68 11.1 33.2 2172.9 560 645 44.6 689 45 7 4.27 2.85 8.54 34.2 2127.2 560 645 81.6 726 54 19 3.9 2.34 11.7 35.1 2420.9 630 725 31.3 756 72 7 3.58 2.39 7.16 35.8 2248.0 630 725 91.8 817 54 19 4.13 2.48 12.4 37.2 2723.5 710 817 35.3 852 72 7 3.8 2.53 7.6 38 2533.4 710 817 104 921 54 19 4.39 2.63 13.2 39.5 3069.4 800 921 39.8 961 72 7 4.04 2.69 8.07 40.4 2854.6 800 921 76.7 997 84 7 3.74 3.74 11.2 41.1 3145.1 900 1036 44.8 1081 72 7 4.28 2.85 8.56 42.8 3211.4 900 1036 86.3 1122 84 7 3.96 3.93 11.9 43.6 3538.3 1000 1151 93.7 1245 84 19 4.18 2.51 12.5 45.9 3916.8 1120 1289 105 1394 84 19 4.42 2.65 13.3 48.6 4386.8
IEC 61089 Characteristics of A2/S3A ConductorsCode NumberSteel ratio Area Number of wires Wire diam Diameter Linear mass Alum, Steel Total Al St. Alum. Steel Core Cond. % mm2 mm2 mm2 mm mm mm mm kg/km 16 17 18.4 3.07 21.5 6 1 1.98 1.98 1.98 5.93 74.4 25 17 28.8 4.8 33.6 6 1 2.47 2.47 2.47 7.41 116.2 40 17 46 7.67 53.7 6 1 3.13 3.13 3.13 9.38 185.9 63 17 72.5 12.1 84.6 6 1 3.92 3.92 3.92 11.8 292.8 100 6 115 6.39 121 18 1 2.85 2.85 2.85 14.3 366.4 125 6 144 7.99 152 18 1 3.19 3.19 3.19 16 458.0 125 16 144 23.4 167 26 7 2.65 2.06 6.19 16.8 579.9 160 6 184 10.2 194 18 1 3.61 3.61 3.61 18 586.2 160 16 184 30 214 26 7 3.00 2.34 7.01 19 742.3 200 6 230 12.8 243 18 1 4.04 4.04 4.04 20.2 732.8 200 16 230 37.5 268 26 7 3.36 2.61 7.83 21.3 927.9 250 10 288 28.3 316 22 7 4.08 2.27 6.8 23.1 1013.5 250 16 288 46.9 335 26 7 3.75 2.92 8.76 23.8 1159.8 315 7 363 25.1 388 45 7 3.20 2.14 6.41 25.6 1196.5 315 16 363 59 422 26 7 4.21 3.28 9.83 26.7 1461.4 400 7 460 31.8 492 45 7 3.61 2.41 7.22 28.9 1519.4 400 13 460 59.7 520 54 7 3.29 3.29 9.88 29.7 1738.3 450 7 518 35.8 554 45 7 3.83 2.55 7.66 30.6 1709.0 450 13 518 67.1 585 54 7 3.49 3.49 10.5 31.5 1955.6 500 7 575 39.8 615 45 7 4.04 2.69 8.07 32.3 1899.3 500 13 575 74.6 650 54 7 3.68 3.68 11.1 33.2 2172.9 560 7 645 44.6 689 45 7 4.27 2.85 8.54 34.2 2127.2 560 13 645 81.6 726 54 19 3.90 2.34 11.7 35.1 2420.9 630 4 725 31.3 756 72 7 3.58 2.39 7.16 35.8 2248.0 630 13 725 91.8 817 54 19 4.13 2.48 12.4 37.2 2723.5 710 4 817 35.3 852 72 7 3.80 2.53 7.6 38 2533.4 710 13 817 104 921 54 19 4.39 2.63 13.2 39.5 3069.4 800 4 921 39.8 961 72 7 4.04 2.69 8.07 40.4 2854.6 800 8 921 76.7 997 84 7 3.74 3.74 11.2 41.1 3145.1 900 4 1036 44.8 1081 72 7 4.28 2.85 8.56 42.8 3211.4 900 8 1036 86.3 1122 84 7 3.96 3.96 11.9 43.6 3538.3 1000 8 1151 93.7 1245 84 19 4.18 2.51 12.5 45.9 3916.8 1120 8 1289 105 1394 84 19 4.42 2.65 13.3 48.6 4386.8

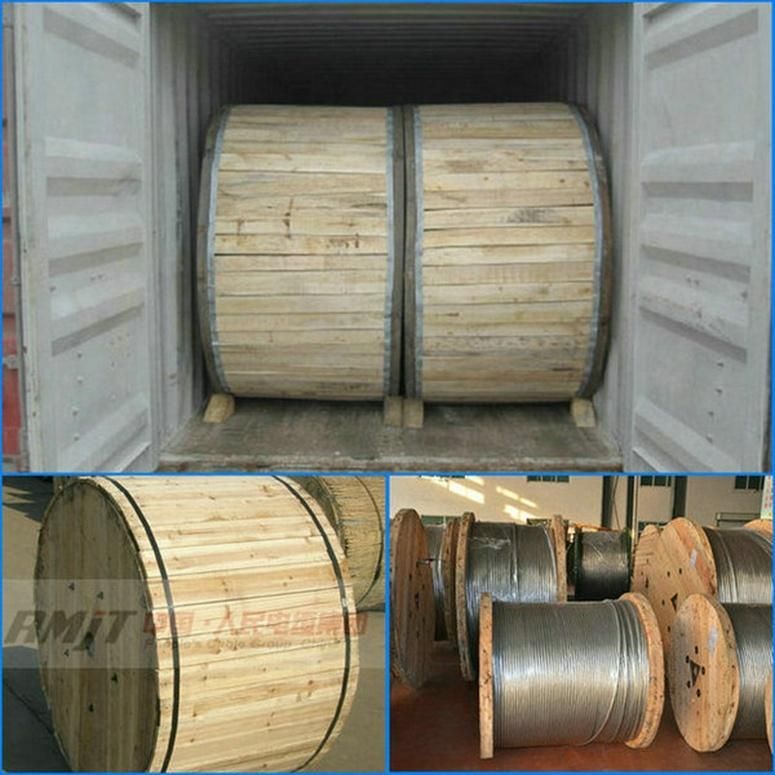

5.Package
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
6.About us
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than USD 10 million , with total 500 staff members, 65 of which are professional and technical experts.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win relationship!
9. FAQ
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2)How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3)How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
(4)What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country?
10. Contact us
People's Cable Group Co.,Ltd
Factory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
