Overhead Stranded A3/S3a Aluminum Alloy Conductor Aacsr
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum Alloy and Steel Wire
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：AACSR
- Material Shape：Round Wire
- Range of Application：Power Transmission
- Certification：ISO9001, CCC
- Brand：Rmjt
- Area：10-1000mm2
- Construction：6,1, 26,7, 84,19
- Standard：ASTM B711,DIN 48206,IEC61089
- Number of Wires：7-91
- Company Nature：Manufacturer
- Factory Area：300000 Square Meters
- Sample：Free Sample
- Quality of Products：High Quality
- Transport Package：Wooden Drum or Steel Wooden Drum
- Specification：ASTM BS DIN IEC
- Trademark：RMJT
- Origin：Henan, China
- HS Code：7614100000
- Production Capacity：50000km,Month
Description
Code NumberSteel ratio Area Number of wires Wire diam D.C. resistance Alum, Steel Total Al St. Alum. Steel % mm2 mm2 mm2 mm mm Ohm/km 16 17 18.6 3.1 21.7 6 1 1.99 1.99 1.7934 25 17 29 4.84 33.9 6 1 2.48 2.48 0.1478 40 17 46.5 7.75 54.2 6 1 3.14 3.14 0.7174 63 17 73.2 12.2 85.4 6 1 3.94 3.94 0.4555 100 6 116 6.46 123 18 1 2.87 2.87 0.288 125 6 145 8.07 153 18 1 3.21 3.21 0.2304 125 16 145 23.7 169 26 7 2.67 2.07 0.231 160 6 186 10.3 196 18 1 3.63 3.63 0.18 160 16 186 30.3 216 26 7 3.02 2.35 0.1805 200 6 232 12.9 245 18 1 4.05 4.05 0.144 200 16 232 37.8 270 26 7 3.37 2.62 0.1444 250 10 290 28.5 319 22 7 4.10 2.28 0.1154 250 16 290 47.3 338 26 7 3.77 2.93 0.1155 315 7 366 25.3 391 45 7 3.22 2.15 0.091 7 315 16 366 59.6 426 26 7 4.23 3.29 0.0917 400 7 465 32.1 497 45 7 3.63 2.42 0.0722 400 13 465 60.2 525 54 7 3.31 3.31 0.0723 450 7 523 36.1 559 45 7 3.85 2.56 0.0642 450 13 523 67.8 591 54 7 3.51 3.51 0.0643 500 7 581 40.2 621 45 7 4.05 2.70 0.0578 500 13 581 75.3 656 54 7 3.70 3.70 0.0578 560 7 651 45 696 45 7 4.29 2.86 0.0516 560 13 651 82.4 733 54 19 3.92 2.35 0.0516 630 4 732 31.6 764 72 7 3.60 2.40 0.0459 630 13 732 92.7 825 54 19 4.15 2.49 0.0459 710 4 825 35.6 861 72 7 3.82 2.55 0.0407 710 13 825 104 929 54 19 4.41 2.65 0.0407 800 4 930 40.2 970 72 7 4.05 2.70 0.0361 800 8 930 77.5 1007 84 7 3.75 3.75 0.0362 900 4 1046 45.2 1091 72 7 4.30 2.87 0.0321 900 8 1046 87.1 1133 84 7 3.98 3.98 0.0322 1000 8 1162 94.6 1257 84 19 4.20 2.52 0.0289 1120 8 1301 106 1407 84 19 4.44 2.66 0.0258
IEC 61089 Characteristics of A3/S3A ConductorCode NumberSteel ratio Area Number of wires Wire diam D.C. resistance Alum, Steel Total Al St. Alum. Steel % mm² mm² mm² mm mm Ohm/km 16 17 18.6 3.1 21.7 6 1 1.99 1.99 1.7934 25 17 29 4.84 23.9 6 1 2.48 2.48 1.1478 40 17 46.5 7.75 54.2 6 1 3.14 3.14 0.7174 63 17 73.2 12.2 85.4 6 1 3.94 3.94 0.4555 100 6 116 6.46 123 18 1 2.87 2.87 0.288 125 6 145 8.07 153 18 1 3.21 3.21 0.2304 125 16 145 23.7 169 26 7 2.67 2.07 0.18 160 6 186 10.3 196 18 1 3.63 3.63 0.1805 160 16 186 30.3 216 26 7 3.02 2.35 0.144 200 6 232 12.9 245 8 1 4.05 4.05 0.1444 200 16 232 37.8 270 26 7 3.37 2.62 0.1154 250 10 290 28.5 319 22 7 4.10 2.28 0.1155 250 16 290 47.3 338 26 7 3.77 2.93 0.0917 315 7 366 25.3 391 45 7 3.22 2.15 0.0917 315 16 366 59.6 426 26 7 4.23 3.29 0.0722 400 7 465 32.1 497 45 7 3.63 2.42 0.0723 400 13 465 60.2 525 54 7 3.31 3.31 0.0642 450 7 523 36.1 559 45 7 3.8 5 2.56 0.0643 450 13 523 67.8 591 54 7 3.51 3.51 0.0578 500 7 581 40.2 621 45 7 4.05 2.70 0.0578 500 13 581 75.3 656 54 7 3.70 3.70 0.0516 560 7 651 45 696 45 7 4.29 2.86 0.0516 560 13 651 82.4 733 54 19 3.92 2.35 0.0459 630 4 732 31.6 764 72 7 3.60 2.40 0.0459 630 13 732 92.7 825 54 19 4.15 2.49 0.0407 710 4 825 35.6 861 72 7 3.82 2.55 0.0407 710 13 825 104 929 54 19 4.41 2.65 0.0361 800 4 930 40.2 970 72 7 4.05 2.70 0.0362 800 8 930 77.5 1007 84 7 3.75 3.75 0.0321 900 4 1046 45.2 1091 72 7 4.30 2.87 0.0322 900 8 1046 87.1 1133 84 7 3.98 3.98 0.0289 1000 8 1162 94.6 1257 84 19 4.20 2.52 0.0289 1120 8 1301 106 1407 84 19 4.44 2.66 0.0258

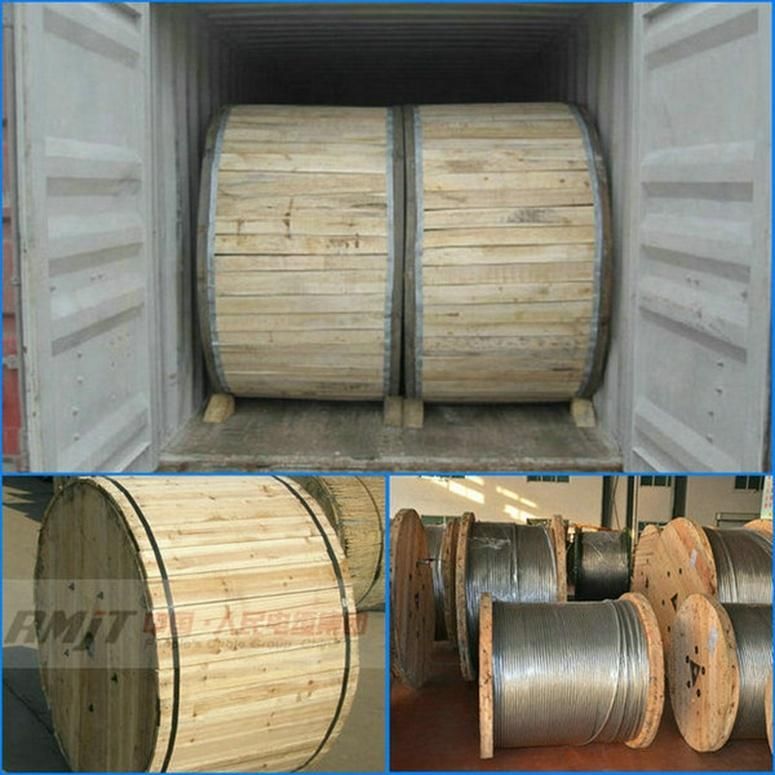

5.Package
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
6.About us
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than USD 10 million , with total 500 staff members, 65 of which are professional and technical experts.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win relationship!
9. FAQ
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2)How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3)How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
(4)What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
10. Contact Us
People's Cable Group Co.,Ltd
Factory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.
If you have any questions, please contact me, I will reply you as soon as possible.
Welcome your inquiry.
